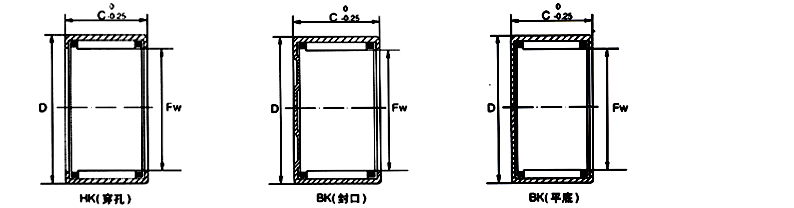

| BK HK |
|
上海川代轴承机械有限公司 新闻动态 2024-5-21
|
| 轴径 Shaft Diameter |
轴承型号 Bearing Designation |
重量 Mass 近似 Approx |
外形尺寸 Boundary Dimensions |
基本额定负荷 Basic Load Rating |
极限转速 Limiting Speed |
| 现行的 Current |
原型号 Oreginal Code |
Fw |
D |
C |
动 Cr Dynamic |
静Cor Static |
油润滑 Oil |
| mm |
g |
mm |
N |
rpm |
| 4 |
HK0408TN |
37941/4 |
1.6 |
4 |
8 |
8 |
1540 |
1070 |
40000 |
| BK0408TN |
5941/4 |
1.8 |
4 |
8 |
8 |
1540 |
1070 |
40000 |
| 5 |
HK05*0.85*07 |
|
. |
5 |
8.5 |
7 |
|
. |
. |
| HK05*09*08 |
|
. |
5 |
9 |
8 |
2200 |
1790 |
36000 |
| HK0509 |
47941/5 |
2 |
5 |
9 |
9 |
2200 |
1790 |
36000 |
| BK0509 |
45941/5 |
2.1 |
5 |
9 |
9 |
2200 |
1790 |
36000 |
| 6 |
HK0607 |
27941/6 |
1.8 |
6 |
10 |
7 |
1600 |
1400 |
30000 |
| HK0608 |
37941/6 |
2.1 |
6 |
10 |
8 |
1830 |
1550 |
32000 |
| BK0608 |
35941/6 |
2.2 |
6 |
10 |
8 |
1830 |
1550 |
32000 |
| HK0609 |
47941/6 |
2.2 |
6 |
10 |
9 |
2650 |
2400 |
3000 |
| BK0609 |
45941/6 |
2.6 |
6 |
10 |
9 |
2650 |
2400 |
3000 |
| HK0611 |
|
2.3 |
6 |
10 |
11 |
1700 |
1500 |
29000 |
| HK06*12*08 |
3941/6 |
2.5 |
6 |
12 |
8 |
2230 |
2010 |
33000 |
| 7 |
HK0708 |
|
. |
7 |
11 |
8 |
2800 |
2150 |
27000 |
| HK0709 |
47941/9 |
2.3 |
7 |
11 |
9 |
2800 |
2150 |
27000 |
| BK0709 |
45941/9 |
2.9 |
7 |
11 |
9 |
2800 |
2150 |
27000 |
| HK07*12*08 |
|
2.2 |
7 |
12 |
8 |
3300 |
3220 |
37000 |
| HK07*12*09 |
|
2.4 |
7 |
12 |
9 |
3400 |
3150 |
37000 |
| 8 |
HK0808 |
37941/8 |
2.7 |
8 |
12 |
8 |
2550 |
2400 |
21000 |
| BK0808 |
35941/8 |
3 |
8 |
12 |
8 |
2550 |
2400 |
21000 |
| HK0810 |
57941/8 |
3 |
8 |
12 |
10 |
3700 |
3450 |
21000 |
| BK0810 |
88941/8 |
3.4 |
8 |
12 |
10 |
3700 |
3450 |
21000 |
| HK08*14*10 |
27942/8 |
5.35 |
8 |
14 |
10 |
3800 |
3950 |
25000 |
| BK08*14*10 |
25942/8 |
5.8 |
8 |
14 |
10 |
3800 |
3950 |
25000 |
| HK08*14*12 |
37942/8 |
6.6 |
8 |
14 |
12 |
4100 |
4320 |
25000 |
| 9 |
HK0908 |
37941/9 |
3 |
9 |
13 |
8 |
3650 |
4050 |
25000 |
| BK0908 |
35941/9 |
3.4 |
9 |
13 |
8 |
3650 |
4050 |
25000 |
| HK0910 |
57941/9 |
4 |
9 |
13 |
10 |
4050 |
4250 |
25000 |
| BK0910 |
55941/9 |
4.3 |
9 |
13 |
10 |
4050 |
4250 |
25000 |
| HK0911 |
|
4.1 |
9 |
13 |
11 |
4300 |
4700 |
25000 |
| HK0912 |
67941/9 |
4.6 |
9 |
13 |
12 |
5000 |
6000 |
25000 |
| BK0912 |
65941/9 |
4.9 |
9 |
13 |
12 |
5000 |
6000 |
25000 |
| HK09*15*10 |
27942/9 |
5.6 |
9 |
15 |
10 |
5300 |
6300 |
25000 |
| 10 |
HK10*13*08 |
|
3.5 |
10 |
13 |
8 |
4100 |
4800 |
20000 |
| HK1010 |
57941/10 |
4.1 |
10 |
14 |
10 |
3900 |
4800 |
19000 |
| BK1010 |
55941/10 |
4.3 |
10 |
14 |
10 |
3900 |
4800 |
19000 |
| HK1012 |
67941/10 |
4.8 |
10 |
14 |
12 |
5000 |
6300 |
19000 |
| BK1012 |
65941/10 |
5 |
10 |
14 |
12 |
5000 |
6300 |
19000 |
| HK1015 |
|
6 |
10 |
14 |
15 |
6700 |
7800 |
19000 |
| BK1015 |
|
6.2 |
10 |
14 |
15 |
6700 |
7800 |
19000 |
| HK10*15*15 |
644900 |
6.5 |
10 |
15 |
15 |
6800 |
8800 |
18000 |
| HK10*16*10 |
|
6.5 |
10 |
16 |
10 |
6800 |
8800 |
18000 |
| 轴径 Shaft Diameter |
轴承型号 Bearing Designation |
重量 Mass 近似 Approx |
外形尺寸 Boundary Dimensions |
基本额定负荷 Basic Load Rating |
极限转速 Limiting Speed |
| 现行的 Current |
原型号 Oreginal Code |
Fw |
D |
C |
动 Cr Dynamic |
静Cor Static |
油润滑 Oil |
| mm |
g |
mm |
N |
rpm |
| 10 |
BK10*16*10 |
. |
6.8 |
10 |
16 |
10 |
6800 |
8800 |
18000 |
| HK10*16*12 |
DB1012 |
7.5 |
10 |
16 |
12 |
6800 |
8800 |
18000 |
| HK10*16*15 |
7942/10 |
11 |
10 |
16 |
15 |
6800 |
8800 |
18000 |
| HK10*16*15 |
. |
11.5 |
10 |
17 |
15 |
7200 |
8000 |
19000 |
| HK10*16*12 |
. |
8.5 |
10 |
18 |
12 |
7200 |
8000 |
19000 |
| 12 |
HK1208 |
37941/12 |
3.3 |
12 |
16 |
8 |
7200 |
8000 |
19000 |
| HK1210 |
57941/12 |
4.6 |
12 |
16 |
10 |
4150 |
5800 |
19000 |
| BK1210 |
55941/12 |
5.2 |
12 |
16 |
10 |
4150 |
5800 |
19000 |
| HK1212 |
67941/12 |
5.6 |
12 |
16 |
12 |
3800 |
5100 |
15000 |
| BK1212 |
65941/12 |
6.2 |
12 |
16 |
12 |
3800 |
5100 |
15000 |
| HK12*17*12 |
7941/12 |
7.5 |
12 |
17 |
12 |
5100 |
7000 |
15000 |
| HK12*17*15 |
7942/12 |
9.5 |
12 |
17 |
15 |
5100 |
7000 |
15000 |
| HK12*17*18 |
7943/12 |
11 |
12 |
17 |
18 |
5100 |
700 |
15000 |
| HK12*18*12 |
37942/12 |
9.1 |
12 |
18 |
12 |
5500 |
6300 |
17000 |
| BK12*18*12 |
35942/12K |
10.3 |
12 |
18 |
12 |
5500 |
6300 |
17000 |
| HK12*18*14 |
67942/12 |
10.6 |
12 |
18 |
14 |
6500 |
6300 |
15000 |
| HK12*19*12 |
. |
10 |
12 |
19 |
12 |
6800 |
7400 |
15000 |
| 13 |
HK1311 |
. |
8.5 |
13 |
19 |
11 |
6300 |
6300 |
14000 |
| HK1312 |
. |
8.9 |
13 |
19 |
12 |
6200 |
7100 |
17000 |
| BK1312 |
. |
11.2 |
13 |
19 |
12 |
6200 |
7100 |
17000 |
| 13.5 |
HK13.5*19*12 |
. |
. |
13.5 |
19 |
12 |
. |
. |
16000 |
| HK13.5*20*12 |
7941/13.5 |
10.8 |
13.5 |
20 |
12 |
6250 |
7590 |
16000 |
| 14 |
HK1410 |
27941/14 |
8.3 |
14 |
20 |
10 |
6700 |
7000 |
16000 |
| BK1410 |
35941/14 |
12.1 |
14 |
20 |
10 |
6700 |
7000 |
16000 |
| HK1412 |
37941/14 |
10.5 |
14 |
20 |
12 |
6800 |
7500 |
16000 |
| HK1416 |
57941/14 |
13.9 |
14 |
20 |
16 |
7300 |
9000 |
14000 |
| HK1418 |
. |
. |
14 |
20 |
. |
. |
. |
14000 |
| 15 |
HK15*20*12 |
7941/15 |
8.4 |
15
| . |
. |
. |
. |
. | |
