| KM-M5、KM-M6、KM-M8、KM-M10、KM-M12、KM-M14、KM-M16、KM-M18、KM-M20关节 |
|
上海川代轴承机械有限公司 新闻动态 2026-6-5
|
|
|
|
|

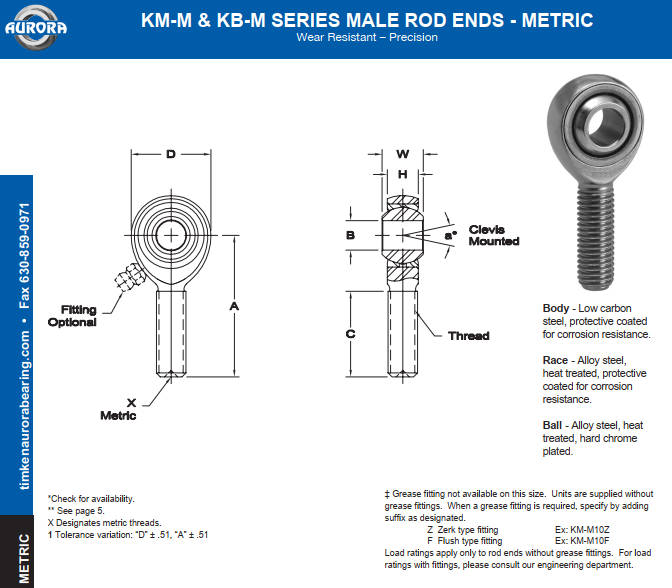

ROD END NO. |
DIMENSIONS IN MILLIMETERS |
a°
Misalign. Angle |
Ultimate
Radial
Static
Load
Capacity
Newtons |
Approx.
Brg. Wt
Grams |
|
|
Right Hand |
Left Hand |
B
+ .065
- .013 |
W
± .13 |
H
± .13 |
A
± .40 |
D
± .38 |
Ball Dia.
Ref. |
C
± 1.00 |
Thread |
|
|
a1 |
a3 |
a4 |
|
|
‡KM-M3 |
‡KB-M3 |
3 |
6 |
4.75 |
27 |
12.50 |
7.93 |
15 |
M3 X 0.5 |
13 |
25 |
62 |
1,775 |
7 |
|
|
KM-M5 |
KB-M5 |
5 |
8 |
6.25 |
33 |
16.00 |
11.10 |
20 |
M5 X 0.8 |
14 |
24 |
58 |
5,168 |
13 |
|
|
KM-M6 |
KB-M6 |
6 |
9 |
7.00 |
36 |
19.00 |
12.70 |
22 |
M6 X 1.0 |
13 |
23 |
57 |
7,296 |
18 |
|
|
KMF-M8 |
KBF-M8 |
8 |
12 |
8.75 |
42 |
22.25 |
15.88 |
25 |
M8 X 1.0 |
18 |
31 |
53 |
13,591 |
31 |
|
|
KM-M8 |
KB-M8 |
8 |
12 |
8.75 |
42 |
22.25 |
15.88 |
25 |
M8 X 1.25 |
18 |
31 |
53 |
13,591 |
31 |
|
|
KMF-M10 |
KBF-M10 |
10 |
14 |
10.50 |
48 |
27.00 |
19.05 |
29 |
M10 X 1.25 |
17 |
28 |
50 |
20,603 |
68 |
|
|
KM-M10 |
KB-M10 |
10 |
14 |
10.50 |
48 |
27.00 |
19.05 |
29 |
M10 X 1.5 |
17 |
28 |
50 |
20,603 |
68 |
|
|
KMF-M12 |
KBF-M12 |
12 |
16 |
12.00 |
54 |
30.00 |
22.23 |
33 |
M12 X 1.25 |
17 |
27 |
49 |
18,215 |
78 |
|
|
KM-M12 |
KB-M12 |
12 |
16 |
12.00 |
54 |
30.00 |
22.23 |
33 |
M12 X 1.75 |
17 |
27 |
49 |
18,215 |
78 |
|
|
KMF-M14 |
KBF-M14 |
14 |
19 |
13.50 |
60 |
34.75 |
25.40 |
36 |
M14 X 1.5 |
21 |
33 |
49 |
29,840 |
118 |
|
|
KM-M14 |
KB-M14 |
14 |
19 |
13.50 |
60 |
34.75 |
25.40 |
36 |
M14 X 2.0 |
21 |
33 |
49 |
29,840 |
118 |
|
|
KMF-M16 |
KBF-M16 |
16 |
21 |
14.25 |
66 |
38.00 |
28.58 |
40 |
M16 X 1.5 |
23 |
35 |
52 |
32,223 |
173 |
|
|
KM-M16 |
KB-M16 |
16 |
21 |
14.25 |
66 |
38.00 |
28.58 |
40 |
M16 X 2.0 |
23 |
35 |
52 |
32,223 |
173 |
|
|
KM-M18 |
KB-M18 |
18 |
23 |
16.25 |
72 |
42.00 |
31.75 |
44 |
M18 X 1.5 |
21 |
31 |
49 |
41,303 |
260 |
|
|
KMF-M20 |
KBF-M20 |
20 |
25 |
18.00 |
78 |
46.00 |
34.93 |
47 |
M20 X 1.5 |
20 |
29 |
48 |
50,952 |
290 |
|
|
KM-M20 |
KB-M20 |
20 |
25 |
18.00 |
78 |
46.00 |
34.93 |
47 |
M20 X 2.5 |
20 |
29 |
48 |
50,952 |
290 |
|
|
KM-M22 |
KB-M22 |
22 |
28 |
19.50 |
86 |
50.00 |
38.10 |
51 |
M22 X 1.5 |
22 |
33 |
48 |
56,238 |
315 |
|
|
KM-M25 |
KB-M25 |
25 |
31 |
22.00 |
95 |
60.00 |
42.86 |
57 |
M24 X 2.0 |
19 |
31 |
47 |
104,435 |
500 |
|
|
KM-M30 |
KB-M30 |
30 |
37 |
25.40 |
104.78 |
69.85 |
50.80 |
60 |
M30 X 2.0 |
21 |
33 |
47 |
147,238 |
1,090 |
| |
KM-M5、KM-M6、KM-M8、KM-M10、KM-M12、KM-M14、KM-M16、KM-M18、KM-M20关节现货供应，如有需要请及时联系我们。上海川代轴承机械有限公司同时销售
