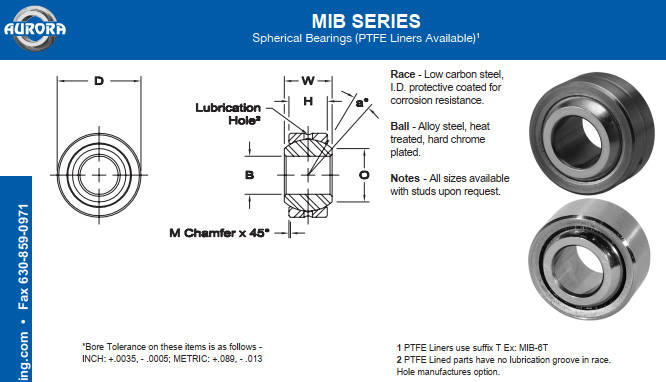

| MIB-2、MIB-3、MIB-4、MIB-5、MIB-6、MIB-7、MIB-8、MIB-10、MIB-12关节 |
|
上海川代轴承机械有限公司 新闻动态 2026-6-2
|
 |
|
BEARING
NO. |
DIMENSIONS IN INCHES |
a°
Misalign.
Angle |
Radial
Static
Limit
Load
Capacity
Lbs. |
Approx.
Brg.
Wt.
Lbs. |
|
B
+ .0015 |
D
+ .0000 |
H
± .005 |
W
+ .000 |
O
Flat Dia. |
M
Chamfer |
Ball Dia.
Ref. |
|
- .0005 |
- .0007 |
|
- .005 |
Ref. |
Ref. |
|
|
|
|
|
MIB-2 |
.1250 |
.4062 |
.187 |
.250 |
.187 |
.025 |
.312 |
17 |
2,533 |
.02 |
|
MIB-3 |
.1900 |
.5312 |
.250 |
.312 |
.307 |
.020 |
.437 |
10.5 |
4,370 |
.02 |
|
MIB-4 |
.2500 |
.6094 |
.281 |
.375 |
.331 |
.020 |
.500 |
14.5 |
5,620 |
.02 |
|
MIB-5 |
.3125 |
.7500 |
.344 |
.437 |
.448 |
.020 |
.625 |
11 |
8,600 |
.04 |
|
MIB-6 |
.3750 |
.8437 |
.406 |
.500 |
.516 |
.020 |
.719 |
9.5 |
11,677 |
.06 |
|
MIB-7 |
.4375 |
1.0000 |
.437 |
.562 |
.587 |
.020 |
.812 |
11 |
14,194 |
.08 |
|
MIB-8 |
.5000 |
1.0937 |
.500 |
.625 |
.699 |
.020 |
.937 |
9.5 |
18,740 |
.11 |
|
MIB-10 |
.6250 |
1.3125 |
.562 |
.750 |
.839 |
.030 |
1.125 |
12 |
25,290 |
.17 |
|
MIB-12 |
.7500 |
1.5000 |
.687 |
.875 |
.978 |
.030 |
1.312 |
10 |
32,448 |
.25 |
|
MIB-14 |
.8750 |
1.6250 |
.750 |
.875 |
1.061 |
.035 |
1.375 |
6 |
39,653 |
.35 |
|
MIB-16* |
1.0000 |
2.1250 |
1.000 |
1.375 |
1.275 |
.060 |
1.875 |
15 |
60,000 |
.79 |
|
BEARING
NO. |
DIMENSIONS IN MILLIMETERS |
a°
Misalign.
Angle |
Radial
Static
Limit
Load
Capacity
Newtons |
Approx.
Brg.
Wt.
Grams |
|
B
+ .038 |
D
+ .000 |
H
± .13 |
W
+ .00 |
O
Flat Dia. |
M
Chamfer |
Ball Dia.
Ref. |
|
- .013 |
- .013 |
|
- .13 |
Ref. |
Ref. |
|
|
|
|
|
MIB-2 |
3.175 |
10.31 |
4.74 |
6.35 |
4.74 |
.63 |
7.92 |
17 |
11,266 |
7 |
|
MIB-3 |
4.826 |
13.49 |
6.35 |
7.92 |
7.79 |
.50 |
11.10 |
10.5 |
19,438 |
7 |
|
MIB-4 |
6.350 |
15.47 |
7.13 |
9.52 |
8.40 |
.50 |
12.70 |
14.5 |
24,998 |
10 |
|
MIB-5 |
7.938 |
19.05 |
8.73 |
11.10 |
11.37 |
.50 |
15.87 |
11 |
38,253 |
18 |
|
MIB-6 |
9.525 |
21.43 |
10.31 |
12.70 |
13.10 |
.50 |
18.26 |
9.5 |
51,939 |
27 |
|
MIB-7 |
11.113 |
25.40 |
11.10 |
14.27 |
14.91 |
.50 |
20.62 |
11 |
63,135 |
36 |
|
MIB-8 |
12.700 |
27.78 |
12.70 |
15.87 |
17.75 |
.50 |
23.80 |
9.5 |
83,356 |
50 |
|
MIB-10 |
15.875 |
33.33 |
14.27 |
19.05 |
21.31 |
.76 |
28.57 |
12 |
112,490 |
75 |
|
MIB-12 |
19.050 |
38.10 |
17.45 |
22.23 |
24.84 |
.76 |
33.32 |
10 |
144,329 |
114 |
|
MIB-14 |
22.225 |
41.28 |
19.05 |
22.23 |
26.95 |
.89 |
34.93 |
6 |
176,637 |
159 |
|
MIB-16* |
25.400 |
53.97 |
25.40 |
34.92 |
32.38 |
1.52 |
47.62 |
15 |
266,880 |
358 | |
