| MM-20T、MM-24T、MM-32T、AM-20T、AM-24T、AM-32T关节 |
|
上海川代轴承机械有限公司 新闻动态 2026-5-28
|
 |
|

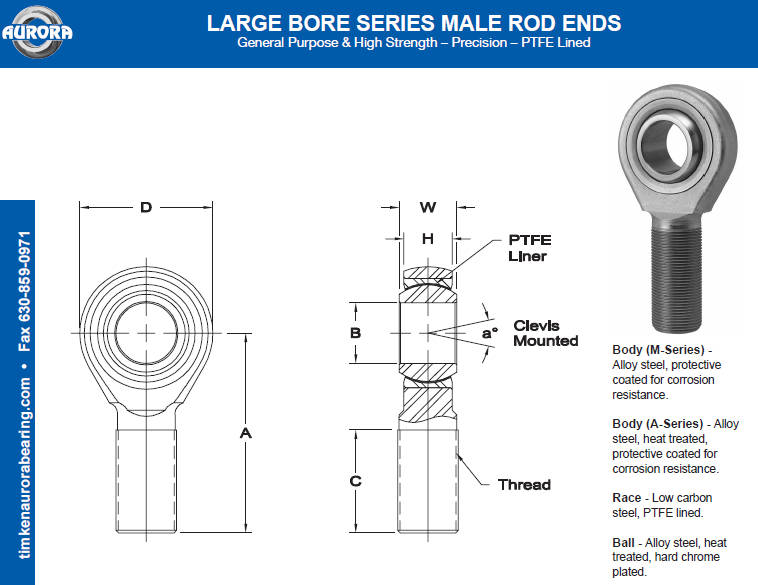

ROD
END NO. |
DIMENSIONS
IN INCHES |
a°
Misalign
. Angle |
Ultimate
Radial
Static
Load
Capacity
Lbs. |
Approx.
Brg. Wt.
Lbs. |
|
Right
Hand |
Left
Hand |
B
+ .0015
- .0005 |
W
± .005 |
H
± .020 |
A
± .040 |
D
± .030 |
Ball Dia.
Ref. |
C
+ .062
- .031 |
Thread
UNF-3A |
|
MM-20T |
MB-20T |
1.2500 |
1.187 |
1.000 |
4.125 |
2.750 |
2.000 |
2.125 |
1 1/4-12 |
9.0 |
31,480 |
2.41 |
|
MM-24T |
MB-24T |
1.5000 |
1.375 |
1.125 |
5.375 |
3.500 |
2.312 |
3.000 |
1 1/2-12 |
8.75 |
66,264 |
4.75 |
|
MM-32T |
MB-32T |
2.0000 |
1.750 |
1.437 |
8.000 |
5.010 |
2.937 |
4.500 |
2-121 |
7.5 |
163,634 |
14.25 |
|
ROD
END NO. |
DIMENSIONS
IN INCHES |
a°
Misalign
. Angle |
Ultimate
Radial
Static
Load
Capacity
Lbs. |
Approx.
Brg. Wt.
Lbs. |
|
Right
Hand |
Left
Hand |
B
+ .0015
- .0005 |
W
± .005 |
H
± .020 |
A
± .040 |
D
± .030 |
Ball Dia
. Ref. |
C
+ .062
- .031 |
Thread
UNF-3A |
|
AM-20T |
AB-20T |
1.2500 |
1.187 |
1.000 |
4.125 |
2.750 |
2.000 |
2.125 |
1 1/4-12 |
9.0 |
65,047 |
2.41 |
|
AM-24T |
AB-24T |
1.5000 |
1.375 |
1.125 |
5.375 |
3.500 |
2.312 |
3.000 |
1 1/2-12 |
8.75 |
115,610 |
4.75 |
|
AM-32T |
AB-32T |
2.0000 |
1.750 |
1.437 |
8.000 |
5.010 |
2.937 |
4.500 |
2-121 |
7.5 |
280,740 |
14.25 |
|
MM-20T、MM-24T、MM-32T、AM-20T、AM-24T、AM-32T关节现货供应，如有需要请及时联系我们。上海川代轴承机械有限公司同时销售
