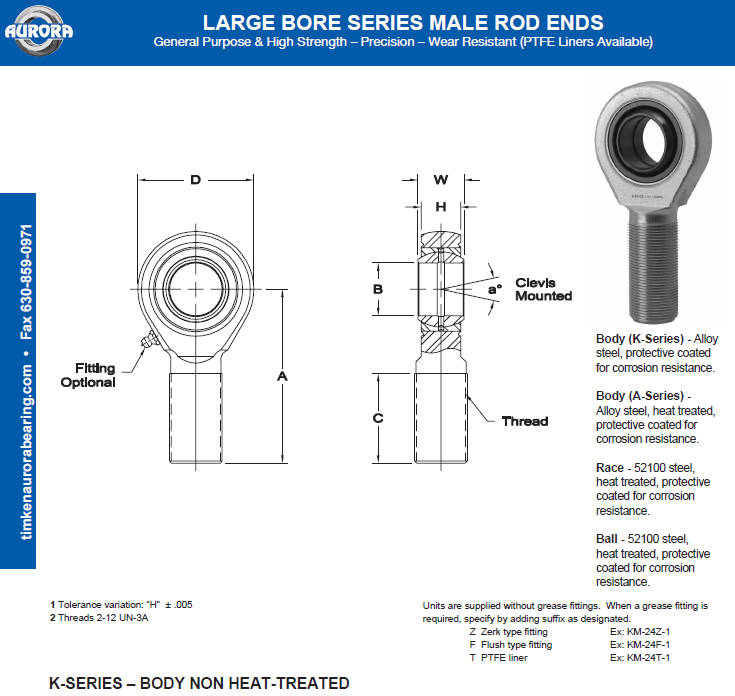

| KM-20-1、KM-24-1、KM-32-1 关节 |
|
上海川代轴承机械有限公司 新闻动态 2026-5-25
|
 |
|
ROD END NO. |
DIMENSIONS IN INCHES |
a°
Misalign.
Angle |
Ultimate
Radial
Static
Load
Capacity
Lbs. |
Approx.
Brg. Wt.
Lbs. |
|
Right
Hand |
Left
Hand |
B
+ .0000
- .0005 |
W
+ .000
- .005 |
H
± .020 |
A
± .040 |
D
± .030 |
Ball Dia.
Ref. |
C
+ .062
- .031 |
Thread
UNF-3A |
|
KM-20-1 |
KB-20-1 |
1.2500 |
1.093 |
.937 |
4.125 |
2.750 |
1.795 |
2.125 |
1 1/4-12 |
7.0 |
44,500 |
2.41 |
|
KM-24-1 |
KB-24-1 |
1.5000 |
1.312 |
1.125 |
5.375 |
3.500 |
2.155 |
3.000 |
1 1/2-12 |
6.5 |
64,770 |
4.75 |
|
KM-32-1 |
KB-32-1 |
2.0000 |
1.750 |
1.500 |
8.000 |
5.010 |
2.875 |
4.500 |
2-122 |
6.0 |
153,528 |
14.25 |
|
ROD END NO. |
DIMENSIONS IN INCHES |
a°
Misalign.
Angle |
Ultimate
Radial
Static
Load
Capacity
Lbs. |
Approx.
Brg. Wt.
Lbs. |
|
Right
Hand |
Left
Hand |
B
+ .0000
- .0005 |
W
+ .000
- .005 |
H
± .020 |
A
± .040 |
D
± .030 |
Ball Dia
. Ref. |
C
+ .062
- .031 |
Thread
UNF-3A |
|
AM-20-1 |
AB-20-1 |
1.2500 |
1.093 |
.937 |
4.125 |
2.750 |
1.795 |
2.125 |
1 1/4-12 |
7.0 |
79,728 |
2.41 |
|
XAM-20-1 |
XAB-20-1 |
1.2500 |
1.093 |
.937 |
4.125 |
2.750 |
1.795 |
2.250 |
1 1/2-12 |
7.0 |
79,728 |
2.63 |
|
AM-24-1 |
AB-24-1 |
1.5000 |
1.312 |
1.125 |
5.375 |
3.500 |
2.155 |
3.000 |
1 1/2-12 |
6.5 |
126,450 |
4.75 |
|
XAM-24-1 |
XAB-24-1 |
1.5000 |
1.312 |
1.125 |
5.375 |
3.500 |
2.155 |
3.000 |
1 3/4-12 |
6.5 |
126,450 |
6.06 |
|
AM-32-1 |
AB-32-1 |
2.0000 |
1.750 |
1.500 |
8.000 |
5.010 |
2.875 |
4.500 |
2-122 |
6.0 |
225,924 |
14.25 |
|
KM-20-1、KM-24-1、KM-32-1 关节现货供应，如有需要请及时联系我们。上海川代轴承机械有限公司同时销售
