| SW-3E、SW-4E、SW-5E、SW-6E、SW-7E、SW-8E、SW-10E、SW-12E关节 |
|
上海川代轴承机械有限公司 新闻动态 2026-5-25
|
 |
|

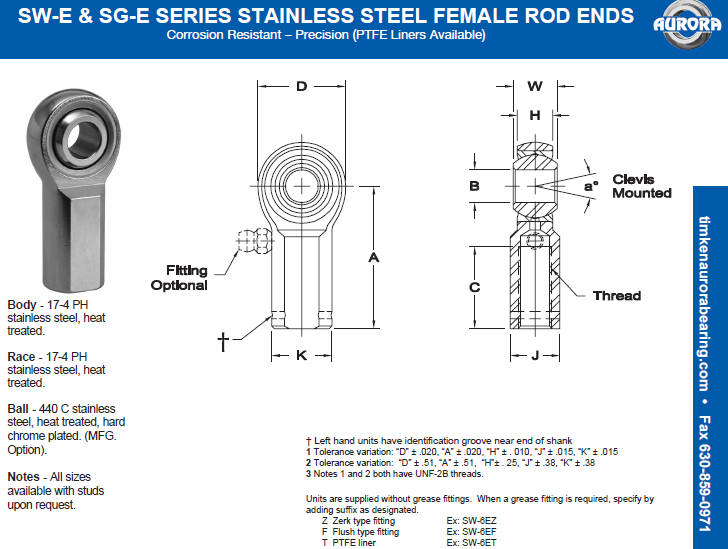

ROD END NO. |
DIMENSIONS IN INCHES |
a°
Misalign.
Angle |
Ultimate
Radial
Static
Load
Capacity
Lbs. |
Approx.
Brg. Wt
. Lbs. |
|
Right
Hand |
Left
Hand† |
B
+ .0015
-.0005 |
W
+ .000
- .005 |
H
± .005 |
A
± .015 |
D
± .010 |
K
± .010 |
J
± .010 |
Ball Dia
. Ref. |
C
+ .062
- .031 |
Thread
UNF-3B |
|
SW-3E |
SG-3E |
.1900 |
.312 |
.250 |
1.062 |
.625 |
.406 |
.312 |
.437 |
.562 |
10-32 |
13 |
2,895 |
.04 |
|
SW-4E |
SG-4E |
.2500 |
.375 |
.281 |
1.312 |
.750 |
.469 |
.375 |
.500 |
.750 |
1/4-28 |
16 |
4,795 |
.06 |
|
SW-5E |
SG-5E |
.3125 |
.437 |
.344 |
1.375 |
.875 |
.500 |
.437 |
.625 |
.750 |
5/16-24 |
14 |
5,929 |
.09 |
|
SW-6E |
SG-6E |
.3750 |
.500 |
.406 |
1.625 |
1.000 |
.687 |
.562 |
.719 |
.937 |
3/8-24 |
12 |
7,363 |
.15 |
|
SW-7E |
SG-7E |
.4375 |
.562 |
.437 |
1.812 |
1.125 |
.750 |
.625 |
.812 |
1.062 |
7/16-20 |
14 |
7,934 |
.20 |
|
SW-8E |
SG-8E |
.5000 |
.625 |
.500 |
2.125 |
1.312 |
.875 |
.750 |
.937 |
1.187 |
1/2-20 |
12 |
12,527 |
.33 |
|
SW-10E |
SG-10E |
.6250 |
.750 |
.562 |
2.500 |
1.500 |
1.000 |
.875 |
1.125 |
1.500 |
5/8-18 |
16 |
13,851 |
.48 |
|
SW-12E |
SG-12E |
.7500 |
.875 |
.687 |
2.875 |
1.750 |
1.125 |
1.000 |
1.312 |
1.750 |
3/4-16 |
14 |
21,664 |
.72 |
|
SW-16E |
SG-16E |
1.0000 |
1.375 |
1.000 |
4.125 |
2.750 |
1.625 |
1.500 |
1.875 |
2.125 |
1 1/4-12 |
17 |
61,333 |
2.13 |
|
ROD END NO. |
DIMENSIONS IN MILLIMETERS |
a°
Misalign
. Angle |
Ultimate
Radial
Static
Load
Capacity
Newtons |
Approx.
Brg. Wt.
Grams |
|
Right
Hand |
Left
Hand† |
B
+ .038
- .013 |
W
+ .00
- .13 |
H
± .13 |
A
± .38 |
D
± .25 |
K
± .25 |
J
± .25 |
Ball Dia
. Ref. |
C
+ 1.57
- .79 |
Thread
UNF-3B |
|
SW-3E |
SG-3E |
4.826 |
7.92 |
6.35 |
26.97 |
15.88 |
10.31 |
7.92 |
11.10 |
14.27 |
10-32 |
13 |
12,877 |
17 |
|
SW-4E |
SG-4E |
6.350 |
9.53 |
7.14 |
33.32 |
19.05 |
11.91 |
9.53 |
12.70 |
19.05 |
1/4-28 |
16 |
21,328 |
27 |
|
SW-5E |
SG-5E |
7.938 |
11.10 |
8.74 |
34.93 |
22.23 |
12.70 |
11.10 |
15.88 |
19.05 |
5/16-24 |
14 |
26,372 |
42 |
|
SW-6E |
SG-6E |
9.525 |
12.70 |
10.31 |
41.28 |
25.40 |
17.45 |
14.27 |
18.26 |
23.80 |
3/8-24 |
12 |
32,751 |
69 |
|
SW-7E |
SG-7E |
11.113 |
14.27 |
11.10 |
46.02 |
28.58 |
19.05 |
15.88 |
20.62 |
26.97 |
7/16-20 |
14 |
35,290 |
90 |
|
SW-8E |
SG-8E |
12.700 |
15.88 |
12.70 |
53.98 |
33.32 |
22.23 |
19.05 |
23.80 |
30.15 |
1/2-20 |
12 |
55,720 |
149 |
|
SW-10E |
SG-10E |
15.875 |
19.05 |
14.27 |
63.50 |
38.10 |
25.40 |
22.23 |
28.58 |
38.10 |
5/8-18 |
16 |
61,609 |
216 |
|
SW-12E |
SG-12E |
19.050 |
22.23 |
17.45 |
73.03 |
44.45 |
28.58 |
25.40 |
33.32 |
44.45 |
3/4-16 |
14 |
96,361 |
328 |
|
SW-16E |
SG-16E |
25.400 |
34.93 |
25.40 |
104.78 |
69.85 |
41.28 |
38.10 |
47.63 |
53.98 |
1 1/4-12 |
17 |
272,809 |
964 |
|
