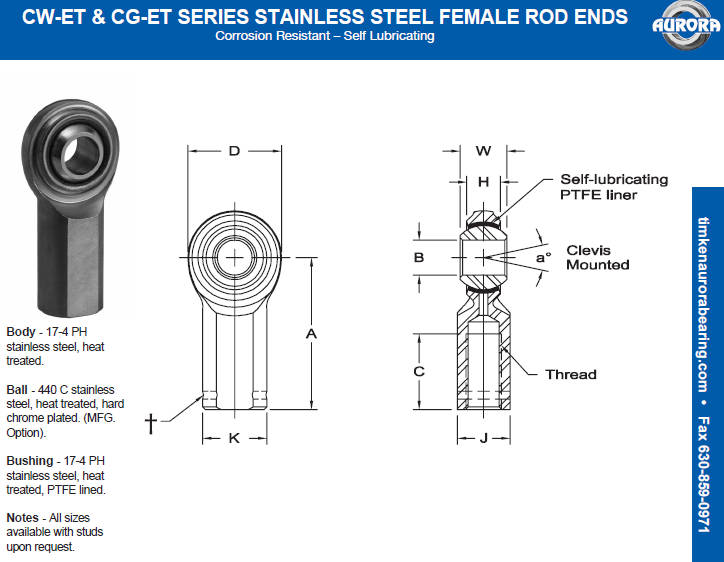

ROD END NO.

DIMENSIONS IN INCHES

a°

Misalign

. Angle

Ultimate

Radial

Static

Load

Capacity

Lbs.

Approx.

Brg. Wt.

 Lbs.

Right

Hand

Left

Hand†

B

+ .0015

- .0005

W

+ .000

- .005

H

Ref.

A

± .015

D

Ref.

K

± .010

J

± .010

Ball Dia.

 Ref.

C

+ .062

- .031

Thread

UNF-2B

CW-5ET

CG-5ET

.3125

.437

.312

1.375

.875

.500

.437

.593

.687

5/16-24

18

6,451

.08

CW-6ET

CG-6ET

.3750

.500

.359

1.625

1.000

.687

.562

.687

.812

3/8-24

18

8,627

.13

CW-7ET

CG-7ET

.4375

.562

.406

1.812

1.125

.750

.625

.781

.937

7/16-20

17

9,370

.18

CW-8ET

CG-8ET

.5000

.625

.453

2.125

1.312

.875

.750

.875

1.062

1/2-20

16

15,130

.29

CW-10ET

CG-10ET

.6250

.750

.484

2.500

1.500

1.000

.875

1.062

1.375

5/8-18

22

16,922

.43

CW-12ET

CG-12ET

.7500

.875

.593

2.875

1.750

1.125

1.000

1.250

1.562

3/4-16

20

25,549

.65

ROD END NO.

DIMENSIONS IN MILLIMETERS

a°

Misalign

. Angle

Ultimate

Radial

Static

Load

Capacity

Newtons

Approx.

 Brg. Wt.

 Grams

Right

Hand

Left

Hand†

B

+ .038

- .013

W

+ .00

- .13

H

Ref.

A

± .38

D

Ref.

K

± .25

J

± .25

Ball Dia.

 Ref.

C

+ 1.57

- .79

Thread

UNF-2B

CW-5ET

CG-5ET

7.938

11.10

7.92

34.93

22.23

12.70

11.10

15.06

17.45

5/16-24

18

28,693

36

CW-6ET

CG-6ET

9.525

12.70

9.12

41.28

25.40

17.45

14.27

17.45

20.62

3/8-24

18

38,371

59

CW-7ET

CG-7ET

11.113

14.27

10.31

46.02

28.58

19.05

15.88

19.84

23.80

7/16-20

17

41,676

82

CW-8ET

CG-8ET

12.700

15.88

11.50

53.98

33.32

22.23

19.05

22.23

26.97

1/2-20

16

67,299

132

CW-10ET

CG-10ET

15.875

19.05

12.29

63.50

38.10

25.40

22.23

26.97

34.93

5/8-18

22

75,271

195

CW-12ET

CG-12ET

19.050

22.23

15.06

73.03

44.45

28.58

25.40

31.75

39.67

3/4-16

20

113,642

295
