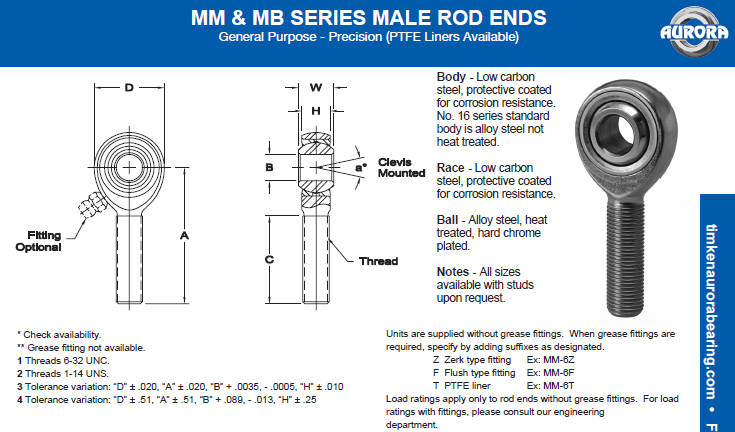

| MB-3、MB-4、MB-5、MB-6、MB-7、MB-8、MB-10关节 |
|
上海川代轴承机械有限公司 新闻动态 2026-5-25
|
 |
|
ROD END NO. |
DIMENSIONS IN INCHES |
a°
Misalign.
Angle |
Ultimate Radial
Static Load
Capacity Lbs. |
Approx.
Brg. Wt.
Lbs. |
|
Right
Hand |
Left
Hand |
B
+ .0015
- .0005 |
W
+ .000
- .005 |
H
± .005 |
A
± .015 |
D
± .010 |
Ball Dia.
Ref. |
C
+ .062
- .031 |
Thread
UNF-3A |
|
MM-2 |
MB-2 |
.1250 |
.250 |
.187 |
.937 |
.500 |
.312 |
.562 |
6-321 |
16 |
502 |
.01 |
|
MM-3 |
MB-3 |
.1900 |
.312 |
.250 |
1.250 |
.625 |
.437 |
.750 |
10-32 |
13 |
1,169 |
.03 |
|
MM-4 |
MB-4 |
.2500 |
.375 |
.281 |
1.562 |
.750 |
.500 |
1.000 |
1/4-28 |
16 |
2,158 |
.04 |
|
MM-5 |
MB-5 |
.3125 |
.437 |
.344 |
1.875 |
.875 |
.625 |
1.250 |
5/16-24 |
14 |
2,784 |
.07 |
|
MM-6 |
MB-6 |
.3750 |
.500 |
.406 |
1.938 |
1.000 |
.719 |
1.250 |
3/8-24 |
12 |
3,915 |
.11 |
|
MM-7 |
MB-7 |
.4375 |
.562 |
.437 |
2.125 |
1.125 |
.812 |
1.375 |
7/16-20 |
14 |
4,218 |
.16 |
|
MM-8 |
MB-8 |
.5000 |
.625 |
.500 |
2.438 |
1.312 |
.937 |
1.500 |
1/2-20 |
12 |
6,660 |
.25 |
|
MM-10 |
MB-10 |
.6250 |
.750 |
.562 |
2.625 |
1.500 |
1.125 |
1.625 |
5/8-18 |
16 |
7,364 |
.38 |
|
MM-12 |
MB-12 |
.7500 |
.875 |
.687 |
2.875 |
1.750 |
1.312 |
1.750 |
3/4-16 |
14 |
11,518 |
.60 |
|
MM-14 |
MB-14 |
.8750 |
.875 |
.765 |
3.375 |
2.000 |
1.375 |
2.000 |
7/8-14 |
7 |
18,476 |
.91 |
|
MM-14-1 |
MB-14-1 |
.8750 |
.875 |
.687 |
3.375 |
2.000 |
1.312 |
1.875 |
7/8-14 |
12 |
22,843 |
.91 |
|
MM-16 |
MB-16 |
1.0000 |
1.375 |
1.000 |
4.125 |
2.750 |
1.875 |
2.125 |
1 1/4-12 |
17 |
43,541 |
2.41 |
|
MM-16-1 |
MB-16-1 |
1.0000 |
1.375 |
1.000 |
4.125 |
2.750 |
1.875 |
2.125 |
1-142 |
17 |
43,541 |
2.13 |
|
MM-16-2 |
MB-16-2 |
1.0000 |
1.375 |
1.000 |
4.125 |
2.750 |
1.875 |
2.125 |
1-12 |
17 |
43,541 |
2.13 |
|
RODENDNO. |
DIMENSIONSINMILLIMETERS |
a°
Misalign.
Angle |
UltimateRadial
StaticLoad
Capacity
Newtons |
Approx.
Brg.Wt.
GramsK |
|
Right
Hand |
Left
Hand |
B
+.038
-.013 |
W
+.00
-.13 |
H
±.13 |
A
±.38 |
D
±.25 |
BallDia.
Ref. |
C
+1.57
-.79 |
Thread
UNF-3A |
|
MM-2 |
MB-2 |
3.175 |
6.35 |
4.75 |
23.80 |
12.70 |
7.92 |
14.27 |
6-321 |
16 |
2,236 |
6 |
|
MM-3 |
MB-3 |
4.826 |
7.92 |
6.35 |
31.75 |
15.88 |
11.10 |
19.05 |
10-32 |
13 |
5,197 |
13 |
|
MM-4 |
MB-4 |
6.350 |
9.53 |
7.14 |
39.67 |
19.05 |
12.70 |
25.40 |
1/4-28 |
16 |
9,600 |
20 |
|
MM-5 |
MB-5 |
7.938 |
11.10 |
8.74 |
47.63 |
22.23 |
15.88 |
31.75 |
5/16-24 |
14 |
12,385 |
33 |
|
MM-6 |
MB-6 |
9.525 |
12.70 |
10.31 |
49.23 |
25.40 |
18.26 |
31.75 |
3/8-24 |
12 |
17,416 |
51 |
|
MM-7 |
MB-7 |
11.113 |
14.27 |
11.10 |
53.98 |
28.58 |
20.62 |
34.93 |
7/16-20 |
14 |
18,759 |
73 |
|
MM-8 |
MB-8 |
12.700 |
15.88 |
12.70 |
61.93 |
33.32 |
23.80 |
38.10 |
1/2-20 |
12 |
29,624 |
113 |
|
MM-10 |
MB-10 |
15.875 |
19.05 |
14.27 |
66.68 |
38.10 |
28.58 |
41.28 |
5/8-18 |
16 |
32,752 |
173 |
|
MM-12 |
MB-12 |
19.050 |
22.23 |
17.45 |
73.03 |
44.45 |
33.32 |
44.45 |
3/4-16 |
14 |
51,237 |
273 |
|
MM-14 |
MB-14 |
22.225 |
22.23 |
19.43 |
85.73 |
50.80 |
34.93 |
50.80 |
7/8-14 |
7 |
82,185 |
411 |
|
MM-14-1 |
MB-14-1 |
22.225 |
22.23 |
17.45 |
85.73 |
50.80 |
33.32 |
47.63 |
7/8-14 |
12 |
101,601 |
411 |
|
MM-16 |
MB-16 |
25.400 |
34.93 |
25.40 |
104.78 |
69.85 |
47.63 |
53.98 |
11/4-12 |
17 |
193,670 |
1,091 |
|
MM-16-1 |
MB-16-1 |
25.400 |
34.93 |
25.40 |
104.78 |
69.85 |
47.63 |
53.98 |
1-142 |
17 |
193,670 |
965 |
|
MM-16-2 |
MB-16-2 |
25.400 |
34.93 |
25.40 |
104.78 |
69.85 |
47.63 |
53.98 |
1-12 |
17 |
193,670 |
965 | | |
MB-3、MB-4、MB-5、MB-6、MB-7、MB-8、MB-10关节现货供应，如有需要请及时联系我们。上海川代轴承机械有限公司同时销售
