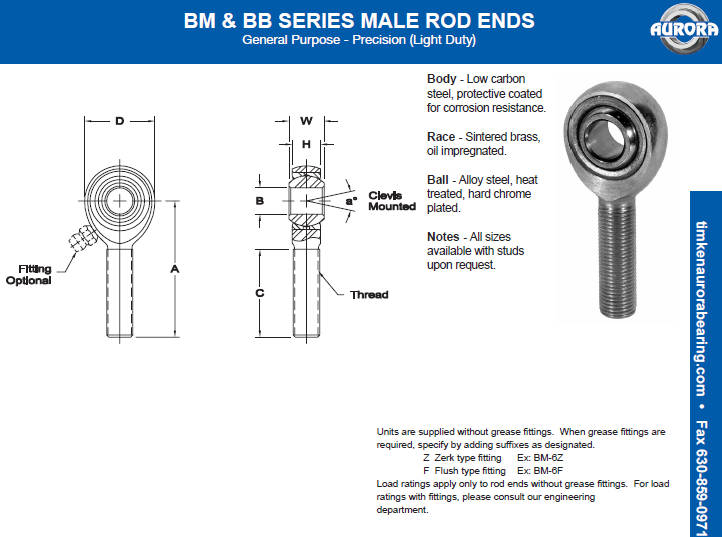

ROD END NO.

DIMENSIONS IN INCHES

a°

Misalign

. Angle

Ultimate Radial

Static Load

Capacity Lbs.

Approx.

 Brg. Wt

. Lbs.

Right

Hand

Left

Hand

B

+ .0015

- .0005

W

+ .000

- .005

H

± .005

A

± .015

D

± .010

Ball Dia.

 Ref.

C

+ .062

- .031

Thread

UNF-3A

BM-3

BB-3

.1900

.312

.250

1.250

.625

.437

.750

10-32

13

1,169

.03

BM-4

BB-4

.2500

.375

.281

1.562

.750

.500

1.000

1/4-28

16

2,158

.04

BM-5

BB-5

.3125

.437

.344

1.875

.875

.625

1.250

5/16-24

14

2,784

.07

BM-6

BB-6

.3750

.500

.406

1.938

1.000

.719

1.250

3/8-24

12

3,915

.11

BM-7

BB-7

.4375

.562

.437

2.125

1.125

.812

1.375

7/16-20

14

4,218

.16

BM-8

BB-8

.5000

.625

.500

2.438

1.312

.937

1.500

1/2-20

12

6,660

.25

BM-10

BB-10

.6250

.750

.562

2.625

1.500

1.125

1.625

5/8-18

16

7,364

.38

BM-12

BB-12

.7500

.875

.687

2.875

1.750

1.312

1.750

3/4-16

14

11,518

.60

ROD END NO.

DIMENSIONS IN MILLIMETERS

a°

Misalign.

 Angle

Ultimate Radial

Static Load

Capacity

Newtons

Approx.

Brg. Wt.

 Grams

Right

Hand

Left

Hand

B

+ .038

- .013

W

+ .00

- .13

H

± .13

A

± .38

D

± .25

Ball Dia

. Ref.

C

+ 1.57

- .79

Thread

UNF-3A

BM-3

BB-3

4.826

7.92

6.35

31.75

15.88

11.10

19.05

10-32

13

5,197

13

BM-4

BB-4

6.350

9.53

7.14

39.67

19.05

12.70

25.40

1/4-28

16

9,600

20

BM-5

BB-5

7.938

11.10

8.74

47.63

22.23

15.88

31.75

5/16-24

14

12,385

33

BM-6

BB-6

9.525

12.70

10.31

49.23

25.40

18.26

31.75

3/8-24

12

17,416

51

BM-7

BB-7

11.113

14.27

11.10

53.98

28.58

20.62

34.93

7/16-20

14

18,759

73

BM-8

BB-8

12.700

15.88

12.70

61.93

33.32

23.80

38.10

1/2-20

12

29,624

113

BM-10

BB-10

15.875

19.05

14.27

66.68

38.10

28.58

41.28

5/8-18

16

32,752

173

BM-12

BB-12

19.050

22.23

17.45

73.03

44.45

33.32

44.45

3/4-16

14

51,237

273
