MODEL	BASIC LOAD		RECOMMENDED PERMISSIVE LOADS														WEIGHT	MAXIMUM
SRJ004C	RATINGS																(kg)	SWING ANGLE
	C (N)	Co (N)	Compressive (N)					Tensile (N)			Radial (N)				Moment (N-m)
	128	100	102					38.4			64				0.64		0.015	±15°
SRJ006C	320	280	256					96			160				1.84		0.036	±30°
SRJ008C	490	540	392					147			245				3.92		0.06	±30°
SRJ012C	720	770	576					216			360				7.20		0.18	±30°
SRJ016C	1170	1300	936					351			585				18.7		0.37	±30°
SRJ024C	2840	3920	2272					852			1420				59.6		0.93	±30°
SRJ032C	5800	8820	4640					1740			2900				174		2.30	±30°
SRJ048C	10600	16000	8480					3180			5300				413		6.73	±30°

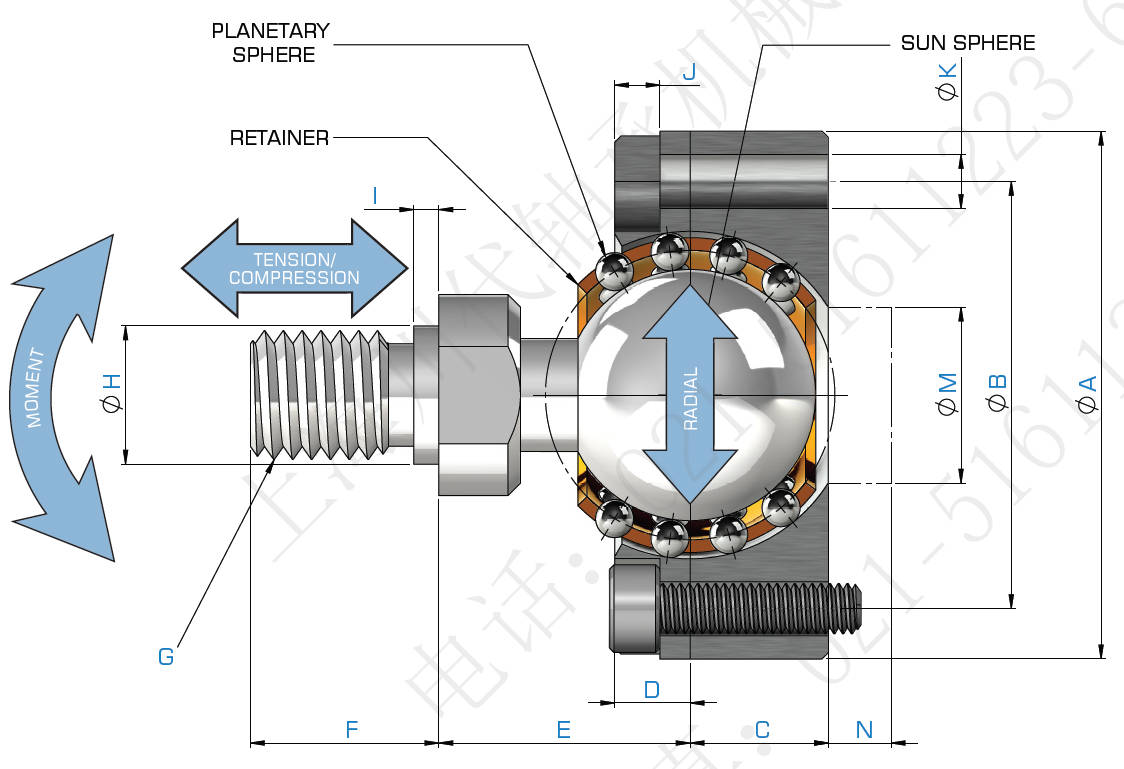

MODEL	A	B	C	D	E	F	G		H	I		J	K	M		N	WIDTHK
																	ACROSS
(units: mm)																	FLATS
SRJ004C	19	15	3.8	2.5	10	6	M3 x 0.5		3.6	2		1.5	2	6		1.5	4
SRJ006C	25	20	5.5	3.8	11.5	8	M4 x 0.5		4.5	2		2.3	3	10		2	5
SRJ008C	30	24	7	4	16	12	M5 x 0.5		5.5	4		2	3.4	11		2	7
SRJ012C	42	34	11	6	20	15	M10 x 1.5		11	2		3.6	4.3	14		2	14
SRJ016C	56	45	12	7	32	18	M12 x 1.75		12.6	3		4.6	5.5	25		5	14
SRJ024C	74	62	17	11	42	23	M14 x 2		15	5		5.5	6.6	35		7	17
SRJ032C	100	84	22	16	60	30	M16 x 2		16.6	6		8.6	9	48		10	22
SRJ048C	136	114	38	22	78	38	M28 x 2		30	6		10.8	11	60		10	30
