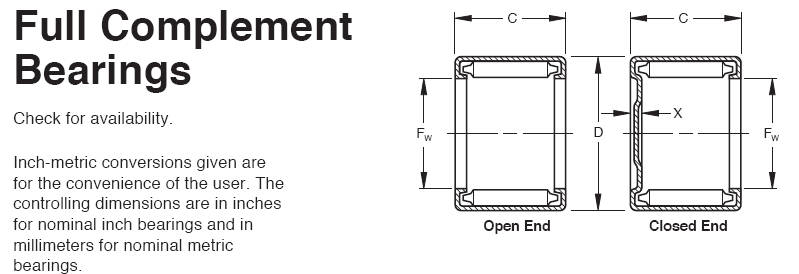

Fw Bore

(nom.)

D

Outside Diameter

(nom.)

C

Width

+0.000   +0,00

-0.010   -0,25

Bearing Designation

open       closed

end           end

inch

mm

inch

mm

inch

mm

7⁄8

22,22

1 1⁄8

28,58

0.375

9,52

B-146

—

7⁄8

22,22

1 1⁄8

28,58

0.500

12,70

B-148

—

7⁄8

22,22

1 1⁄8

28,58

0.750

19,05

B-1412

M-14121

7⁄8

22,22

1 1⁄8

28,58

1.000

25,40

B-1416

M-14161

7⁄8

22,22

1 1⁄8

28,58

1.125

28,58

B-1418

—

7⁄8

22,22

1 3⁄16

30,16

0.625

15,88

BH-1410

—

7⁄8

22,22

1 3⁄16

30,16

0.750

19,05

BH-1412

—

7⁄8

22,22

1 3⁄16

30,16

1.000

25,40

BH-1416

—

15⁄16

23,81

1 3⁄16

30,16

0.500

12,70

B-158

—

15⁄16

23,81

1 3⁄16

30,16

1.000

25,40

B-1516

M-15161

0.98

25

1.26

32

0.472

12

—

—

0.98

25

1.26

32

0.630

16

—

—

0.98

25

1.26

32

0.787

20

—

—

0.98

25

1.26

32

1.024

26

—

—

1

25,40

1 1⁄4

31,75

0.375

9,52

B-166

—

1

25,40

1 1⁄4

31,75

0.438

11,13

B-167

—

1

25,40

1 1⁄4

31,75

0.500

12,70

B-168

—

1

25,40

1 1⁄4

31,75

0.625

15,88

B-1610

—

1

25,40

1 1⁄4

31,75

0.750

19,05

B-1612

M-16121

1

25,40

1 1⁄4

31,75

1.000

25,40

B-1616

M-16161

1

25,40

1 5⁄16

33,34

0.500

12,70

BH-168

MH-1681

1

25,40

1 5⁄16

33,34

0.625

15,88

BH-1610

—

1

25,40

1 5⁄16

33,34

0.750

19,05

BH-1612

MH-16121

1

25,40

1 5⁄16

33,34

1.000

25,40

BH-1616

MH-16161

1

25,40

1 5⁄16

33,34

1.250

31,75

BH-1620

—

1

25,40

1 5⁄16

33,34

1.500

38,10

BH-1624

—

1 1⁄16

26,99

1 5⁄16

33,34

0.625

15,88

B-1710

—

1.10

28

1.38

35

0.630

16

—

—

1.10

28

1.38

35

0.787

20

—

—

1 1⁄8

28,58

1 3⁄8

34,92

0.375

9,52

B-186

—

1 1⁄8

28,58

1 3⁄8

34,92

0.500

12,70

B-188

—

1 1⁄8

28,58

1 3⁄8

34,92

0.750

19,05

B-1812

—

1 1⁄8

28,58

1 3⁄8

34,92

1.000

25,40

B-1816

M-18161

1 1⁄8

28,58

1 1⁄2

38,10

0.750

19,05

BH-1812

—

1 1⁄8

28,58

1 1⁄2

38,10

1.000

25,40

BH-1816

—

1 1⁄8

28,58

1 1⁄2

38,10

1.125

28,58

—

—

1 1⁄8

28,58

1 1⁄2

38,10

1.250

31,75

BH-1820

—
