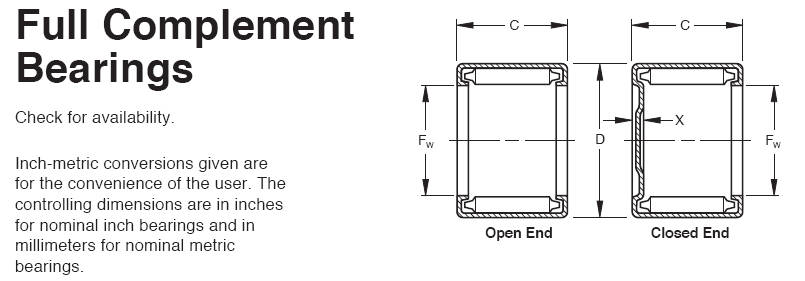

Fw Bore

(nom.)

D

Outside Diameter

(nom.)

C

Width

+0.000   +0,00

-0.010   -0,25

Bearing Designation

open       closed

end           end

inch

mm

inch

mm

inch

mm

5⁄8

15,88

7⁄8

22,22

0.500

12,70

BH-108

MH-1081

5⁄8

15,88

7⁄8

22,22

0.625

15,88

BH-1010

—

5⁄8

15,88

7⁄8

22,22

0.750

19,05

BH-1012

—

5⁄8

15,88

7⁄8

22,22

1.000

25,40

BH-1016

—

0.63

16

0.87

22

0.472

12

—

—

0.63

16

0.87

22

0.630

16

—

—

0.67

17

0.91

23

0.472

12

—

—

11⁄16

17,46

7⁄8

22,22

0.375

9,52

B-116

—

11⁄16

17,46

7⁄8

22,22

0.500

12,70

B-118

—

11⁄16

17,46

7⁄8

22,22

0.625

15,88

B-1110

M-11101

11⁄16

17,46

7⁄8

22,22

0.750

19,05

B-1112

M-11121

11⁄16

17,46

15⁄16

23,81

0.438

11,13

BH-117

—

11⁄16

17,46

15⁄16

23,81

0.625

15,88

BH-1110

MH-11101

11⁄16

17,46

15⁄16

23,81

0.750

19,05

BH-1112

—

0.71

18

0.94

24

0.472

12

—

—

0.71

18

0.94

24

0.630

16

—

—

3⁄4

19,05

1

25,40

0.375

9,52

B-126

—

3⁄4

19,05

1

25,40

0.500

12,70

B-128

M-1281

3⁄4

19,05

1

25,40

0.625

15,88

B-1210

M-12101

3⁄4

19,05

1

25,40

0.750

19,05

B-1212

M-12121

0.79

20

1.02

26

0.472

12

—

—

0.79

20

1.02

26

0.630

16

—

—

0.79

20

1.02

26

0.787

20

—

—

13⁄16

20,64

1 1⁄16

26,99

0.375

9,52

B-136

—

13⁄16

20,64

1 1⁄16

26,99

0.500

12,70

B-138

M-1381

13⁄16

20,64

1 1⁄16

26,99

0.875

22,22

B-1314

—

13⁄16

20,64

1 1⁄16

26,99

1.000

25,40

B-1316

M-13161

13⁄16

20,64

1 1⁄8

28,58

0.625

15,88

BH-1310

—

13⁄16

20,64

1 1⁄8

28,58

0.750

19,05

BH-1312

—
