| 带座P2B-LTB7-20M、P2B-LTB7-100 |
|
上海川代轴承机械有限公司 新闻动态 2026-1-11
|
 |
|
Series |
Shaft Size |
700 SERIES |
1000 SERIES |
Used on
Frame |
|
Part No. |
Description |
Wt. |
Part No. |
Description |
Wt. |
|
204 |
3/4
20mm |
032940
034244 |
P2B-LTB7-012
P2B-LTB7-20M |
1.6
0.73 |
032970
034252 |
P2B-LTB10-012
P2B-LTB10-20M |
1.6
0.73 |
LD-10
LD-10 |
|
205 |
7/8 |
032941 |
P2B-LTB7-014 |
1.5 |
032971 |
P2B-LTB10-014 |
1.5 |
LD-10 |
|
15/16 |
032942 |
P2B-LTB7-015 |
1.4 |
032972 |
P2B-LTB10-015 |
1.4 |
|
1 |
032943 |
P2B-LTB7-100 |
1.3 |
032973 |
P2B-LTB10-100 |
1.3 |
|
25mm |
034245 |
P2B-LTB7-25M |
0.59 |
034253 |
P2B-LTB10-25M |
0.59 |
LD-10 |
|
206 |
1-1/8
1-3/16 |
032945
032946 |
P2B-LTB7-102
P2B-LTB7-103 |
2.7
2.6 |
032975
032976 |
P2B-LTB10-102
P2B-LTB10-103 |
2.7
2.6 |
LD-20 |
|
30mm |
034246 |
P2B-LTB7-30M |
1.18 |
034254 |
P2B-LTB10-30M |
1.18 |
LD-20 |
|
207 |
1-1/4 |
032947 |
P2B-LTB7-104 |
4 |
032977 |
P2B-LTB10-104 |
4 |
LD-20 |
|
1-3/8 |
032949 |
P2B-LTB7-106 |
3.8 |
032979 |
P2B-LTB10-106 |
3.8 |
|
1-7/16 |
032950 |
P2B-LTB7-107 |
3.7 |
032980 |
P2B-LTB10-107 |
3.7 |
|
1-1/2 |
032951 |
P2B-LTB7-108 |
3.6 |
032981 |
P2B-LTB10-108 |
3.6 |
|
|
35mm |
034247 |
P2B-LTB7-35M |
1.72 |
034255 |
P2B-LTB10-35M |
1.72 |
LD-20 |
|
209 |
1-11/16
1-3/4
40mm
45mm |
032953
032954
034248
034249 |
P2B-LTB7-111
P2B-LTB7-112
P2B-LTB7-40M
P2B-LTB7-45M |
5
4.8
2.27
2.18 |
032983
032984
034256
034257 |
P2B-LTB10-111
P2B-LTB10-112
P2B-LTB10-40M
P2B-LTB10-45M |
5
4.8
2.27
2.18 |
LD-20
LD-20 |
|
210 |
1-15/16
2 |
032955
032956 |
P2B-LT87-115
P2B-LTB7-200 |
6
5.8 |
032985
032986 |
P2B-LTB10-115
P2B-LTB10-200 |
6
5.8 |
LD-30 |
|
50mm |
034250 |
P2B-LTB7-50M |
2.72 |
034258 |
P2B-LTB10-50M |
2.72 |
LD-30 |
|
211 |
2-3/16 |
032957 |
P2B-LTB7-203 |
6.5 |
032987 |
P2B-LTB10-203 |
6.5 |
LD-40 |
|
212 |
2-7/16
2-1/2 |
032959
032960 |
P2B-LTB7-207
P2B-LTB7-208 |
8.1
7.8 |
032989
032990 |
P2B-LTB10-207
P2B-LTB10-208 |
8.1
7.8 |
LD-40 |
|
60mm |
034251 |
P2B-LTB7-60M |
3.67 |
034259 |
P2B-LTB10-60M |
3.67 |
LD-40 |
|
215 |
2-15/16
3
70mm
75mm |
034596
034597
. . . .
. . . . |
P2B-LTB7-215
P2B-LTB7-300
. . . .
. . . . |
18.7
18.4
. . . .
. . . . |
034598
034599
. . . .
. . . . |
P2B-LTB10-215
P2B-LTB10-300
. . . .
. . . . |
18.7
18.4
. . . .
. . . . |
LD-45
LD-45 |
|

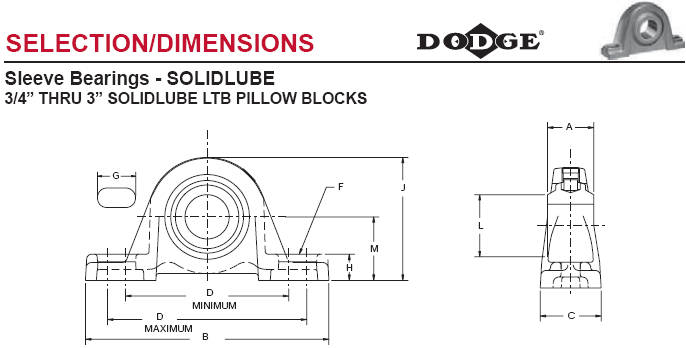

Series
Size |
Shaft |
A |
B |
C |
D |
F
Bolt Dia. |
G |
H |
J |
L |
M |
|
Min. |
Max. |
|
204 |
3/4
20mm |
1
25.4 |
5-1/4
133.4 |
1-11/32
34.1 |
3-3/8
85.7 |
4-3/16
106.4 |
3/8
10 |
27/32
21.4 |
15/32
11.9 |
2-1/2
63.5 |
1-3/8
34.9 |
1-1/4
31.8 |
|
205 |
7/8 |
1-1/16 |
5-1/2 |
1-13/32 |
3-11/16 |
4-1/2 |
3/8 |
27/32 |
15/32 |
2-21/32 |
1-9/16 |
1-5/16 |
|
15/16
1 |
|
25mm |
27.0 |
139.7 |
35.7 |
93.7 |
114.3 |
10 |
21.4 |
11.9 |
67.5 |
39.7 |
33.3 |
|
206 |
1-1/8
1-3/16 |
1-3/16 |
6-1/4 |
1-3/4 |
4-1/4 |
5 |
1/2 |
15/16 |
5/8 |
3-3/16 |
1-13/16 |
1-9/16 |
|
30mm |
30.2 |
158.8 |
44.5 |
108.0 |
127.0 |
12 |
23.8 |
15.9 |
81.0 |
46.0 |
39.7 |
|
207 |
1-1/4 |
1-5/16 |
6-1/2 |
1-3/4 |
4-11/16 |
5-7/16 |
1/2 |
15/16 |
21/32 |
3-11/16 |
2-1/8 |
1-13/16 |
|
1-3/8
1-7/16 |
|
1-1/2 |
|
|
|
|
|
|
|
|
|
|
|
|
35mm |
33.3 |
165.1 |
44.5 |
119.1 |
138.1 |
12 |
23.8 |
16.7 |
93.7 |
54.0 |
46.0 |
|
209 |
1-11/16
1-3/4
40mm
45mm |
1-9/16
39.7 |
7-7/16
188.9 |
2
50.8 |
5-1/2
139.7 |
6-3/16
157.2 |
1/2
12 |
29/32
23.0 |
11/16
17.5 |
4-7/32
107.2 |
2-9/16
65.1 |
2-1/16
52.4 |
|
210 |
1-15/16
2 |
1-5/8 |
8-1/8 |
2-1/4 |
6 |
6-11/16 |
5/8 |
1-1/32 |
11/16 |
4-15/32 |
2-13/16 |
2-3/16 |
|
50mm |
41.3 |
206.4 |
57.1 |
152.4 |
170.0 |
16 |
26.2 |
17.5 |
113.5 |
71.4 |
55.6 |
|
211 |
2-3/16 |
1-3/4 |
8-7/8 |
2-5/16 |
6-3/8 |
7-7/16 |
5/8 |
1-7/32 |
13/16 |
4-29/32 |
3-1/8 |
2-7/16 |
|
212 |
2-7/16
2-1/2 |
1-13/16 |
9-1/2 |
2-3/8 |
6-7/8 |
7-15/16 |
5/8 |
1-7/32 |
13/16 |
5-11/32 |
3-1/2 |
2-11/16 |
|
60mm |
46.0 |
241.3 |
60.3 |
174.6 |
201.6 |
16 |
31.0 |
20.6 |
135.7 |
88.9 |
68.3 |
|
215 |
2-15/16
3
70mm
75mm |
2-23/32
69.1 |
11-3/4
298.5 |
2-7/8
73.0 |
8-1/2
215.9 |
9-1/2
241.3 |
7/8
22 |
1-7/16
36.5 |
1-1/16
. . . . |
6-9/16
. . . . |
3-15/16
100.0 |
3-5/16
. . . . | |
