Bearing	Shaft Size  mm		TRIDENT Seal								Labyrinth Seal
			NON-EXPANSION				EXPANSION				NON-EXPANSION		EXPANSION
			Part Number		Description		Part Number		Description		Part Number	Description	Part Number		Description
22208	30 35		071000 071001		ISN 507-030MFR ISN 508-035MFR		071017 071018		ISN 507-030MLR ISN 508-035MLR		071034 071035	ISN 507-030MFS ISN 508-035MFS	071051 071052		ISN 507-030MLS ISN 508-035MLS
22209	40		071002		ISN 509-040MFR		071019		ISN 509-040MLR		071036	ISN 509-040MFS	071053		ISN 509-040MLS
22210	45 50		071003 071004		ISN 510-045MFR ISN 511-050MFR		071020 071021		ISN 510-045MLR ISN 511-050MLR		071037 071038	ISN 510-045MFS ISN 511-050MFS	071054 071055		ISN 510-045MLS ISN 511-050MLS
22211	55		071005		ISN 512-055MFR		071022		ISN 512-055MLR		071039	ISN 512-055MFS	071056		ISN 512-055MLS
22213	60		071006		ISN 513-060MFR		071023		ISN 513-060MLR		071040	ISN 513-060MFS	071057		ISN 513-060MLS
22215	65		071007		ISN 515-065MFR		071024		ISN 515-065MLR		071041	ISN 515-065MFS	071058		ISN 515-065MLS
	70		071008		ISN 516-070MFR		071025		ISN 516-070MLR		071042	ISN 516-070MFS	071059		ISN 516-070MLS
	75		071009		ISN 517-075MFR		071026		ISN 517-075MLR		071043	ISN 517-075MFS	071060		ISN 517-075MLS
22218	80 85		071010 071011		ISN 518-080MFR ISN 519-085MFR		071027 071028		ISN 518-080MLR ISN 519-085MLR		071044 071045	ISN 518-080MFS ISN 519-085MFS	071061 071062		ISN 518-080MLS ISN 519-085MLS
22220	90 100		071012 071013		ISN 520-090MFR ISN 522-100MFR		071029 071030		ISN 520-090MLR ISN 522-100MLR		071046 071047	ISN 520-090MFS ISN 522-100MFS	071063 071064		ISN 520-090MLS ISN 522-100MLS
22222	110		071014		ISN 524-110-MFR		071031		ISN 524-110MLR		071048	ISN 524-110MFS	071065		ISN 524-110MLS
22226	115 125		071015 071016		ISN 526-115MFR ISN 528-125MFR		071032 071033		ISN 526-115MLR ISN 528-125MLR		071049 071050	ISN 526-115MFS ISN 528-125MFS	071066 071067		ISN 526-115MLS ISN 528-125MLS

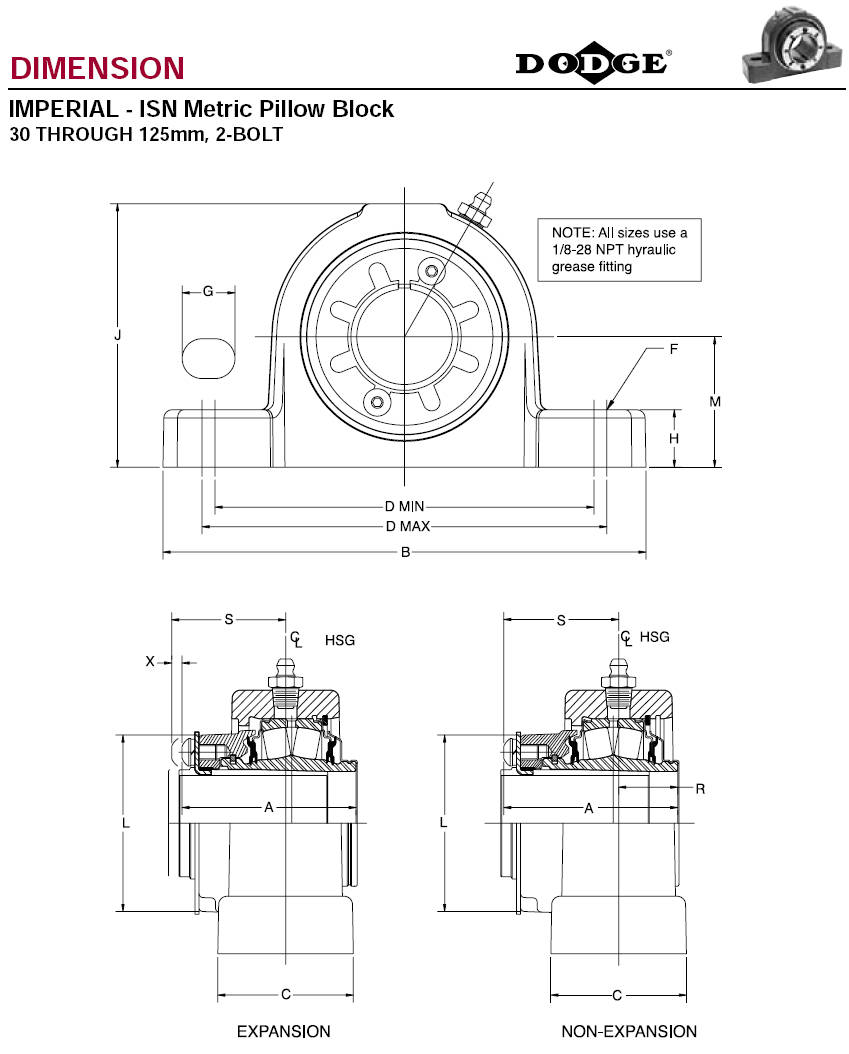

Shaft Size mm		A		B		C		D			F BOLT DIA	G	H	J	L	M	R	S	X TOTAL EXPANSION
								min		max
30 35		66.7 66.7		184.9 205.9		52.0 60.2		145.0 150.0		155.0 174.6	M12 M12	20 27.3	22 25	100.9 110.8	67.6 67.6	50 60	22.6 22.6	44.1 44.1	4 4
40		71.4		206.3		60.2		155.0		174.6	M12	24.8	25	114	74.7	60	20.6	50.8	6.5
45 50		72.6 72.6		204.9 253.9		60.2 70.2		160.0 190.0		175.0 215.9	M12 M16	22.5 31	25 28	113.8 124.5	81 81	60 70	21.1 21.1	51.4 51.4	6.5 6.5
55		77.0		253.9		69.9		190.0		216.0	M16	31	30	130.3	87.1	70	23.4	54.2	6.5
60		86.9		274.9		80.2		205.0		235.0	M16	33	30	152.4	96.5	80	27.1	59.7	7
65 70 75		88.9		280.1		80.1		215.0		236.0	M16	28.5	30	156	106.7	80	26.9	61.7	7
		88.9		315.9		90.2		244.5		268.3	M20	34.1	32	176	106.7	95	26.9	61.7	7
80 85		106.0 106.0		345.3 345.0		100.3 100.2		270.0 264.2		293.7 296.1	M20 M20	34 37.9	35 35	196.7 205.2	124.7 124.7	100 112	34.5 34.5	71.4 71.4	7 7
90 100		120.0 120.0		379.8 410.0		110.2 120.0		292.8 314.4		327.0 356.0	M24 M24	43.1 46.8	40 45	218.3 239	138.7 138.7	112 125	37.2 37.2	82.3 82.3	8 8
110		133.0		410.0		120.0		314.5		356.0	M24	46.8	45	260.7	161.3	140	44.4	88.4	10
115 125		152.0 152.0		444.8 500.0		130.0 150.2		359.6 400.0		387.0 427.0	M24 M30	41.7 48.5	50 50	292.8 290.4	191.8 191.8	150 150	48.6 48.6	103.2 103.2	10 10
