Shaft Size

Δ

Shaft Size

Inch

NON-EXPANSION*

EXPANSION

Approx. Wt.

PART NO.

.PART NAME

PART NO.

.PART NAME

22208

1-7/16

1-1/2

048034

048035

F4B-UN2-107

F4B-UN2-108

048051

048052

F4B-UN2-107E

F4B-UN2-108E

5.20

5.10

22209

1-11/16

1-3/4

048036

048037

F4B-UN2-111

F4B-UN2-112

048053

048054

F4B-UN2-111E

F4B-UN2-112E

6.70

6.70

22210

1-15/16

2

048038

048039

F4B-UN2-115

F4B-UN2-200

048055

048056

F4B-UN2-115E

F4B-UN2-200E

6.90

6.70

22211

2-3/16

048040

F4B-UN2-203

048057

F4B-UN2-203E

8.40

22213

2-7/16

2-1/2

048041

048042

F4B-UN2-207

F4B-UN2-208

048058

048059

F4B-UN2-207E

F4B-UN2-208E

10.50

10.40

22215

2-11/16

2-3/4

2-15/16

3

048043

048044

048045

048046

F4B-UN2-211

F4B-UN2-212

F4B-UN2-215

F4B-UN2-300

048060 †

048061 †

048062

048063

F4B-UN2-211E

F4B-UN2-212E

F4B-UN2-215E

F4B-UN2-300E

17.30

17.00

16.20

15.90

22218

3-7/16

3-1/2

048047

048048 †

F4B-UN2-307

F4B-UN2-308

048064

048065 †

F4B-UN2-307E

F4B-UN2-308E

24.70

30.00

22220

3-15/16

4

048049

048050

F4B-UN2-315

F4B-UN2-400

048066

048067 †

F4B-UN2-315E

F4B-UN2-400E

41.40

41.00

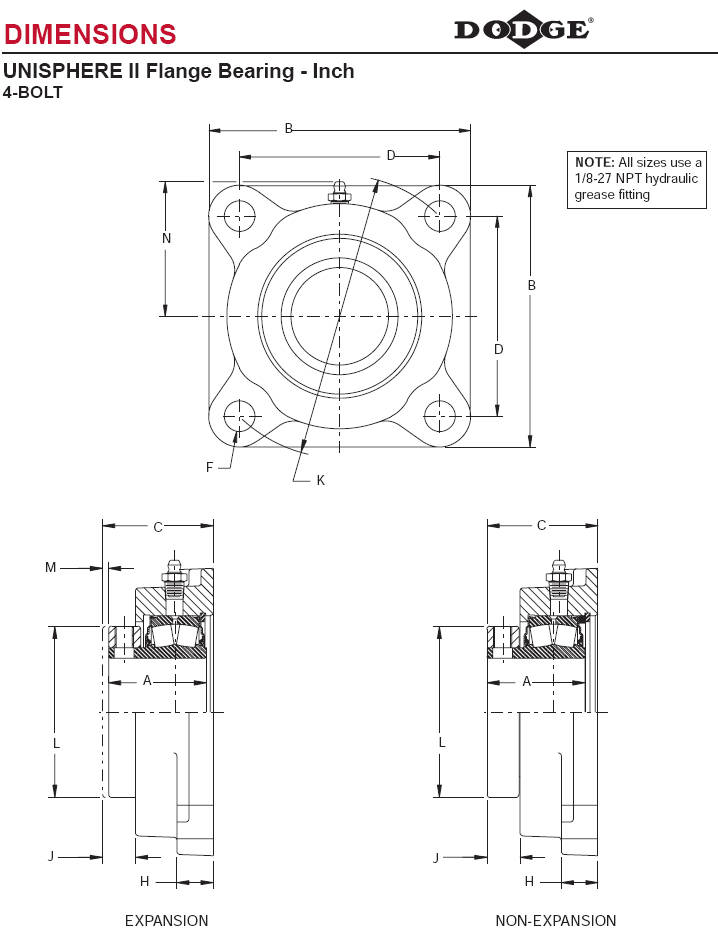

Shaft Size

Inch

A

B

C

D

F Bolt

Dia.

H

J

K

L

M

Total Exp.

N

1-7/16

1-1/2

1-11/16

4-3/4

1-29/32

3-17/32

1/2

3/4

9/16

5

2-3/4

5/32

2-7/16

1-11/16

1-3/4

1-29/32

5-1/8

2-5/32

3-29/32

1/2

3/4

23/32

5-1/2

3

5/32

2-3/4

1-15/16

2

1-29/32

5-5/16

2-11/64

4-1/16

1/2

11/16

45/64

5-3/4

3-1/4

5/32

2-7/8

2-3/16

2

5-7/8

2-17/64

4-1/2

5/8

3/4

43/64

6-3/8

3-1/2

5/32

3-1/16

2-7/16

2-1/2

2-13/64

6-1/8

2-7/16

4-25/32

5/8

1

5/8

6-3/4

4-1/16

3/16

3-3/8

2-11/16

2-3/4

2-15/16

3

2-29/64

7-3/16

2-19/32

5-9/16

3/4

15/16

25/32

7-7/8

4-23/32

3/16

3-13/16

3-7/16

3-1/2

2-55/64

8-11/32

3-5/64

6-23/32

3/4

1-3/16

55/64

9-1/2

5-1/2

3/16

4-5/16

3-15/16

4

3-21/64

9-15/32

3-11/16

7-5/8

7/8

1-1/16

1-3/64

10-3/4

6-15/32

7/32

4-11/16
