Bearing

Shaft  Size Inch Δ

NON-EXPANSION*

EXPANSION

Approx. Wt. Lbs.

PART NO.

PART NAME

PART NO.

PART NAME

22208

1-7/16 1-1/2

048000 048001

P2B-UN2-107 P2B-UN2-108

048017 048018

P2B-UN2-107E P2B-UN2-108E

5.5 5.4

22209

1-11/16 1-3/4

048002 048003

P2B-UN2-111 P2B-UN2-112

048019 048020

P2B-UN2-111E P2B-UN2-112E

6.9 6.8

22210

1-15/16 2

048004 048005

P2B-UN2-115 P2B-UN2-200

048021 048022

P2B-UN2-115E P2B-UN2-200E

8.0 7.6

22211

2-3/16

048006

P2B-UN2-203

048023

P2B-UN2-203E

9.8

22213

2-7/16 2-1/2

048007 048008

P2B-UN2-207 P2B-UN2-208

048024 048025

P2B-UN2-207E P2B-UN2-208E

13.6 13.4

22215

2-11/16

048009

P2B-UN2-211

048026

P2B-UN2-211E

19.3

2-3/4

048010 †

P2B-UN2-212

048027†

P2B-UN2-212E

19.0

2-15/16

048011

P2B-UN2-215

048028

P2B-UN2-215E

18.2

3

048012

P2B-UN2-300

048029

P2B-UN2-300E

18.1

22218

3-7/16 3-1/2

048013 048014 †

P2B-UN2-307 P2B-UN2-308

048030 048031†

P2B-UN2-307E P2B-UN2-308E

28.4 27.0

22220

3-15/16 4

048015 048016 †

P2B-UN2-315 P2B-UN2-400

048032 048033†

P2B-UN2-315E P2B-UN2-400E

37.4 37.0

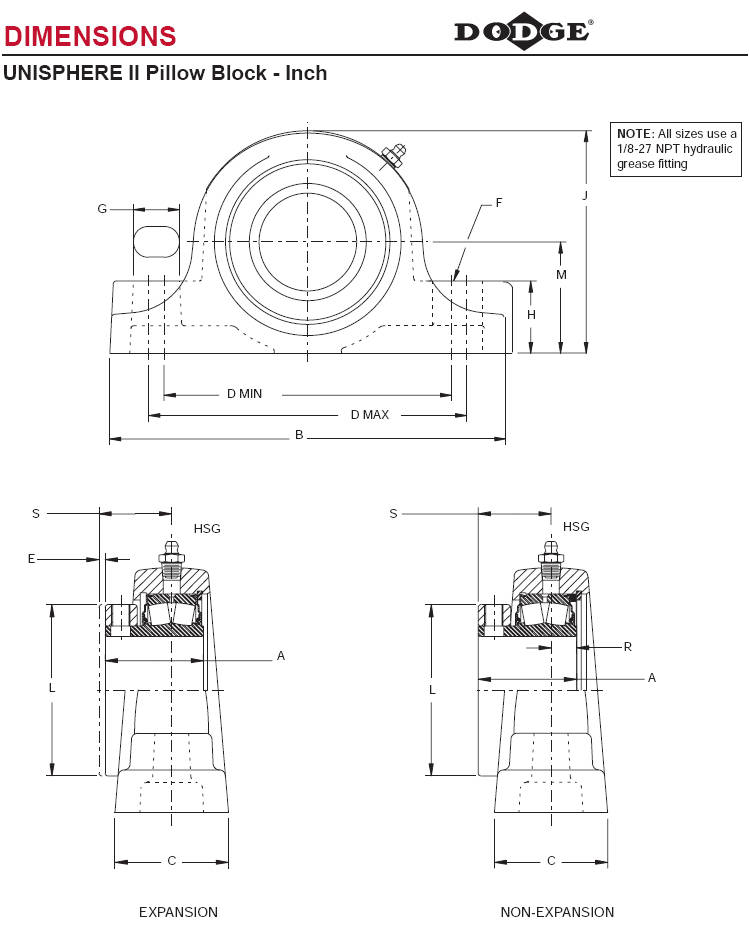

Shaft Size Inch

A

B

C

D

E Total Exp.

F Bolt Dia.

G

H

J

L

M

R

S

Min.    .

Max

1-7/16 1-1/2

1-11/16

6-7/8

1-61/64

4-11/16

5-1/2

5/32

1/2

31/32

1-3/16

3-7/8

2-3/4

1-7/8

1/2

1-3/16

1-11/16 1-3/4

1-29/32

7-3/8

2-1/16

5-3/16

5-7/8

5/32

1/2

29/32

1-5/16

4-1/4

3

2-1/8

15/32

1-7/16

1-15/16 2

1-29/32

8-3/8

2-1/16

5-15/16

6-11/16

5/32

5/8

1-1/16

1-3/8

4-9/16

3-1/4

2-1/4

15/32

1-7/16

2-3/16

2

8-7/8

2-5/16

6-7/16

7-1/8

5/32

5/8

1-1/32

1-5/8

5

3-1/2

2-1/2

33/64

1-31/64

2-7/16 2-1/2

2-13/64

9-1/4

2-9/16

6-13/16

7-7/16

3/16

5/8

1

1-3/4

5-11/16

4-1/16

2-3/4

21/32

1-35/64

2-11/16 2-3/4 2-15/16 3

2-29/64

10-7/16

2-9/16

7-13/16

8-7/16

3/16

3/4

1-1/8

2-1/4

6-7/16

4-23/32

3-1/4

49/64

1-11/16

3-7/16 3-1/2

2-55/64

13

2-13/16

9-1/4

10-3/4

3/16

7/8

1-11/16

2-1/4

7-1/2

5-1/2

3-3/4

15/16

1-29/32

3-15/16 4

3-21/64

14-1/4

3-5/16

10

11-7/8

7/32

1

2

2-1/2

8-7/16

6-15/32

4-1/8

1-1/8

2-3/16
