Bearing

Series

Shaft Size*

TRIDENT SEAL

Labyrinth Seal

Non Expansion

Expansion

Non Expansion

Expansion

Part No.

  Part Name

Part No.

  Part Name

Part No.

  Part Name

Part No.

  Part Name

22208

1-3/8

1-7/16

070644

070645

FC-S2-106R

FC-S2-107R

070671

070672

FC-S2-106RE

FC-S2-107RE

070698

070699

FC-S2-106L

FC-S2-107L

070725

070726

FC-S2-106LE

 FC-S2-107LE

22209

1-11/16

070648

FC-S2-111R

070675

FC-S2-111RE

070702

FC-S2-111L

070729

FC-S2-111LE

22210

1-15/16

2

070650

070651

FC-S2-115R

FC-S2-200R

070677

070678

FC-S2-115RE

FC-S2-200RE

070704

070705

FC-S2-115L

 FC-S2-200L

070731

070732

FC-S2-115LE

FC-S2-200LE

22211

2-3/16

070652

FC-S2-203R

070679

FC-S2-203RE

070706

FC-S2-203L

070733

FC-S2-203LE

22213

2-7/16

070654

FC-S2-207R

070681

FC-S2-207RE

070708

FC-S2-207L

070735

FC-S2-207LE

22215

2-11/16

070656

FC-S2-211R

070683

FC-S2-211RE

070710

FC-S2-211L

070737

FC-S2-211LE

2-15/16

070657

FC-S2-215R

070684

FC-S2-215RE

070711

FC-S2-215L

070738

FC-S2-215LE

3

070658

FC-S2-300R

070685

FC-S2-300RE

070712

FC-S2-300L

070739

FC-S2-300LE

22218

3-7/16

070660

FC-S2-307R

070687

FC-S2-307RE

070714

FC-S2-307L

070741

FC-S2-307LE

22220

3-15/16

070662

FC-S2-315R

070689

FC-S2-315RE

070716

FC-S2-315L

070743

FC-S2-315LE

22222

4-7/16

071521

EFC-S2-407R

071523

EFC-S2-407RE

071525

EFC-S2-407L

071527

EFC-S2-407LE

22226

4-15/16

071522

EFC-S2-415R

071524

EFC-S2-415RE

071526

EFC-S2-415L

071528

EFC-S2-415LE

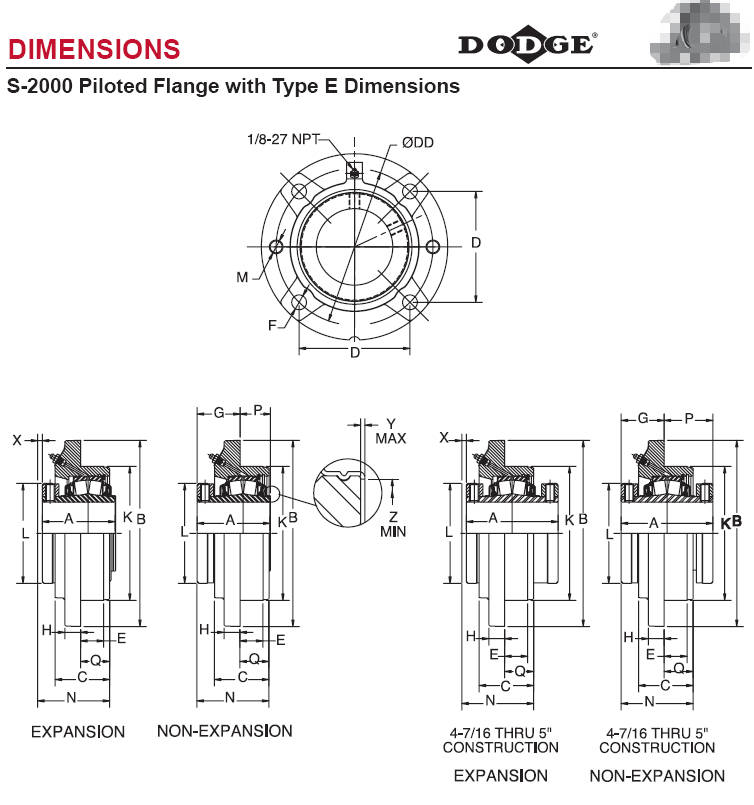

SHAFT

SIZE

A

B

C

D

DD

E

F

BOLT

DIA.

G

H

K

L

M

N

P

Q

X

TOTAL

EXP.

Y

Z

SET

SCREW

SIZE

S/S

TORQUE

IN/LBS

1-3/8

1-7/16

2.53

5.25

1.84

3.09

4.375

0.75

3/8

1.31

0.50

3.625

2.55

3/8-16

2.53

1.22

1.22

0.19

0.020

1.80

5/16

165

1-11/16

2.67

6.13

1.91

3.63

5.125

0.88

7/16

1.45

0.50

4.250

3.01

7/16-14

2.72

1.22

1.26

0.25

0.020

2.08

5/16

165

1-15/16

2

2.84

6.38

2.00

3.80

5.375

0.88

7/16

1.59

0.56

4.500

3.44

7/16-14

2.86

1.25

1.26

0.25

0.020

2.30

3/8

290

2-3/16

2.94

7.13

2.19

4.25

6.000

1.00

1/2

1.56

0.56

5.000

3.50

1/2-13

2.98

1.38

1.42

0.25

0.025

2.59

3/8

290

2-7/16

3.20

7.63

2.50

4.59

6.500

1.00

1/2

1.64

0.63

5.500

4.06

1/2-13

3.20

1.56

1.56

0.25

0.025

2.94

3/8

290

2-11/16

2-15/16

3

3.59

8.75

2.63

5.30

7.500

1.25

5/8

2.03

0.75

6.375

4.61

5/8-11

3.64

1.56

1.63

0.25

0.025

3.47

1/2

620

3-7/16

4.01

10.25

3.00

6.09

8.625

1.26

3/4

2.36

0.94

7.375

5.50

3/4-10

3.88

1.65

1.52

0.25

0.025

4.05

1/2

620

3-15/16

4.47

10.88

3.50

6.63

9.375

1.47

3/4

2.66

1.13

8.125

6.00

3/4-10

4.56

1.81

1.91

0.31

0.025

4.50

5/8

1325

4-7/16

6.53

13.50

4.58

5.88

11.750

1.45

3/4 **

3.00

0.94

10.250

6.45

3/4-10

5.63

3.53

2.63

0.38

N/A

N/A

5/8

1325

4-15/16

6.91

14.75

4.88

6.38

12.750

1.70

7/8 **

2.97

1.25

11.000

7.45

7/8-9

5.95

3.94

3.01

0.38

N/A

N/A

5/8

1325
