Bearing

Shaft Size Inch

TRIDENT Seal

Labyrinth Seal

Non-Expansion

Expansion

Non-Expansion

Expansion

Part No.

Part Name

Part No.

Part Name

Part No.

Part Name

Part No.

Part Name

22210

1-15/16 2

070361 070362

P4B-S2-115R  P4B-S2-200R

070379 070380

P4B-S2-115RE  P4B-S2-200RE

070397 070398

P4B-S2-115L  P4B-S2-200L

070415 070416

P4B-S2-115LE P4B-S2-200LE

22211

2-3/16

070363

P4B-S2-203R

070381

P4B-S2-203RE

070399

P4B-S2-203L

070417

P4B-S2-203LE

22213

2-7/16

070365

P4B-S2-207R

070383

P4B-S2-207RE

070401

P4B-S2-207L

070419

P4B-S2-207LE

22215

2-11/16

070367

P4B-S2-211R

070385

P4B-S2-211RE

070403

P4B-S2-211L

070421

P4B-S2-211LE

2-15/16

070368

P4B-S2-215R

070386

P4B-S2-215RE

070404

P4B-S2-215L

070422

P4B-S2-215LE

3

070369

P4B-S2-300R

070387

P4B-S2-300RE

070405

P4B-S2-300L

070423

P4B-S2-300LE

22218

3-7/16

070371

P4B-S2-307R

070389

P4B-S2-307RE

070407

P4B-S2-307L

070425

P4B-S2-307LE

22220

3-15/16

070373

P4B-S2-315R

070391

P4B-S2-315RE

070409

P4B-S2-315L

070427

P4B-S2-315LE

22222

4-7/16

070375

P4B-S2-407R

070393

P4B-S2-407RE

070411

P4B-S2-407L

070429

P4B-S2-407LE

22226

4-15/16

070377

P4B-S2-415R

070395

P4B-S2-415RE

070413

P4B-S2-415L

070431

P4B-S2-415LE

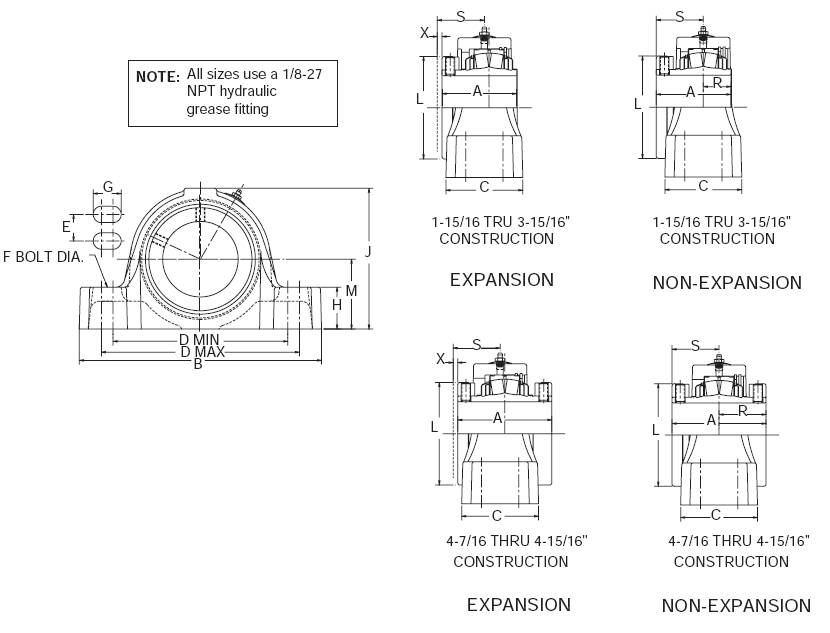

SHAFT SIZE

A

B

C

D

E

F BOLT  DIA.

G

H

J

L

M

R

S

X TOTAL  EXP.  KKK

MIN

MAX

1-15/16 2

2-27/32

8

3-3/16

6-1/16

6-7/16

1-19/32

1/2

13/16

1-5/16

4-9/16

3-7/16

2-1/4

27/32

2

1/4

2-3/16

2-15/16

8-7/8

3-1/4

6-9/16

6-15/16

1-11/16

1/2

13/16

1-1/2

5

3-3/4

2-1/2

29/32

2-1/32

1/4

2-7/16

3-13/64

9-1/4

3-3/8

6-15/16

7-5/16

1-3/4

1/2

13/16

1-5/8

5-19/32

4-1/16

2-3/4

1-5/64

2-1/8

1/4

2-11/16 2-15/16 3

3-19/32

10-7/16

3-3/4

7-15/16

8-5/16

1-7/8

5/8

15/16

1-7/8

6-7/16

4-45/64

3-1/4

1-3/32

2-1/2

1/4

3-7/16

4-1/64

13

4-1/8

9-3/8

10-5/8

2

3/4

1-1/2

2-1/4

7-9/16

5-1/2

3-3/4

1-7/16

2-37/64

1/4

3-15/16

4-15/32

15-1/4

4-1/2

12-1/8

12-7/8

2-1/4

3/4

1-1/4

2-7/16

8-7/16

6

4-1/4

1-41/64

2-53/64

5/16

4-7/16

6-17/32

16-1/2

4-3/4

13

14

2-1/2

3/4

1-3/8

2-3/4

9-5/8

6-29/64

4-3/4

3-5/64

3-29/64

3/8

4-15/16

6-29/32

18-5/8

5-3/8

15

16

2-3/4

7/8

1-1/2

3

11-1/8

7-29/64

5-1/2

3-17/64

3-41/64

3/8
