SHAFT SIZE

#

PART NUMBER

PART NAME

WEIGHT LBS (APPROX)

35mm

023700

S1U-DI-035M

5

40mm

023701

S1U-DI-040M

6

45mm

023702

S1U-DI-045M

8

50mm

023703

S1U-DI-050M

8

55mm

023704

S1U-DI-055M

10

60mm

023705

S1U-DI-060M

11

65mm

023706

S1U-DI-065M

10

70mm

023707

S1U-D9-070M

17

75mm

023708

S1U-DI-075M

17

80mm

023709

S1U-DI-080M

33

85mm

023710

S1U-DI-085M

32

90mm

023711

S1U-DI-090M

31

100mm

023712

S1U-DI-100M

42

110mm

023713

S1U-D1-110M

55

115mm

023714

S1U-DI-115M

71

125mm

023715

S1U-DI-125M

85

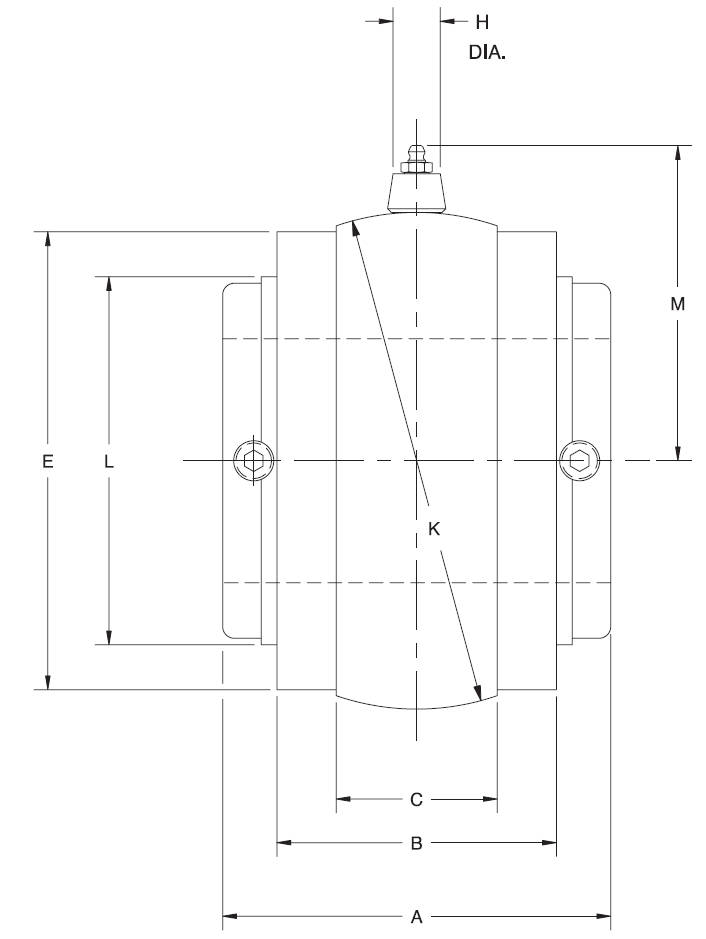

SHAFT SIZE

(mm)

A

B

C

E

H DIA

K

L

M

MACH

SIZE

CAST

SIZE

35mm

3.00

2.063

1.156

3.250

3-5/16

0.688

3.625*

2.750

2.640

40mm

3.375

2.313

1.188

3.750

3-13/16

.0688

4.125*

3.188

2.890

45mm 50mm

3.500

2.875

1.500

4.125

4-3/16

0.688

4.562*

3.438

3.100

55mm

3.750

2.563

1.563

4.500

4-5/8

0.688

5.000*

3.750

3.320

60mm 65mm

4.000

2.750

1.438

4.812

4-7/8

0.688

5.186*

4.063

3.410

70mm 75mm

4.500

3.000

1.875

5.563

5-5/8

0.688

6.061*

4.719

3.850

80mm 85mm 90mm

5.000

3.500

2.00

6.813

6-7/8

0.688

7.373#

5.531

4.510

100mm

6.250

4.500

2.375

7.438

7-1/2

0.313

7.997#

6.125

5.160

110mm 115mm

6.750

4.625

2.375

8.313

8-3/8

0.313

8.872#

6.438

5.600

125mm

7.250

5.125

2.875

9.563

9-5/8

0.313

10.184#

7.438

6.260
