| F2BZ-DL-015、F2BZ-DL-102 |
|
上海川代轴承机械有限公司 新闻动态 2026-4-13
|
 |
|
Series |
Shaft
Size |
Part No. |
Description |
|
204 |
3/4
20mm |
056696
126646 |
F2BZ-DL-012
F2BZ-DL-20M |
|
205 |
7/8 |
067997 |
F2BZ-DL-014 |
|
15/16 |
@ |
F2BZ-DL-015 |
|
1 |
056867 |
F2BZ-DL-100 |
|
25mm |
126647 |
F2BZ-DL-25M |
|
206 |
1-1/8 |
@ |
F2BZ-DL-102 |
|
1-3/16 |
@ |
F2BZ-DL-103 |
|
1-1/4 |
064473 |
F2BZ-DL-104S |
|
30mm |
126648 |
F2BZ-DL-30M |
|
207 |
1-1/4 |
@ |
F2BZ-DL-104 |
|
1-3/8 |
@ |
F2BZ-DL-106 |
|
1-7/16 |
@ |
F2BZ-DL-107 |
|
35mm |
126649 |
F2BZ-DL-35M |
|
208 |
1-1/2
40mm |
065770
126650 |
F2BZ-DL-108
F2BZ-DL-40M |
|
209 |
1-5/8 |
@ |
F2BZ-DL-110L |
|
1-11/16 |
@ |
F2BZ-DL-111 |
|
1-3/4 |
@ |
F2BZ-DL-112 |
|
45mm |
126651 |
F2BZ-DL-45M |
|
210 |
1-15/16 |
067958 |
F2BZ-DL-115 |
|
2 |
065771 |
F2BZ-DL-200 |
|
50mm |
126652 |
F2BZ-DL-50M |
|

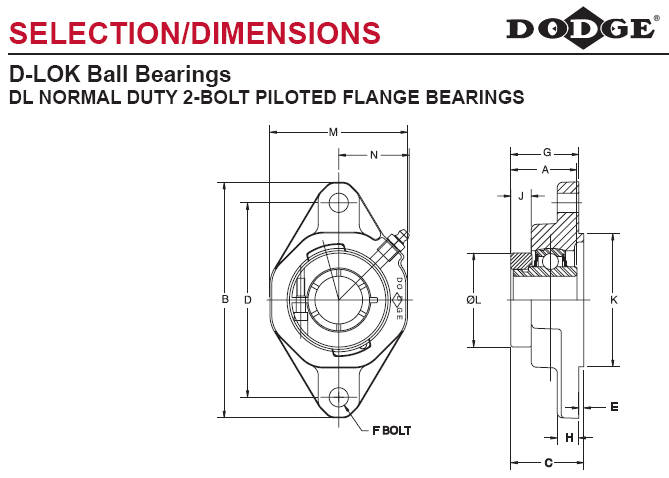

Series |
Shaft Size |
Weight
lbskg |
A |
B |
C |
D |
E |
F
Bolt Dia. |
G |
H |
J |
K |
L |
M |
N |
|
204 |
3/4
20mm |
1.4
0.6 |
1-9/32
32.5 |
4-27/64
112.3 |
1-17/32
38.8 |
3-17/32
89.7 |
0.138
3.5 |
3/8
M10 |
1-25/64
35.3 |
29/64
11.5 |
3/8
9.5 |
2.1654
55.0 |
1-45/64
43.3 |
2-3/8
60.3 |
1-3/8
34.9 |
|
205 |
7/8 |
1.8 |
1-7/16 |
4-7/8 |
1-5/8 |
3-57/64 |
0.138 |
7/16 |
1-31/64 |
29/64 |
15/32 |
2.3622 |
2 |
2-3/4 |
1-9/16 |
|
15/16 |
1.8 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1 |
1.8 |
|
25mm |
0.8 |
36.5 |
123.8 |
41.1 |
98.8 |
3.5 |
M10 |
37.6 |
11.5 |
11.9 |
60.0 |
50.8 |
69.9 |
39.7 |
|
206 |
1-1/8 |
2.4 |
1-9/16 |
5-9/16 |
1-51/64 |
4-19/32 |
0.118 |
7/16 |
1-43/64 |
1/2 |
31/64 |
3.1496 |
2-7/32 |
3-1/4 |
1-3/4 |
|
1-3/16 |
2.4 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1-1/4 |
2.3 |
|
30mm |
1.1 |
39.7 |
141.3 |
45.4 |
116.7 |
3.0 |
M10 |
42.4 |
12.7 |
12.3 |
80.0 |
56.4 |
82.6 |
44.5 |
|
207 |
1-1/4 |
3.5 |
1-3/4 |
6-1/8 |
1-57/64 |
5-1/8 |
0.158 |
1/2 |
1-47/64 |
31/64 |
9/16 |
3.5433 |
2-11/16 |
3-3/4 |
1-57/64 |
|
1-3/8 |
3.5 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1-7/16 |
3.4 |
|
35mm |
1.6 |
44.5 |
155.6 |
48.0 |
130.2 |
4.0 |
M12 |
44.0 |
12.3 |
14.3 |
90.0 |
68.3 |
95.3 |
48.0 |
|
208 |
1-1/2
40mm |
4.8
2.2 |
2
50.8 |
6-3/4
171.5 |
2-13/64
55.8 |
5-21/32
143.7 |
0.158
4.0 |
1/2
M12 |
2-1/32
51.8 |
1/2
12.7 |
21/32
16.7 |
3.9370
100.0 |
2-47/64
69.5 |
4-1/8
104.8 |
1-7/8
47.6 |
|
209 |
1-5/8 |
5.2 |
2 |
7-1/16 |
2-13/64 |
5-27/32 |
0.158 |
1/2 |
2-1/32 |
31/64 |
21/32 |
4.1339 |
2-63/64 |
4-3/8 |
1-31/32 |
|
1-11/16 |
5.2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1-3/4 |
5.2 |
|
45mm |
2.4 |
50.8 |
179.4 |
55.8 |
148.4 |
4.0 |
M12 |
51.8 |
12.3 |
16.7 |
105.0 |
75.8 |
111.1 |
50.0 |
|
210 |
1-15/16 |
6.0 |
2-3/32 |
7-7/16 |
2-29/64 |
6-3/16 |
0.158 |
9/16 |
2-19/64 |
5/8 |
11/16 |
4.1339 |
3-15/64 |
4-9/16 |
2-1/32 |
|
2 |
5.9 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
50mm |
2.6 |
53.2 |
188.9 |
62.1 |
157.2 |
4.0 |
M16 |
58.1 |
15.9 |
17.5 |
105.0 |
82.2 |
115.9 |
51.6 |
|
F2BZ-DL-015、F2BZ-DL-102现货供应，如有需要请及时联系我们。上海川代轴承机械有限公司同时销售
