Series

Shaft Size

Standard

No Lube/Sealed for Life (-NL)

Part No.

Description

Part No.

Description

204

3/4 20mm

128757 126611

F2B-DL-012 F2B-DL-20M

052931 @

F2B-DL-012-NL F2B-DL-20M-NL

205

7/8

128758

F2B-DL-014

@

F2B-DL-014-NL

15/16

128759

F2B-DL-015

059850

F2B-DL-015-NL

1

128760

F2B-DL-100

052984

F2B-DL-100-NL

25mm

126612

F2B-DL-25M

059680

F2B-DL-25M-NL

206

1-1/8

128761

F2B-DL-102

@

F2B-DL-102-NL

1-3/16

128762

F2B-DL-103

@

F2B-DL-103-NL

1-1/4

128763

F2B-DL-104S

@

F2B-DL-104S-NL

30mm

126613

F2B-DL-30M

@

F2B-DL-30M-NL

207

1-1/4

128764

F2B-DL-104

058625

F2B-DL-104-NL

1-3/8

128765

F2B-DL-106

@

F2B-DL-106-NL

1-7/16

128766

F2B-DL-107

056961

F2B-DL-107-NL

35mm

126614

F2B-DL-35M

065658

F2B-DL-35M-NL

208

1-1/2 40mm

128767 126615

F2B-DL-108 F2B-DL-40M

059857 @

F2B-DL-108-NL F2B-DL-40M-NL

209

1-5/8

128768

F2B-DL-110L

@

F2B-DL-110L-NL

1-11/16

128769

F2B-DL-111

056962

F2B-DL-111-NL

1-3/4

128770

F2B-DL-112

054142

F2B-DL-112-NL

45mm

126616

F2B-DL-45M

@

F2B-DL-45M-NL

210

1-15/16

128771

F2B-DL-115

056967

F2B-DL-115-NL

2

128772

F2B-DL-200

@

F2B-DL-200-NL

50mm

126617

F2B-DL-50M

@

F2B-DL-50M-NL

211

2

128842

F2B-DLM-200

@

F2B-DLM-200-NL

2-3/16

128774

F2B-DL-203

@

F2B-DL-203-NL

55mm

126618

F2B-DL-55M

@

F2B-DL-55M-NL

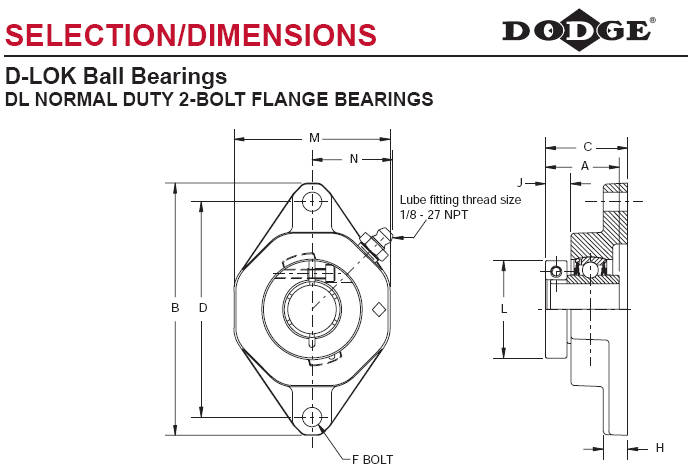

Series

Shaft Size

Weight lbs

A

B

C

D

F Bolt Dia.

H

J

L

M

N

204

3/4 20mm

1.4 0.6

1-9/32 32.5

4-27/64 112.3

1-11/32 34.1

3-17/32 89.7

3/8 M10

13/32 10.3

3/8 9.5

1-45/64 43.3

2-3/8 60.3

1-3/8 34.9

205

7/8

1.8

1-7/16

4-7/8

1-1/2

3-57/64

7/16

15/32

15/32

2

2-3/4

1-9/16

15/16

1.8

1

1.8

25mm

0.8

36.5

123.8

38.1

98.8

M10

11.9

11.9

50.8

69.9

39.7

206

1-1/8

2.4

1-9/16

5-9/16

1-5/8

4-19/32

7/16

17/32

31/64

2-7/32

3-1/4

1-3/4

1-3/16

2.4

1-1/4

2.3

30mm

1.1

39.7

141.3

41.3

116.7

M10

13.5

12.3

56.4

82.6

44.5

207

1-1/4

3.5

1-3/4

6-1/8

1-13/16

5-1/8

1/2

35/64

9/16

2-11/16

3-3/4

1-57/64

1-3/8

3.5

1-7/16

3.4

35mm

1.6

44.5

155.6

46.0

130.2

M12

13.9

14.3

68.3

95.3

48.0

208

1-1/2 40mm

4.8 2.2

2 50.8

6-3/4 171.5

2-5/64 52.8

5-21/32 143.7

1/2 M12

17/32 13.5

21/32 16.7

2-47/64 69.5

4-1/8 104.8

1-7/8 47.6

209

1-5/8

5.2

2

7-1/16

2-7/64

5-27/32

9/16

9/16

21/32

2-63/64

4-3/8

1-31/32

1-11/16

5.2

1-3/4

5.2

45mm

2.4

50.8

179.4

53.6

148.4

M16

14.3

16.7

75.8

111.1

50.0

210

1-15/16

6.0

2-3/32

7-7/16

2-7/32

6-3/16

9/16

35/64

11/16

3-15/64

4-9/16

2-1/32

2

5.9

50mm

2.7

53.2

188.9

56.4

157.2

M16

13.9

17.5

82.1

115.9

51.6

211

2

9.1

2-1/4

8-1/2

2-3/8

7-1/4

5/8

19/32

11/16

3-11/16

5-1/4

2-9/32

2-3/16

9.1

55mm

4.1

57.2

215.9

60.3

184.2

M16

15.1

17.5

93.7

133.4

57.9
