| INS-SXV-008、INS-SXV-012 |
|
上海川代轴承机械有限公司 新闻动态 2025-5-9
|
 |
|
Series |
Shaft
Size |
Part No. |
Description |
|
203 |
1/2 |
130300 |
INS-SXV-008 |
|
5/8 |
130301 |
INS-SXV-010 |
|
17mm |
125644 |
INS-SXV-17M |
|
204 |
3/4
20mm |
131435
125645 |
INS-SXV-012
INS-SXV-20M |
|
205 |
7/8 |
131436 |
INS-SXV-014 |
|
15/16
1 |
131437
131438 |
INS-SXV-015
INS-SXV-100 |
|
25mm |
125646 |
INS-SXV-25M |
|
206 |
1-1/16 |
131439 |
INS-SXV-101 |
|
1-1/8 |
131440 |
INS-SXV-102 |
|
1-3/16 |
131441 |
INS-SXV-103 |
|
1-1/4 |
131442 |
INS-SXV-104S |
|
30mm |
125647 |
INS-SXV-30M |
|
207 |
1-1/4 |
131443 |
INS-SXV-104 |
|
1-5/16 |
131444 |
INS-SXV-105 |
|
1-3/8 |
131445 |
INS-SXV-106 |
|
1-7/16 |
131446 |
INS-SXV-107 |
|
35mm |
125648 |
INS-SXV-35M |
|
208 |
1-1/2
40mm |
131447
125649 |
INS-SXV-108
INS-SXV-40M |
|
209 |
1-11/16 |
130302 |
INS-SXV-111 |
|
1-3/4 |
130303 |
INS-SXV-112 |
|
45mm |
125650 |
INS-SXV-45M |
|
210 |
1-15/16 |
130305 |
INS-SXV-115 |
|
2 |
130306 |
INS-SXV-200 |
|
50mm |
125651 |
INS-SXV-50M |
|
211 |
2 |
130307 |
INS-SXV-200L |
|
2-3/16 |
130308 |
INS-SXV-203 |
|
55mm |
125652 |
INS-SXV-55M |
|

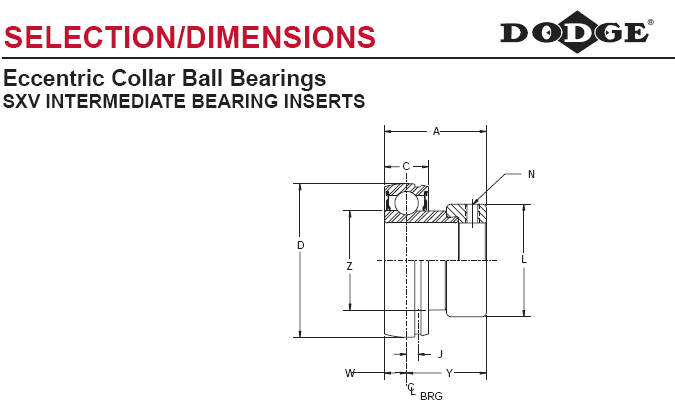

Series |
Shaft Size |
Weight
Lbs kg |
A |
C |
D |
J |
L |
N |
W |
Y |
Z |
|
203 |
1/2 |
0.3 |
1-1/8 |
0.5110 |
1.5748 |
0.150 |
1-1/8 |
10-32 |
1/4 |
7/8 |
31/32 |
|
5/8 |
0.3 |
|
|
|
|
|
|
|
|
|
|
17mm |
0.1 |
28.6 |
13.0 |
40.0 |
3.8 |
28.6 |
M6x1 |
6.4 |
22.2 |
24.6 |
|
204 |
3/4
20mm |
0.3
0.1 |
1-7/32
31.0 |
0.5906
15.0 |
1.8504
47.0 |
0.152
3.9 |
1-5/16
33.3 |
1/4-28
M6x1 |
19/64
7.5 |
59/64
23.4 |
1-1/8
28.6 |
|
205 |
7/8 |
0.5 |
1-7/32 |
0.5906 |
2.0472 |
0.152 |
1-1/2 |
1/4-28 |
19/64 |
59/64 |
1-21/64 |
|
15/16
1 |
0.4
0.4 |
|
|
|
|
|
|
|
|
|
|
25mm |
0.2 |
31.0 |
15.0 |
52.0 |
3.9 |
38.1 |
M6x1 |
11.6 |
19.4 |
33.7 |
|
206 |
1-1/16 |
0.7 |
1-13/32 |
0.7087 |
2.4409 |
0.190 |
1-3/4 |
5/16-24 |
23/64 |
1-3/64 |
1-37/64 |
|
1-1/8 |
0.7 |
|
|
|
|
|
|
|
|
|
|
1-3/16 |
0.7 |
|
|
|
|
|
|
|
|
|
|
1-1/4 |
0.7 |
|
|
|
|
|
|
|
|
|
|
25mm |
0.3 |
35.7 |
18.0 |
62.0 |
4.8 |
44.5 |
M8x1.25 |
9.0 |
26.7 |
40.1 |
|
207 |
1-1/4 |
1.2 |
1-17/32 |
0.7480 |
2.8346 |
0.202 |
2-1/8 |
5/16-24 |
3/8 |
1-5/32 |
1-27/32 |
|
1-5/16 |
1.2 |
|
|
|
|
|
|
|
|
|
|
1-3/8 |
1.1 |
|
|
|
|
|
|
|
|
|
|
1-7/16 |
1.1 |
|
|
|
|
|
|
|
|
|
|
35mm |
0.5 |
38.9 |
19.0 |
72.0 |
5.1 |
54.0 |
M8x1.25 |
9.5 |
29.4 |
46.8 |
|
208 |
1-1/2
40mm |
1.8
0.8 |
1-23/32
43.7 |
0.8661
22.0 |
3.1496
80.0 |
0.224
5.7 |
2-3/8
60.3 |
5/16-24
M10x1.5 |
7/16
11.0 |
1-9/32
32.5 |
2-3/64
52.0 |
|
209 |
1-11/16 |
1.9 |
1-23/32 |
0.8661 |
3.3465 |
0.248 |
2-1/2 |
5/16-24 |
7/16 |
1-9/32 |
2-7/32 |
|
1-3/4 |
1.8 |
|
|
|
|
|
|
|
|
|
|
45mm |
0.8 |
43.7 |
22.0 |
85.0 |
6.3 |
63.5 |
M8x1.25 |
11.0 |
32.5 |
56.4 |
|
210 |
1-15/16 |
2.0 |
1-23/32 |
0.8661 |
3.5433 |
0.248 |
2-3/4 |
3/8-24 |
7/16 |
1-9/32 |
2-7/16 |
|
2 |
1.9 |
|
|
|
|
|
|
|
|
|
|
50mm |
0.9 |
43.7 |
22.0 |
90.0 |
6.3 |
69.9 |
M10x1.5 |
11.0 |
32.5 |
61.9 |
|
211 |
2 |
2.7 |
1-29/32 |
0.9449 |
3.9370 |
0.267 |
3 |
3/8-24 |
15/32 |
1-7/16 |
2-23/32 |
|
2-3/16 |
2.5 |
|
|
|
|
|
|
|
|
|
|
55mm |
1.2 |
48.4 |
24.0 |
100.0 |
6.8 |
76.2 |
M12x1.75 |
11.9 |
36.5 |
69.0 |
|
