| TB-SXR-015、TB-SXR-012 |
|
上海川代轴承机械有限公司 新闻动态 2026-1-18
|
 |
|
Series |
Shaft
Size |
Part No. |
Description |
|
204 |
3/4
20mm |
053219
053411 |
TB-SXR-012
TB-SXR-20M |
|
205 |
7/8 |
@ |
TB-SXR-014 |
|
15/16 |
@ |
TB-SXR-015 |
|
1 |
051885 |
TB-SXR-100 |
|
25mm |
053412 |
TB-SXR-25M |
|
206 |
1-1/16 |
@ |
TB-SXR-101 |
|
1-1/8 |
053339 |
TB-SXR-102 |
|
1-3/16 |
057692 |
TB-SXR-103 |
|
1-1/4 |
067926 |
TB-SXR-104S |
|
30mm |
053413 |
TB-SXR-30M |
|
207 |
1-1/4 |
062307 |
TB-SXR-104 |
|
1-5/16 |
@ |
TB-SXR-105 |
|
1-3/8 |
064536 |
TB-SXR-106 |
|
1-7/16 |
049802 |
TB-SXR-107 |
|
35mm |
053414 |
TB-SXR-35M |
|
208 |
1-1/2
40mm |
064910
053415 |
TB-SXR-108
TB-SXR-40M |
|
209 |
1-5/8 |
@ |
TB-SXR-110 |
|
1-11/16 |
068118 |
TB-SXR-111 |
|
1-3/4 |
049787 |
TB-SXR-112 |
|
45mm |
053416 |
TB-SXR-45M |
|
210 |
1-15/16 |
049803 |
TB-SXR-115 |
|
2 |
@ |
TB-SXR-200 |
|
50mm |
053417 |
TB-SXR-50M |
|
211 |
2 |
@ |
TB-SXR-200L |
|
2-3/16 |
@ |
TB-SXR-203 |
|
55mm |
053418 |
TB-SXR-55M |
|

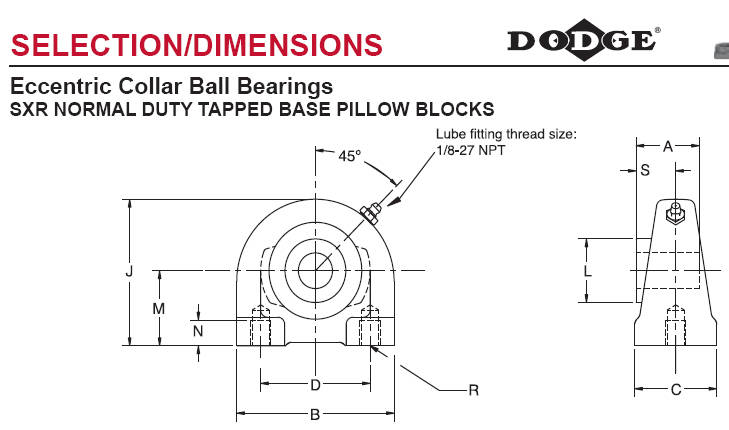

Series |
Shaft Size |
Weight
lbs.kg |
A |
B |
C |
D |
J |
L |
M |
N
Min.
Tap
Depth |
R
Bolt Hole
UNC-
Thread |
S |
|
204 |
3/4
20mm |
1.5
0.6 |
1-23/32
43.7 |
2-7/8
73.0 |
1-1/2
38.1 |
2
50.8 |
2-1/16
65.1 |
1-5/16
33.3 |
1-5/16
33.3 |
1/2
12.7 |
3/8-16
M8 x 1.25 |
1-3/64
26.6 |
|
205 |
7/8 |
2.2 |
1-3/4 |
3 |
1-1/2 |
2 |
2-13/16 |
1-1/2 |
1-7/16 |
1/2 |
3/8-16 |
1-1/16 |
|
15/16
1 |
2.1
2.0 |
|
|
|
|
|
|
|
|
|
|
|
25mm |
0.8 |
44.5 |
76.2 |
38.1 |
50.8 |
71.4 |
38.1 |
36.5 |
12.7 |
M10 x 1.5 |
27.0 |
|
206 |
1-1/16 |
3.2 |
1-29/32 |
4 |
1-1/2 |
3 |
3-3/8 |
1-3/4 |
1-11/16 |
5/8 |
7/16-14 |
1-3/16 |
|
1-1/8 |
3.0 |
|
|
|
|
|
|
|
|
|
|
|
1-3/16 |
2.8 |
|
|
|
|
|
|
|
|
|
|
|
1-1/4 |
2.6 |
|
|
|
|
|
|
|
|
|
|
|
30mm |
1.1 |
48.4 |
101.6 |
38.1 |
76.2 |
85.7 |
44.5 |
42.9 |
15.9 |
M10 x 1.5 |
30.2 |
|
207 |
1-1/4 |
4.4 |
2-1/64 |
4-1/4 |
1-7/8 |
3-1/4 |
3-3/4 |
2-1/8 |
1-7/8 |
3/4 |
1/2-13 |
1-9/32 |
|
1-5/16 |
4.2 |
|
|
|
|
|
|
|
|
|
|
|
1-3/8 |
4.0 |
|
|
|
|
|
|
|
|
|
|
|
1-7/16 |
3.8 |
|
|
|
|
|
|
|
|
|
|
|
35mm |
1.4 |
51.2 |
108.0 |
47.6 |
82.6 |
95.3 |
54.0 |
47.6 |
19.1 |
M10 x 1.5 |
32.5 |
|
208 |
1-1/2
40mm |
4.8
1.8 |
2-7/32
56.4 |
4-5/8
117.5 |
1-7/8
47.6 |
3-1/2
88.9 |
3-15/16
100.0 |
2-3/8
60.3 |
1-15/16
49.2 |
3/4
19.1 |
1/2-13
M12 x 1.75 |
1-3/8
34.9 |
|
209 |
1-5/8 |
5.9 |
2-7/32 |
5 |
2 |
3-3/4 |
4-1/4 |
2-1/2 |
2-1/8 |
3/4 |
1/2-13 |
1-3/8 |
|
1-11/16
1-3/4 |
5.7
5.5 |
|
|
|
|
|
|
|
|
|
|
|
45mm |
2.1 |
56.4 |
127.0 |
50.8 |
95.3 |
108.0 |
63.5 |
54.0 |
19.1 |
M12 x 1.75 |
34.9 |
|
210 |
1-15/16 |
6.5 |
2-15/32 |
5-1/2 |
2 |
4 |
4-5/8 |
2-3/4 |
2-1/4 |
7/8 |
5/8-11 |
1-1/2 |
|
2 |
6.3 |
|
|
|
|
|
|
|
|
|
|
|
50mm |
2.4 |
62.7 |
139.7 |
50.8 |
101.6 |
117.5 |
69.9 |
57.2 |
22.2 |
M16 x 2 |
38.1 |
|
211 |
2 |
9.2 |
2-13/16 |
5-1/2 |
2 |
4 |
4-5/8 |
3 |
2-1/4 |
7/8 |
5/8-11 |
1-23/32 |
|
2-3/16 |
9.0 |
|
|
|
|
|
|
|
|
|
|
|
55mm |
3.3 |
71.4 |
139.7 |
50.8 |
101.6 |
117.5 |
76.2 |
57.2 |
22.2 |
M16 x 2 |
43.7 |
|
TB-SXR-015、TB-SXR-012现货供应，如有需要请及时联系我们。上海川代轴承机械有限公司同时销售
