| INS-VSC-010、INS-VSC-014 |
|
上海川代轴承机械有限公司 新闻动态 2025-8-24
|
 |
|
Series |
Shaft
Size |
Part
No. |
Description |
|
203 |
1/2 |
389923 |
INS-VSC-008 |
|
5/8 |
389924 |
INS-VSC-010 |
|
17mm |
125636 |
INS-VSC-17M |
|
204 |
3/4
20mm |
389925
125637 |
INS-VSC-012
INS-VSC-20M |
|
205 |
7/8 |
389936 |
INS-VSC-014 |
|
15/16 |
389937 |
INS-VSC-015 |
|
1 |
389926 |
INS-VSC-100 |
|
25mm |
125638 |
INS-VSC-25M |
|
206 |
1-1/8 |
389938 |
INS-VSC-102 |
|
1-3/16 |
389927 |
INS-VSC-103 |
|
1-1/4 |
389934 |
INS-VSC-104S |
|
30mm |
123235 |
INS-VSC-30M |
|
207 |
1-1/4 |
389928 |
INS-VSC-104 |
|
1-3/8 |
389939 |
INS-VSC-106 |
|
1-7/16 |
389929 |
INS-VSC-107 |
|
35mm |
125639 |
INS-VSC-35M |
|
208 |
1-1/2
40mm |
389930
125640 |
INS-VSC-108
INS-VSC-40M |
|
209 |
1-11/16 |
389940 |
INS-VSC-111 |
|
1-3/4 |
389941 |
INS-VSC-112 |
|
45mm |
125641 |
INS-VSC-45M |
|
210 |
1-15/16 |
389931 |
INS-VSC-115 |
|
2 |
389932 |
INS-VSC-200 |
|
50mm |
125642 |
INS-VSC-50M |
|
211 |
2 |
389935 |
INS-VSC-200L |
|
2-3/16 |
389933 |
INS-VSC-203 |
|
55mm |
125643 |
INS-VSC-55M |
|

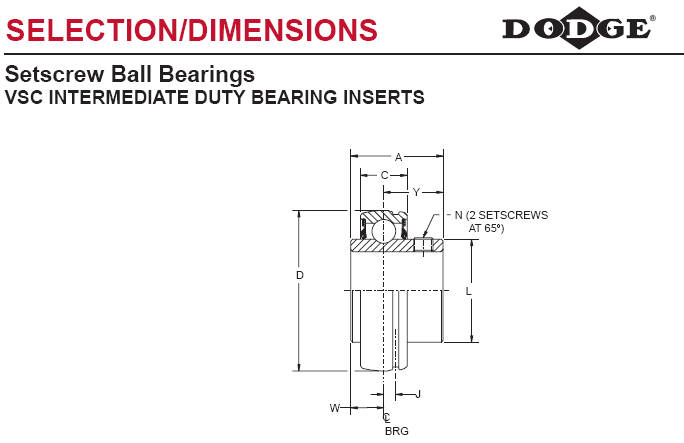

Series |
Shaft Size |
Weight
Lbs .kg. |
A |
C |
D |
J |
L |
N |
W |
Y |
|
203 |
1/2 |
0.23 |
15/16 |
0.5110 |
1.5748 |
0.150 |
31/32 |
10-32 |
19/64 |
41/64 |
|
5/8 |
0.21 |
|
|
|
|
|
|
|
|
|
17mm |
0.10 |
23.8 |
13.0 |
40.0 |
3.8 |
24.6 |
M5 x.8 |
7.5 |
16.3 |
|
204 |
3/4
20mm |
0.25
0.11 |
1-1/16
27.0 |
0.5906
15.0 |
1.8504
47.0 |
0.152
3.9 |
1-21/64
28.6 |
1/4-28
M6 x 1 |
21/64
8.3 |
49/64
18.7 |
|
205 |
7/8 |
0.41 |
1-3/32 |
0.5906 |
2.0472 |
0.152 |
1-37/64 |
5/16-24 |
25/64 |
29/32 |
|
15/16 |
0.38 |
|
|
|
|
|
|
|
|
|
1 |
0.25 |
|
25mm |
0.17 |
27.8 |
15.0 |
52.0 |
3.9 |
33.7 |
M6 x 1 |
8.3 |
19.4 |
|
206 |
1-1/8 |
0.61 |
1-19/64 |
0.7067 |
2.4409 |
0.190 |
1-27/32 |
5/16-24 |
13/32 |
1-1/32 |
|
1-3/16 |
0.58 |
|
|
|
|
|
|
|
|
|
1-1/4 |
0.56 |
|
30mm |
0.25 |
32.9 |
18.0 |
62.0 |
4.8 |
40.1 |
M8 x 1.25 |
9.9 |
23.0 |
|
207 |
1-1/4 |
0.92 |
1-7/16 |
0.7480 |
2.8346 |
0.202 |
2-3/64 |
5/16-24 |
15/32 |
1-3/32 |
|
1-3/8 |
0.88 |
|
|
|
|
|
|
|
|
|
1-7/16 |
0.75 |
|
35mm |
0.38 |
36.5 |
19.0 |
72.0 |
5.1 |
46.8 |
M8 x 1.25 |
10.3 |
26.2 |
|
208 |
1-1/2
40mm |
1.20
0.52 |
1-9/16
39.7 |
0.8661
22.0 |
3.1496
80.0 |
0.224
5.7 |
2-7/32
52.0 |
5/16-24
M8 x 1.25 |
15/32
11.9 |
1-1/8
27.8 |
|
209 |
1-11/16 |
1.41 |
1-19/32 |
0.8661 |
3.3465 |
0.248 |
2-7/16 |
3/8-24 |
15/32 |
1-5/32 |
|
1-3/4 |
1.34 |
|
|
|
|
|
|
|
|
|
45mm |
0.61 |
40.5 |
22.0 |
85.0 |
6.3 |
56.4 |
M8 x 1.25 |
11.9 |
28.6 |
|
210 |
1-15/16 |
1.46 |
1-5/8 |
0.8661 |
3.5433 |
0.248 |
2-23/32 |
3/8-24 |
1/2 |
1-7/32 |
|
2 |
1.37 |
|
|
|
|
|
|
|
|
|
50mm |
0.63 |
41.3 |
22.0 |
90.0 |
6.3 |
61.9 |
M10 x 1.5 |
11.9 |
29.4 |
|
211 |
2 |
2.24 |
1-23/32 |
0.9449 |
3.9370 |
0.267 |
2-23/32 |
3/8-24 |
1/2 |
1-7/32 |
|
2-3/16 |
1.95 |
|
|
|
|
|
|
|
|
|
55mm |
0.97 |
43.7 |
24.0 |
100.0 |
6.8 |
69.1 |
M10 x 1.5 |
12.7 |
31.0 |
|
INS-VSC-010、INS-VSC-014现货供应，如有需要请及时联系我们。上海川代轴承机械有限公司同时销售
