| NSTU-SC-40M、NSTU-SC-111 |
|
上海川代轴承机械有限公司 新闻动态 2025-5-1
|
 |
|
Series |
Shaft
Size |
Standard |
Sealed For Life |
|
Part No. |
Description |
Part No. |
Description |
|
208 |
1-1/2 |
125156 |
NSTU-SC-108 |
@ |
NSTU-SC-108-NL |
|
1-5/8 |
125370 |
NSTU-SC-110 |
@ |
NSTU-SC-110-NL |
|
40mm |
125904 |
NSTU-SC-40M |
@ |
NSTU-SC-40M-NL |
|
209 |
1-5/8 |
065593 |
NSTU-SC-110L |
@ |
NSTU-SC-110L-NL |
|
1-11/16 |
125157 |
NSTU-SC-111 |
052939 |
NSTU-SC-111-NL |
|
1-3/4 |
125371 |
NSTU-SC-112 |
068184 |
NSTU-SC-112-NL |
|
45mm |
125905 |
NSTU-SC-45M |
@ |
NSTU-SC-45M-NL |
|
210 |
1-15/16 |
125158 |
NSTU-SC-115 |
125159 |
NSTU-SC-115-NL |
|
2 |
125372 |
NSTU-SC-200 |
068659 |
NSTU-SC-200-NL |
|
50mm |
125906 |
NSTU-SC-50M |
@ |
NSTU-SC-50M-NL |
|
211 |
2 |
135171 |
NSTU-SCM-200 |
@ |
NSTU-SCM-200-NL |
|
2-3/16 |
125160 |
NSTU-SC-203 |
@ |
NSTU-SC-203-NL |
|
2-1/4 |
125373 |
NSTU-SC-204 |
@ |
NSTU-SC-204-NL |
|
55mm |
125907 |
NSTU-SC-55M |
@ |
NSTU-SC-55M-NL |
|
212 |
2-1/4 |
135172 |
NSTU-SCM-204 |
@ |
NSTU-SCM-204-NL |
|
2-7/16 |
125162 |
NSTU-SC-207 |
@ |
NSTU-SC-207-NL |
|
60mm |
125908 |
NSTU-SC-60M |
@ |
NSTU-SC-60M-NL |
|

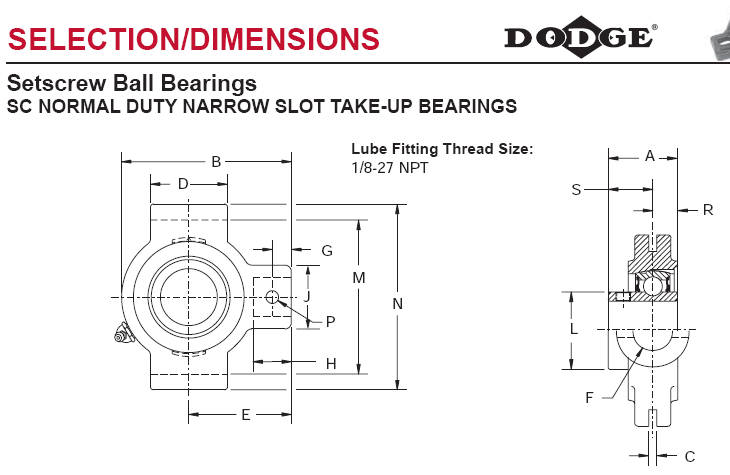

Series |
Shaft Size |
Weight Take-Up lbs.
Framekgs.
No. Ref. |
A |
B |
C * |
D |
E |
F
Screw Dia |
G |
H |
J |
L |
M # |
N |
P
Pin Dia |
R |
S |
|
208 |
1-1/2 |
4.7 |
NS400 |
1-11/16 |
5-3/8 |
5/16 |
3 |
3-1/4 |
7/8 |
21/32 |
1-5/32 |
1-5/8 |
2-3/64 |
4 |
4-3/4 |
3/8 |
19/32 |
1-3/32 |
|
1-5/8 |
4.6 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
40mm |
2.1 |
42.9 |
136.5 |
7.9 |
76.2 |
82.6 |
22.2 |
16.7 |
29.4 |
41.3 |
52.0 |
101.6 |
120.7 |
9.5 |
15.1 |
27.8 |
|
209 |
1-5/8 |
4.9 |
NS400 |
1-23/32 |
5-7/16 |
5/16 |
3 |
3-1/4 |
7/8 |
23/32 |
1-7/32 |
1-5/8 |
2-7/32 |
4 |
4-3/4 |
3/8 |
19/32 |
1-1/8 |
|
1-11/16
1-3/4 |
4.8
4.7 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
45mm |
2.1 |
43.7 |
138.1 |
7.9 |
76.2 |
82.6 |
22.2 |
18.3 |
31.0 |
41.3 |
56.4 |
101.6 |
120.7 |
9.5 |
15.1 |
28.6 |
|
210 |
1-15/16 |
4.9 |
NS400 |
1-3/4 |
5-1/2 |
5/16 |
3 |
3-1/4 |
7/8 |
19/32 |
1-3/32 |
1-5/8 |
2-7/16 |
4 |
4-3/4 |
3/8 |
19/32 |
1-5/32 |
|
2 |
4.8 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
50mm |
2.2 |
44.5 |
139.7 |
7.9 |
76.2 |
82.6 |
22.2 |
15.1 |
27.8 |
41.3 |
61.9 |
101.6 |
120.7 |
9.5 |
15.1 |
29.4 |
|
211 |
2 |
6.8 |
NS407 |
1-27/32 |
6-1/8 |
5/16 |
3-1/2 |
3-5/8 |
1 |
11/16 |
1-9/32 |
1-3/4 |
2-23/32 |
4-7/16 |
5-3/8 |
7/16 |
5/8 |
1-7/32 |
|
2-3/16
2-1/4 |
6.6
6.5 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
55mm |
3.0 |
46.8 |
155.6 |
7.9 |
88.9 |
92.1 |
25.4 |
17.5 |
32.5 |
44.5 |
69.1 |
112.7 |
136.5 |
11.1 |
15.9 |
31.0 |
|
212 |
2-1/4 |
8.7 |
NS415 |
1-63/64 |
6-11/16 |
5/16 |
3-3/4 |
3-7/8 |
1 |
11/16 |
1-9/32 |
1-5/8 |
2-31/32 |
4-15/16 |
5-3/4 |
7/16 |
43/64 |
1-5/16 |
|
2-7/16 |
8.4 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
60mm |
4.9 |
50.4 |
169.9 |
7.9 |
95.3 |
98.4 |
25.4 |
17.5 |
32.5 |
41.3 |
75.4 |
125.4 |
146.1 |
11.1 |
17.1 |
33.3 |
|
