| FC-SCM-103、FC-SCM-35M |
|
上海川代轴承机械有限公司 新闻动态 2025-9-13
|
 |
|
Series |
Shaft
Size |
Part
No. |
Description |
|
206 |
1
25mm |
126167
125940 |
FC-SCM-100
FC-SCM-25M |
|
207 |
1-3/16 |
126168 |
FC-SCM-103 |
|
1-1/4 |
124224 |
FC-SC-104 |
|
30mm |
125941 |
FC-SCM-30M |
|
208 |
1-7/16 |
126170 |
FC-SCM-107 |
|
1-1/2 |
126171 |
FC-SCM-108 |
|
35mm |
125942 |
FC-SCM-35M |
|
209 |
1-1/2 |
056492 |
FC-SCM-108L |
|
1-5/8 |
065644 |
FC-SC-110L |
|
40mm |
125943 |
FC-SCM-40M |
|
210 |
1-11/16 |
126172 |
FC-SCM-111 |
|
1-3/4 |
126173 |
FC-SCM-112 |
|
45mm |
125944 |
FC-SCM-45M |
|
211 |
1-15/16 |
126174 |
FC-SCM-115 |
|
2 |
126175 |
FC-SCM-200 |
|
50mm |
125945 |
FC-SCM-50M |
|
212 |
2-3/16 |
126176 |
FC-SCM-203 |
|
2-1/4 |
126177 |
FC-SCM-204 |
|
55mm |
125946 |
FC-SCM-55M |
|
214 |
2-7/16 |
126178 |
FC-SCM-207 |
|
2-1/2 |
126179 |
FC-SCM-208 |
|
65mm |
125947 |
FC-SCM-65M |
|
216 |
2-15/16 |
126180 |
FC-SCM-215 |
|
3 |
126182 |
FC-SCM-300 |
|
75mm |
125948 |
FC-SCM-75M |
|
218 |
3-7/16 |
126183 |
FC-SCM-307 |
|
3-1/2 |
126184 |
FC-SCM-308 |
|
85mm |
125949 |
FC-SCM-85MK |
|

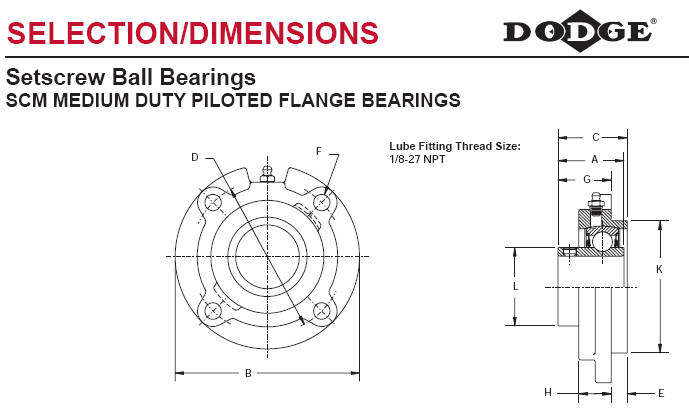

Series |
Shaft Size |
Weight
lbs. |
A |
B |
C |
D |
E |
F
Bolt Dia. |
G |
H |
K* |
L |
|
206 |
1
25mm |
3.3
1.4 |
1-25/64
35.3 |
4-3/8
111.1 |
1-1/2
38.1 |
3-5/8
92.1 |
1/4
6.4 |
3/8
M10 |
1-1/4
31.8 |
13/16
20.6 |
3
76.2 |
1-37/64
40.1 |
|
207 |
1-3/16 |
4.2 |
1-17/32 |
5 |
1-49/64 |
4-1/8 |
3/8 |
3/8 |
1-25/64 |
27/32 |
3-3/8 |
1-27/32 |
|
1-1/4 |
4.2 |
|
|
|
|
|
|
|
|
|
|
|
30mm |
1.9 |
38.9 |
127.0 |
44.8 |
104.8 |
9.5 |
M10 |
35.3 |
21.4 |
85.7 |
46.8 |
|
208 |
1-7/16 |
4.8 |
1-11/16 |
5-1/4 |
1-57/64 |
4-3/8 |
7/16 |
7/16 |
1-29/64 |
57/64 |
3-5/8 |
2-3/64 |
|
1-1/2 |
4.6 |
|
|
|
|
|
|
|
|
|
|
|
35mm |
2.1 |
42.9 |
133.4 |
48.0 |
111.1 |
11.1 |
M12 |
36.9 |
22.6 |
92.1 |
52.0 |
|
209 |
1-1/2 |
5.6 |
1-23/32 |
5-3/4 |
1-57/64 |
4-3/4 |
7/16 |
1/2 |
1-29/64 |
29/32 |
4 |
2-7/32 |
|
1-5/8 |
5.6 |
|
|
|
|
|
|
|
|
|
|
|
40mm |
2.5 |
43.7 |
146.1 |
48.0 |
120.7 |
11.1 |
M12 |
36.9 |
23.0 |
101.6 |
56.4 |
|
210 |
1-11/16 |
6.4 |
1-3/4 |
6-1/8 |
1-61/64 |
5-1/8 |
15/32 |
1/2 |
1-31/64 |
59/64 |
4-1/4 |
2-7/16 |
|
1-3/4 |
6.3 |
|
|
|
|
|
|
|
|
|
|
|
45mm |
2.9 |
44.5 |
155.6 |
49.6 |
130.2 |
11.9 |
M12 |
37.7 |
23.4 |
108.0 |
61.9 |
|
211 |
1-15/16 |
7.6 |
1-27/32 |
6-3/8 |
2-7/32 |
5-3/8 |
5/8 |
1/2 |
1-19/32 |
1 |
4-1/2 |
2-23/32 |
|
2 |
7.4 |
|
|
|
|
|
|
|
|
|
|
|
50mm |
3.4 |
46.8 |
161.9 |
56.4 |
136.5 |
15.9 |
M12 |
40.5 |
25.4 |
114.3 |
69.1 |
|
212 |
2-3/16 |
9.5 |
1-63/64 |
7-1/8 |
2-29/64 |
6 |
7/8 |
1/2 |
1-37/64 |
1 |
5 |
2-31/32 |
|
2-1/4 |
9.8 |
|
|
|
|
|
|
|
|
|
|
|
55mm |
4.4 |
50.4 |
181.0 |
62.3 |
152.4 |
22.2 |
M12 |
40.1 |
25.4 |
127.0 |
75.4 |
|
214 |
2-7/16 |
13.2 |
2-15/64 |
7-5/8 |
2-49/64 |
6-1/2 |
1-1/8 |
1/2 |
1-41/64 |
1-1/16 |
5-1/2 |
3-5/16 |
|
2-1/2 |
13.0 |
|
|
|
|
|
|
|
|
|
|
|
65mm |
5.9 |
56.8 |
193.7 |
70.2 |
165.1 |
28.6 |
M12 |
41.7 |
27.0 |
139.7 |
84.1 |
|
216 |
2-15/16 |
18.8 |
2-11/64 |
8-3/4 |
3-1/32 |
7-1/2 |
1-1/4 |
5/8 |
1-25/32 |
1-3/16 |
6-3/8 |
3-53/64 |
|
3 |
18.6 |
|
|
|
|
|
|
|
|
|
|
|
75mm |
8.5 |
57.9 |
222.3 |
77.0 |
190.5 |
31.8 |
M16 |
45.2 |
30.2 |
161.9 |
92.1 |
|
218 |
3-7/16 |
28.7 |
2-31/64 |
10-1/4 |
3-19/64 |
8-5/8 |
1-1/8 |
3/4 |
2-11/64 |
1-5/8 |
7-3/8 |
4-23/64 |
|
3-1/2 |
28.5 |
|
|
|
|
|
|
|
|
|
|
|
85mm |
13.5 |
63.1 |
260.4 |
83.7 |
219.1 |
34.9 |
M18 |
55.2 |
41.3 |
187.3 |
110.7 |
|
FC-SCM-103、FC-SCM-35M现货供应，如有需要请及时联系我们。上海川代轴承机械有限公司同时销售
SCH1.1/2,
32007 J2/Q,
71901 CD/P4ADGA,
304KDGZ5FS50000,
JM734449-90B01,
LRT606825,
105HCTUM O-11 P2M3F 24414,
113HCRRTBTL G-75 P2M3F 24780,
4715MS-23T-B10,
1651-213-10,
F-803640.19.RDL-H75C,
PK-B22424H,
24034CJW33C4,
SEA10/NS9XI0TUL,
033825 NSTU-LT7-207,
057906 TB-SC-100-HT,
F-229456,
VF4S-124,
NSR25TBA1UU,
SL01-4926 A,
STE.6219 C3,
TMN60-1,
CRV56LLH/3AS,
NU 224 E.G15,
PS 2 X 3.5,
TB-25,
LWLM9,
7208D,
B300机器皮带,
XH075,
以上为我司部分轴承型号，如需查找其他型号，可登陆我们的现货中心栏目或致电021-52797858转8008进行详细查询，谢谢！
，我们还提供其相关技术信息包括
NSK 万能组合图,
NSK 各种用途轴承,
NSK PE座,
IKO FT,
CRH 形图和数据,
OSBORN HPC-26、HPC-30、HPC-32、HPC-35、HPC-40、HPC-40-1、HPC-47、HPC-50、HPC-52、HPC-62、HPC-62-1、HPC-72、HPC-76、HPC-80、HPC-85、HPC-90、HPC-100、HPC-100-1、HPC-125、HPC-150、OSBORN HPC-200,
WLK06-00-500，WLK08-00-500，WLK10-00-500，WLK12-00-500，WLK14-00-500，WLK16-00-500,
1653-624-10、1653-629-10、1653-521-10,
1623-424-10、1623-523-10、1623-624-10,
【SEALMASTER】 SP-13 参数 13/16 FB-19T 孔径 1 3/16,
RASC 2 3/16 GC1203KRRGT-30738,
ZPS6403YF、ZPS6415F、ZPS6515F、ZPS6615F,
BS65、BS50、BS30、BS85,
BREU35KE5+E5、BREU55KE5+E5、BREU100KE5+E5,
TB-SXV-015、TB-SXV-102,
我们能针对客户的需求提供各种技术服务，具体详细信息请联系川代轴承全国客服热线021-52797858转8008询价，我们将为您提供专业详细的服务。如需查找其他型号，可登陆我们的现货中心栏目或致电021-52797858转8008询价进行详细查询，谢谢！ |
