Series

Shaft Size

Standard

No-Lube/Sealed for Life (-NL) Part

With Flingers

Part No.

Description

Part No.

Description

Part No.

Description

206

1

25mm

126226

125965

F4B-SCM-100

F4B-SCM-25M

052017

@

F4B-SCM-100-NL

F4B-SCM-25M-NL

@

@

F4B-SCM-100-FF

F4B-SCM-25M-FF

207

1-3/16

126227

F4B-SCM-103

@

F4B-SCM-103-NL

064681

F4B-SCM-103-FF

1-1/4

124206

F4B-SC-104

126528

F4B-SC-104-NL

052508

F4B-SC-104-FF

30mm

125966

F4B-SCM-30M

@

F4B-SCM-30M-NL

@

F4B-SCM-30M-FF

208

1-7/16

35mm

126187

125967

F4B-SCM-107

F4B-SCM-35M

@

@

F4B-SCM-107-NL

F4B-SCM-35M-NL

053197

@

F4B-SCM-107-FF

F4B-SCM-35M-FF

209

1-1/2

126188

F4B-SCM-108

062897

F4B-SCM-108-NL

054856

F4B-SCM-108-FF

1-5/8

125170

F4B-SC-110L

@

F4B-SC-110L-NL

@

F4B-SC-110L-FF

40mm

125968

F4B-SCM-40M

@

F4B-SCM-40M-NL

@

F4B-SCM-40M-FF

210

1-11/16

126189

F4B-SCM-111

065576

F4B-SCM-111-NL

050137

F4B-SCM-111-FF

1-3/4

126190

F4B-SCM-112

@

F4B-SCM-112-NL

126274

F4B-SCM-112-FF

45mm

125969

F4B-SCM-45M

@

F4B-SCM-45M-NL

@

F4B-SCM-45M-FF

211

1-15/16

126191

F4B-SCM-115

052302

F4B-SCM-115-NL

126115

F4B-SCM-115-FF

2

126192

F4B-SCM-200

052004

F4B-SCM-200-NL

126132

F4B-SCM-200-FF

50mm

125970

F4B-SCM-50M

@

F4B-SCM-50M-NL

@

F4B-SCM-50M-FF

212

2-3/16

126193

F4B-SCM-203

052003

F4B-SCM-203-NL

050276

F4B-SCM-203-FF

2-1/4

126283

F4B-SCM-204

126537

F4B-SCM-204-NL

054482

F4B-SCM-204-FF

55mm

125971

F4B-SCM-55M

@

F4B-SCM-55M-NL

@

F4B-SCM-55M-FF

214

2-7/16

126194

F4B-SCM-207

052002

F4B-SCM-207-NL

126116

F4B-SCM-207-FF

2-1/2

126195

F4B-SCM-208

065653

F4B-SCM-208-NL

126326

F4B-SCM-208-FF

65mm

125972

F4B-SCM-65M

@

F4B-SCM-65M-NL

@

F4B-SCM-65M-FF

215

2-11/16

70mm

126186

125973

F4B-SCM-211

F4B-SCM-70M

@

@

F4B-SCM-211-NL

F4B-SCM-70M-NL

064715

@

F4B-SCM-211-FF

F4B-SCM-70M-FF

216

2-15/16

126196

F4B-SCM-215

126538

F4B-SCM-215-NL

051599

F4B-SCM-215-FF

3

126197

F4B-SCM-300

126539

F4B-SCM-300-NL

126781

F4B-SCM-300-FF

75mm

125974

F4B-SCM-75M

@

F4B-SCM-75M-NL

@

F4B-SCM-75M-FF

218

3-7/16

126198

F4B-SCM-307

126540

F4B-SCM-307-NL

126271

F4B-SCM-307-FF

3-1/2

126199

F4B-SCM-308

126541

F4B-SCM-308-NL

056713

F4B-SCM-308-FF

85mm

125975

F4B-SCM-85M

@

F4B-SCM-85M-NL

@

F4B-SCM-85M-FF

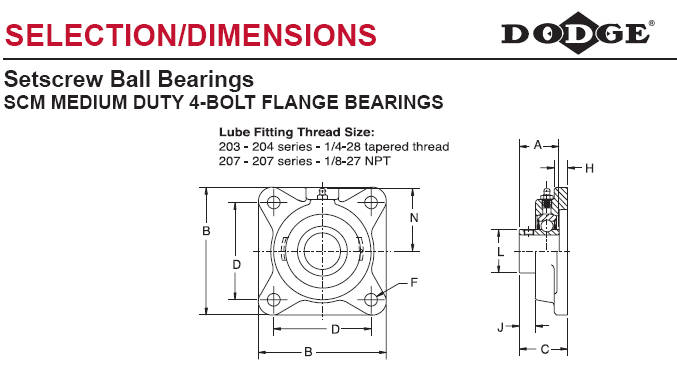

Series

Shaft Size

Weight

lbs.kgs.

A

B

C

D

F

Bolt Dia.

H

J

L

N

206

1

25mm

3.0

1.3

1-25/64

35.3

4-1/4

108.0

1-17/32

38.9

3-1/4

82.6

7/16

M10

1/2

12.7

15/32

11.9

1-37/64

40.1

2-3/16

55.6

207

1-3/16

4.1

1-17/32

4-3/4

1-3/4

3-5/8

1/2

9/16

17/32

1-27/32

2-7/16

1-1/4

4.0

30mm

1.4

38.9

120.7

44.5

92.1

M12

14.3

13.5

46.8

61.9

208

1-7/16

35mm

5.0

2.1

1-11/16

42.9

5-1/8

130.2

1-7/8

47.6

4

101.6

1/2

M12

9/16

14.3

17/32

13.5

2-3/64

52.0

2-3/8

60.3

209

1-1/2

6.1

1-23/32

5-3/8

1-15/16

4-1/8

1/2

5/8

17/32

2-7/32

2-3/4

1-5/8

6.1

40mm

2.7

43.7

136.5

49.2

104.8

M14

15.9

13.5

56.4

69.9

210

1-11/16

7.1

1-3/4

5-5/8

2

4-3/8

1/2

5/8

17/32

2-7/16

2-7/8

1-3/4

6.9

45mm

3.0

44.5

142.9

50.8

111.1

M16

15.9

13.5

61.9

73.0

211

1-15/16

9.5

1-27/32

6-1/2

2-5/32

5-1/8

5/8

11/16

9/16

2-23/32

3-1/4

2

9.3

50mm

4.1

46.8

165.1

54.8

130.2

M16

17.5

14.3

69.1

82.6

212

2-3/16

11.3

1-63/64

6-7/8

2-9/32

5-5/8

5/8

11/16

9/16

2-31/32

3-1/2

2-1/4

11.1

55mm

6.0

50.4

174.6

57.9

142.9

M16

17.5

14.3

75.4

88.9

214

2-7/16

16.2

2-15/64

7-3/8

2-3/4

5-7/8

5/8

11/16

9/16

3-5/16

3-11/16

2-1/2

16.0

65mm

7.3

56.8

187.3

69.9

149.2

M16

17.5

14.3

84.1

93.7

215

2-11/16

70mm

18.3

8.0

2-9/32

57.9

7-3/4

196.9

2-57/64

73.4

6.0

152.4

3/4

M18

1

25.4

41/64

16.3

3-5/8

92.1

3-7/8

98.4

216

2-15/16

21.5

2-11/32

7-3/4

3-3/32

6

3/4

7/8

19/32

3-53/64

4-3/32

3

21.2

75mm

9.4

59.5

196.9

78.6

152.4

M18

22.2

15.1

97.2

104.0

218

3-7/16

28.0

2-31/64

8-7/16

3-11/32

6-3/4

3/4

1

9/16

4-23/64

4-5/8

3-1/2

27.4

85mm

12.2

63.1

214.3

84.9

171.5

M18

25.4

14.3

110.7

117.5
