| LF-SC-17M、LF-SC-20M |
|
上海川代轴承机械有限公司 新闻动态 2025-10-29
|
 |
|
Series |
Shaft
Size |
Standard |
Sealed for Life (No Lube) |
|
Part No. |
Description |
Part No. |
Description |
|
203 |
1/2 |
124600 |
LF-SC-008 |
124620 |
LF-SC-008-NL |
|
5/8 |
124601 |
LF-SC-010 |
124621 |
LF-SC-010-NL |
|
17 mm |
050895 |
LF-SC-17M |
@ |
LF-SC-17M-NL |
|
204 |
3/4
20 mm |
124602
124934 |
LF-SC-012
LF-SC-20M |
124622
125384 |
LF-SC-012-NL
LF-SC-20M-NL |
|
205 |
7/8 |
124603 |
LF-SC-014 |
124623 |
LF-SC-014-NL |
|
15/16
1 |
124604
124605 |
LF-SC-015
LF-SC-100 |
124624
124625 |
LF-SC-015-NL
LF-SC-100-NL |
|
25 mm |
@ |
LF-SC-25M |
@ |
LF-SC-25M-NL |
|
206 |
1-1/16 |
124606 |
LF-SC-101 |
124626 |
LF-SC-101-NL |
|
1-1/8 |
124607 |
LF-SC-102 |
124627 |
LF-SC-102-NL |
|
1-3/16 |
124608 |
LF-SC-103 |
124628 |
LF-SC-103-NL |
|
1-1/4 |
124609 |
LF-SC-104S |
124629 |
LF-SC-104S-NL |
|
30 mm |
067892 |
LF-SC-30M |
@ |
LF-SC-30M-NL |
|
207 |
1-1/4 |
124610 |
LF-SC-104 |
124630 |
LF-SC-104-NL |
|
1-5/16 |
124611 |
LF-SC-105 |
124631 |
LF-SC-105-NL |
|
1-3/8 |
124612 |
LF-SC-106 |
124632 |
LF-SC-106-NL |
|
1-7/16 |
124613 |
LF-SC-107 |
124633 |
LF-SC-107-NL |
|
35 mm |
065699 |
LF-SC-35M |
@ |
LF-SC-35M-NL |
|

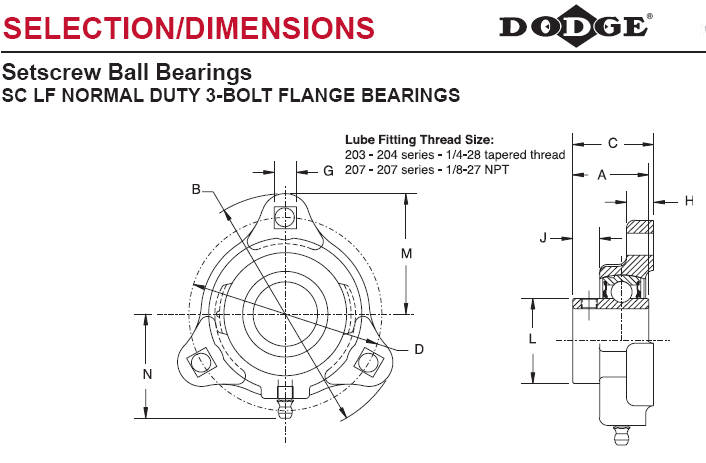

Series |
Shaft Size |
Weight
lbs kg |
A |
B |
C |
D |
G |
H |
J |
L |
M |
N |
|
203 |
1/2 |
0.65 |
1 |
3-3/16 |
1-3/64 |
2-1/2 |
9/32 |
3/8 |
21/64 |
31/32 |
1-19/32 |
1-27/32 |
|
5/8 |
0.60 |
|
|
|
|
|
|
|
|
|
|
|
17 mm |
0.29 |
25.4 |
81.0 |
27.0 |
63.5 |
7.5 |
9.5 |
8.7 |
24.6 |
40.5 |
46.8 |
|
204 |
3/4
20 mm |
0.85
0.38 |
1-5/32
29.4 |
3-9/16
90.5 |
1-7/32
31.0 |
2-13/16
71.4 |
23/64
9.1 |
27/64
10.7 |
3/8
9.5 |
1-1/8
28.6 |
1-25/32
45.2 |
1-37/64
40.1 |
|
205 |
7/8 |
1.10 |
1-3/16 |
3-3/4 |
1-1/4 |
3 |
11/32 |
27/64 |
3/8 |
1-21/64 |
1-7/8 |
1-45/64 |
|
15/16
1 |
1.05
1.00 |
|
|
|
|
|
|
|
|
|
|
|
25 mm |
0.47 |
30.2 |
95.3 |
31.8 |
76.2 |
8.7 |
10.7 |
10.3 |
33.7 |
47.6 |
43.3 |
|
206 |
1-1/16 |
1.65 |
1-25/64 |
4-7/16 |
1-15/32 |
3-9/16 |
13/32 |
15/32 |
15/32 |
1-37/64 |
2-7/32 |
2-1/64 |
|
1-1/8 |
1.60 |
|
|
|
|
|
|
|
|
|
|
|
1-3/16 |
1.55 |
|
|
|
|
|
|
|
|
|
|
|
1 -/4 |
1.50 |
|
|
|
|
|
|
|
|
|
|
|
30 mm |
0.70 |
35.3 |
112.7 |
37.3 |
90.5 |
10.3 |
11.9 |
13.5 |
40.1 |
56.4 |
51.2 |
|
207 |
1-1/4 |
2.10 |
1-17/32 |
4-13/16 |
1-19/32 |
3-15/16 |
13/32 |
1/2 |
17/32 |
1-27/32 |
2-13/32 |
2-9/64 |
|
1-5/16 |
2.05 |
|
|
|
|
|
|
|
|
|
|
|
1-3/8 |
2.00 |
|
|
|
|
|
|
|
|
|
|
|
1-7/16 |
1.95 |
|
|
|
|
|
|
|
|
|
|
|
35 mm |
0.90 |
38.9 |
122.2 |
40.5 |
100.0 |
10.3 |
12.7 |
13.5 |
46.8 |
61.1 |
54.4 |
|
