| P2B-VSC-107-NL、P2B-VSC-108-NL |
|
上海川代轴承机械有限公司 新闻动态 2025-12-11
|
 |
|
Series |
Shaft Size |
Standard |
No-Lube/Sealed for Life (-NL) Part |
|
Part No. |
Description |
Part No. |
Description |
|
207 |
1-1/4 |
123583 |
P2B-VSC-104 |
051889 |
P2B-VSC-104-NL |
|
1-3/8
1-7/16 |
125505
123584 |
P2B-VSC-106
P2B-VSC-107 |
@
050838 |
P2B-VSC-106-NL
P2B-VSC-107-NL |
|
35mm |
125689 |
P2B-VSC-35M |
067664 |
P2B-VSC-35M-NL |
|
208 |
1-1/2
40mm |
123585
@ |
P2B-VSC-108
P2B-VSC-40M |
051890
@ |
P2B-VSC-108-NL
P2B-VSC-40M-NL |
|
209 |
1-11/16 |
125506 |
P2B-VSC-111 |
@ |
P2B-VSC-111-NL |
|
1-3/4 |
124933 |
P2B-VSC-112 |
@ |
P2B-VSC-112-NL |
|
45mm |
125691 |
P2B-VSC-45M |
@ |
P2B-VSC-45M-NL |
|
210 |
1-15/16 |
123586 |
P2B-VSC-115 |
053662 |
P2B-VSC-115-NL |
|
2 |
123587 |
P2B-VSC-200 |
@ |
P2B-VSC-200-NL |
|
50mm |
125692 |
P2B-VSC-50M |
@ |
P2B-VSC-50M-NL |
|
211 |
2 |
123593 |
P2B-VSC-200L |
049784 |
P2B-VSC-200L-NL |
|
2-3/16 |
123588 |
P2B-VSC-203 |
@ |
P2B-VSC-203-NL |
|
55mm |
125693 |
P2B-VSC-55M |
@ |
P2B-VSC-55M-NL |
|

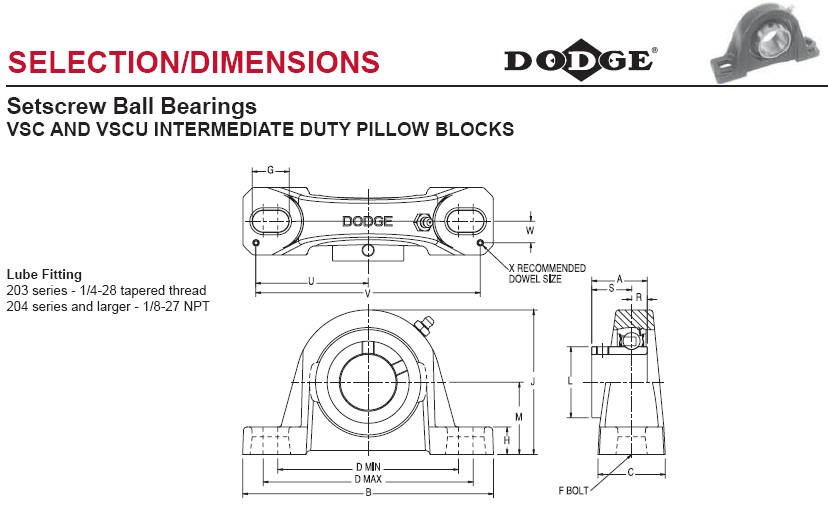

Series |
Shaft Size |
Weight
Lbs .kg. |
A |
B |
C |
D |
F
Bolt Dia. |
G |
H |
J |
L |
M |
R |
S |
U |
V |
W |
X |
|
Min. . |
Max |
|
207 |
1-1/4 |
4.5 |
1-7/16 |
6-1/2 |
1-47/64 |
4-11/16 |
5-7/16 |
1/2 |
15/16 |
45/64 |
3-3/4 |
1-27/32 |
1-7/8 |
13/32 |
1-1/32 |
2-29/32 |
5-13/16 |
9/16 |
3/16 |
|
1-3/8
1-7/16 |
4.3
4.2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
35mm |
2.0 |
36.5 |
165.1 |
44.1 |
119.1 |
138.1 |
M12 |
23.8 |
17.9 |
95.3 |
46.8 |
47.6 |
10.3 |
26.2 |
73.8 |
147.6 |
14.3 |
4.8 |
|
208 |
1-1/2
40mm |
5.4
2.5 |
1-9/16
39.7 |
7-1/4
184.2 |
1-15/16
49.2 |
5-3/16
131.8 |
5-7/8
149.2 |
1/2
M12 |
29/32
23.0 |
15/16
23.8 |
4-3/16
106.4 |
2-3/64
52.0 |
2-1/8
54.0 |
15/32
11.9 |
1-3/32
27.8 |
3-17/64
82.9 |
6-17/32
165.9 |
11/16
17.5 |
3/16
4.8 |
|
209 |
1-11/16 |
6.4 |
1-19/32 |
7-7/16 |
2 |
5-1/2 |
6-3/16 |
1/2 |
29/32 |
3/4 |
4-9/32 |
2-7/32 |
2-1/8 |
15/32 |
1-1/8 |
3-3/8 |
6-3/4 |
11/16 |
3/16 |
|
1-3/4 |
6.2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
45mm |
3.0 |
40.5 |
188.9 |
50.8 |
139.7 |
161.9 |
M12 |
23.0 |
19.1 |
108.7 |
56.4 |
54.0 |
11.9 |
28.6 |
85.7 |
171.5 |
17.5 |
4.8 |
|
210 |
1-15/16 |
7.2 |
1-5/8 |
8-1/8 |
2-1/4 |
6 |
6-11/16 |
5/8 |
1-1/16 |
3/4 |
4-17/32 |
2-7/16 |
2-1/4 |
15/32 |
1-5/32 |
3-11/16 |
7-3/8 |
13/16 |
3/16 |
|
2 |
7.0 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
50mm |
3.3 |
41.3 |
206.4 |
57.2 |
152.4 |
169.9 |
M16 |
27.0 |
19.1 |
115.1 |
61.9 |
57.2 |
11.9 |
29.4 |
93.7 |
187.3 |
20.6 |
4.8 |
|
211 |
2 |
9.0 |
1-23/32 |
8-7/8 |
2-5/16 |
6-3/8 |
7-7/16 |
5/8 |
1-7/32 |
7/8 |
4-31/32 |
2-23/32 |
2-1/2 |
1/2 |
1-7/32 |
3-15/16 |
7-7/8 |
13/16 |
3/16 |
|
2-3/16 |
8.9 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
55mm |
4.2 |
43.7 |
225.4 |
58.7 |
161.9 |
188.9 |
M16 |
31.0 |
22.2 |
126.2 |
69.1 |
63.5 |
12.7 |
31.0 |
100.0 |
200.0 |
20.6 |
4.8 | |
P2B-VSC-107-NL、P2B-VSC-108-NL现货供应，如有需要请及时联系我们。上海川代轴承机械有限公司同时销售
