Series	Shaft Size	Complete Unit			Unit without Adapter Sleeve & Lock Nut							Adapter Sleeve & Lock Nut Assembly
		Part No.	Description		Part No.				Description			Part No.	Description
203	1/2	129774	INS-GT-008		129516				INS-GT-03			129902	AN-GT-03-008
	5/8	129775	INS-GT-010									129903	AN-GT-03-010
	17mm	129796	INS-GT-17M									129942	AN-GT-03-17M
204	3/4 20mm	129776 129797	INS-GT-012 INS-GT-20M		129517				INS-GT-04			129904 129943	AN-GT-04-012 AN-GT-04-20M
205	7/8	129777	INS-GT-014		129518				INS-GT-05			129905	AN-GT-05-014
	15/16	129778	INS-GT-015									129906	AN-GT-05-015
	1	129779	INS-GT-100									129907	AN-GT-05-100
	25mm	129798	INS-GT-25M									129944	AN-GT-05-25M
206	1-1/8	129780	INS-GT-102		129519				INS-GT-06			129908	AN-GT-06-102
	1-3/16	129781	INS-GT-103									129909	AN-GT-06-103
	1-1/4	129782	INS-GT-104S									129910	AN-GT-06-104S
	30mm	129799	INS-GT-30M									129945	AN-GT-06-30M
207	1-1/4	129783	INS-GT-104		129520				INS-GT-07			129911	AN-GT-07-104
	1-3/8	129784	INS-GT-106									129912	AN-GT-07-106
	1-7/16	129785	INS-GT-107									129913	AN-GT-07-107
	35mm	129800	INS-GT-35M									129946	AN-GT-07-35M

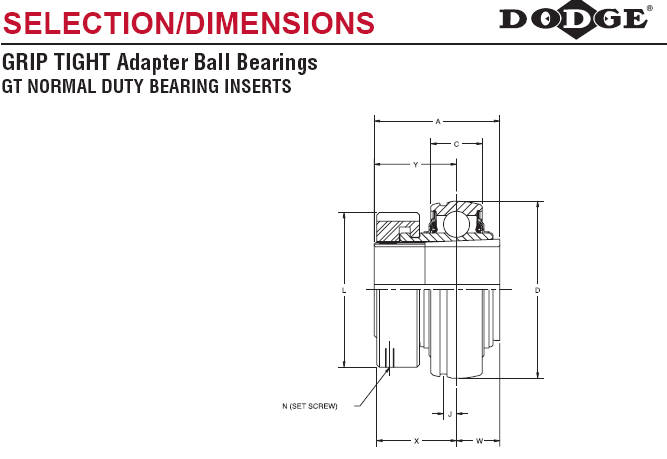

Series	Shaft Size	Weight  Lbs kg	A	C		D	J	L		N SetScrew (UNF)	W#	X	Y#
203	1/2	0.3	1-11/32	0.5110		1.5748	0.150	1-13/32		#10-32 x 1/4	13/32	59/64	15/16
	5/8	0.3
	17mm	0.1	34.1	13.0		40.0	3.8	35.7			10.3	23.4	23.8
204	3/4 20mm	0.6 0.3	1-15/32 37.3	0.5906 15.0		1.8504 47.0	0.152 3.9	1-1/2 38.1		#10-32 x 1/4	31/64 12.3	63/64 25.0	63/64 25.0
205	7/8	0.8	1-29/64	0.5906		2.0472	0.152	1-51/64		#10-32 x 1/4	1/2	61/64	61/64
	15/16	0.8
	1	0.8
	25mm	0.4	36.9	15.0		52.0	3.9	45.6			12.8	24.2	24.2
206	1-1/8	1.2	1-39/64	0.7087		2.4409	0.190	2		#10-32 x 1/4	17/32	1-1/32	1-5/64
	1-3/16	1.2
	1-1/4	1.1
	30mm	0.6	40.9	18.0		62.0	4.8	51.0			13.5	26.2	27.4
207	1-1/4	1.8	1-5/8	0.7480		2.8346	0.202	2-19/64		#10-32 x 1/4	9/16	1-3/64	1-1/16
	1-3/8	1.8
	1-7/16	1.7
	35mm	0.8	41.3	19.0		72.0	5.1	58.3			14.3	26.6	27.0
