| WSTU-GTM-203、WSTU-GTM-55M |
|
上海川代轴承机械有限公司 新闻动态 2025-4-26
|
 |
|
Series |
Shaft Size |
Complete Unit |
Unit without Adapter Sleeve & Lock Nut |
Adapter Sleeve & Lock Nut Assembly |
|
Part No. |
Description |
Part No. |
Description |
Part No. |
Description |
|
211 |
1-15/16 |
136177 |
WSTU-GTM-115 |
136226 |
WSTU-GT-11 |
129931 |
AN-GTM-11-115 |
|
2 |
136178 |
WSTU-GTM-200 |
129932 |
AN-GTM-11-200 |
|
50mm |
136308 |
WSTU-GTM-50M |
129961 |
AN-GTM-11-50M |
|
212 |
2-3/16 |
136179 |
WSTU-GTM-203 |
136227 |
WSTU-GT-12 |
129933 |
AN-GTM-12-203 |
|
2-1/4
55mm |
136180
136309 |
WSTU-GTM-204
WSTU-GTM-55M |
129934
129962 |
AN-GTM-12-204
AN-GTM-12-55M |
|
214 |
2-7/16 |
136181 |
WSTU-GTM-207 |
136228 |
WSTU-GT-14 |
129935 |
AN-GTM-14-207 |
|
2-1/2 |
136182 |
WSTU-GTM-208 |
129936 |
AN-GTM-14-208 |
|
65mm |
136310 |
WSTU-GTM-65M |
129963 |
AN-GTM-14-65M |
|
215 |
2-11/16
70mm |
136183
136311 |
WSTU-GTM-211
WSTU-GTM-70M |
136229 |
WSTU-GT-15 |
129937
129964 |
AN-GTM-15-211
AN-GTM-15-70M |
|
216 |
2-15/16 |
136184 |
WSTU-GTM-215 |
136230 |
WSTU-GT-16 |
129938 |
AN-GTM-16-215 |
|
3 |
136185 |
WSTU-GTM-300 |
129939 |
AN-GTM-16-300 |
|
75mm |
136312 |
WSTU-GTM-75M |
129965 |
AN-GTM-16-75M |
|

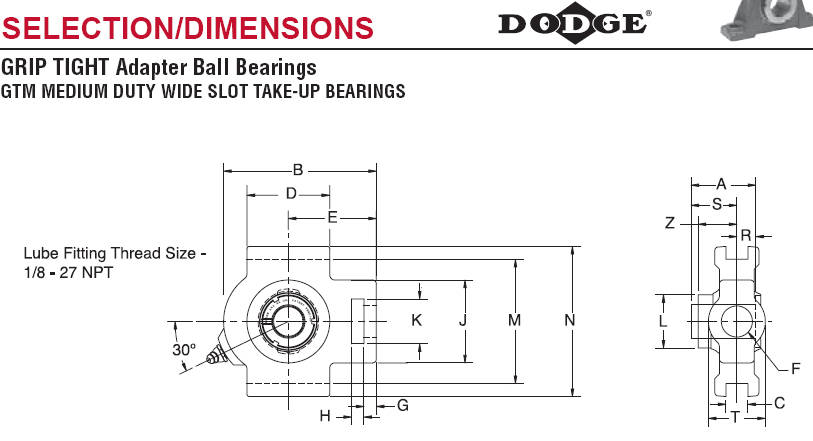

Take-
Weight Up F
Series Shaft lbs
Size kg Frame A B C* D E Screw G H |
J K L M* N R# S# T Z |
|
211 |
1-15/16
2
50mm |
11.2
11.3 |
WS502 |
1-59/64
48.8 |
6-11/16
169.9 |
1-1/16
27.0 |
3-3/4
95.3 |
4-3/16
106.4 |
1-1/4
31.8 |
3/4
19.1 |
1
25.4 |
4
101.6 |
2-1/2
63.5 |
3-27/64
86.9 |
5-1/8
130.2 |
5-7/8
149.2 |
45/64
17.9 |
1-7/32
31.0 |
2-1/2
63.5 |
1-11/32
34.0 |
|
212 |
2-3/16
2-1/4
55mm |
12.6
12.4 |
WS502 |
2-7/64
53.6 |
7-1/2
190.5 |
1-1/16
27.0 |
4
101.6 |
4-11/16
119.1 |
1-1/4
31.8 |
3/4
19.1 |
1-1/4
31.8 |
4
101.6 |
2-1/2
63.5 |
3-11/16
93.7 |
5-1/8
130.2 |
5-7/8
149.2 |
49/64
19.4 |
1-11/32
34.1 |
2-1/2
63.5 |
1-15/32
37.1 |
|
214 |
2-7/16
2-1/2
65mm |
19.4
19.2
9.3 |
WS515 |
2-25/64
60.7 |
8-9/16
217.5 |
1-1/16
27.0 |
4-3/4
120.7 |
5-3/8
136.5 |
1-1/2
38.1 |
13/16
20.6 |
1-1/4
31.8 |
4-3/8
111.1 |
2-3/4
69.9 |
4
101.6 |
5-15/16
150.8 |
6-9/16
166.7 |
7/8
22.2 |
1-33/64
38.5 |
2-3/4
69.9 |
1-19/32
40.5 |
|
215 |
2-11/16
70mm |
20.2
8.3 |
WS515 |
2-29/64
62.3 |
9-1/8
231.8 |
1-1/16
27.0 |
4-3/4
120.7 |
5-1/2
139.7 |
1-1/2
38.1 |
13/16
20.6 |
1-1/4
31.8 |
4-3/8
111.1 |
2-3/4
69.9 |
4-7/16
112.7 |
5-15/16
150.8 |
6-11/16
169.9 |
57/64
22.6 |
1-43/64
42.5 |
2-3/4
69.9 |
1-5/8
41.3 |
|
216 |
2-15/16
3
75mm |
22.9
9.1 |
WS608 |
2-11/16
68.3 |
9-1/8
231.8 |
1-1/16
27.0 |
4-3/4
120.7 |
5-1/2
139.7 |
1-1/2
38.1 |
13/16
20.6 |
1-1/4
31.8 |
4-3/8
111.1 |
2-3/4
69.9 |
4-11/16
119.1 |
6-1/2
165.1 |
7-1/4
184.2 |
29/32
23.0 |
1-55/64
47.2 |
2-3/4
69.9 |
1-5/8
41.3 |
|
WSTU-GTM-203、WSTU-GTM-55M现货供应，如有需要请及时联系我们。上海川代轴承机械有限公司同时销售
UCFL 207,
CFE20VBUUM,
RNA6901UU,
LR5305X2Z,
18790-90045,
DH20X24X2,5,
LL957010 Prec.3,
7309BDB,
1309J,
MST90,
N1010K.M1.SP,
3610PS-23W-B20-A00 ,
JM822049,
QJ220N2MPA.C3,
FR32-1AS,
136343 LF-GT-008,
004102 P4B-BAR-415,
128672 INS-DLM-111,
CR 40X80X8 CRW1 V,
CR OR 36.2X3.0-N90,
CR PW 56X64.6X5.3,
AS1128,
AE14018031,
AH315 G,
LP1234U,
E-207-19-60,
SC-211TMC,
TSN222G,
R2BX57C41 V-11 G-18 P2S 27928,
S8M1120,
以上为我司部分轴承型号，如需查找其他型号，可登陆我们的现货中心栏目或致电021-52797858转8008进行详细查询，谢谢！
，我们还提供其相关技术信息包括
高速精密机床轴承,
推力轴承F3-8G、F4-9G 、F4-10G 、F6-14G 、F8-16G、F10-18G,
IBC轴承BS25M62.P4A.UM、BS25M62/17.P4A.UM、BS30M62/16.P4A.UM、BS30M62P4A.UM、BS30M72.P4AUM、BS30M72/19P4A.UM,
BEF16-21-501、 BEF16-21-502、BEF18-20-501、BEF18-20-502,
单向离合FPD427M、FPD432M、FPD437Z、FPD453M、FPD473M、FND442Z、FND470Z、FP427Z,
1621-114-20、1621-713-20、1621-312-20,
R163271320、R163279320、R163271420、R163279420,
VPLS-210、VPLS-216标准型低底座立式座,
美国新产品B-45、B-59、B-65,
ZEP2203 孔径 2-3/16,
PLB6871FR、PLB6872FR、PLB6880FR、PLB6883FR,
EPEB22639FH、EPEB22643FH、EPEB22647FH,
E-206-18-60、B-207-19-70、E-208-16-60,
1666-193-10、1666-893-10、1666-293-10,
TRK10UU-E、TRK13UU-E、TRK8UU-E加长带方法兰,
我们能针对客户的需求提供各种技术服务，具体详细信息请联系川代轴承全国客服热线021-52797858转8008询价，我们将为您提供专业详细的服务。如需查找其他型号，可登陆我们的现货中心栏目或致电021-52797858转8008询价进行详细查询，谢谢！ |
