Series

Shaft Size

Complete Unit Part No.    Description

Unit without Adapter Sleeve & Lock Nut Part No.                 Description

Adapter Sleeve & Lock Nut Assembly Part No.                 Description

205

3/4

136170

WSTU-GTM-012

136220

WSTU-GT-05

129924

AN-GTM-05-012

206

1 25mm

136171 136303

WSTU-GTM-100 WSTU-GTM-25M

136221

WSTU-GTU-06

129925 129957

AN-GTM-06-100 AN-GTM-06-25M

207

1-3/16

136172

WSTU-GTM-103

136222

WSTU-GT-07

129926

AN-GTM-07-103

1-1/4

136137

WSTU-GT-104

129911

AN-GT-07-104

30mm

136304

WSTU-GTM-30M

129954

AN-GTM-07-30M

208

1-7/16 35mm

136173 136305

WSTU-GTM-107 WSTU-GTM-35M

136223

WSTU-GT-08

129927 129958

AN-GTM-08-107 AN-GTM-08-35M

209

1-1/2 40mm

136174 136306

WSTU-GTM-108 WSTU-GTM-40M

136224

WSTU-GT-09

129928 129959

AN-GTM-09-108 AN-GTM-09-40M

210

1-11/16

136175

WSTU-GTM-111

136225

WSTU-GT-10

129929

AN-GTM-10-111

1-3/4

136176

WSTU-GTM-112

129930

AN-GTM-10-112

45mm

136307

WSTU-GTM-45M

129960

AN-GTM-10-45M

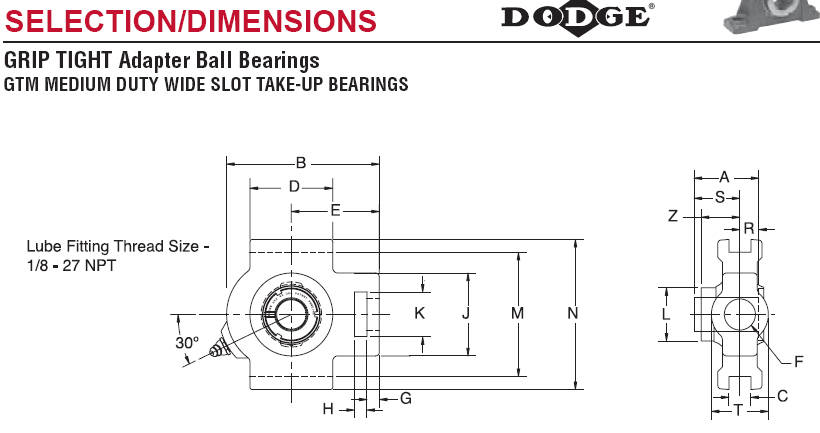

Series

Shaft Size

Weight Take-Up lbs    Frame kg      Size

A

B

C*

D

E

F Screw Dia.

G

H

J

K

L

M*

N

R#

S#

T

Z

205

3/4

2.7

WS300

1-29/64 36.9

3-13/16 96.8

17/32 13.5

2 50.8

2-7/16 61.9

5/8 15.9

3/8 9.5

5/8 15.9

2 50.8

1-5/16 33.3

1-51/64 45.6

3 76.2

3-5/8 92.1

1/2 12.8

61/64 24.2

1-3/8 34.9

61/64 24.2

206

1 25mm

4.1 1.3

WS308

1-39/64 40.9

4-3/8 111.1

17/32 13.5

2-1/4 57.2

2-3/4 69.9

3/4 19.1

3/8 9.5

5/8 15.9

2-3/16 55.6

1-7/16 36.5

2-5/64 52.8

3-1/2 88.9

4-1/8 104.8

17/32 13.5

1-5/64 27.4

1-5/8 41.3

1-1/8 28.7

207

1-3/16

5.1

WS308

1-5/8

4-7/8

17/32

2-1/2

3-1/16

3/4

1/2

5/8

2-1/2

1-7/16

2-3/8

3-1/2

4-1/8

9/16

1-1/16

1-5/8

1-9/64

1-1/4

30mm

3.7

41.3

123.8

13.5

63.5

77.8

19.1

12.7

15.9

63.5

36.5

60.3

88.9

104.8

14.3

27.0

41.3

29.1

208

1-7/16 35mm

7.3 3.5

WS400

1-27/32 46.8

5-11/16 144.5

11/16 17.5

3-1/4 82.6

3-1/2 88.9

1 25.4

5/8 15.9

3/4 19.1

3-1/4 82.6

1-15/16 49.2

2-5/8 66.7

4 101.6

4-1/2 114.3

21/32 16.7

1-3/16 30.2

1-15/16 49.2

1-15/64 31.5

209

1-1/2 40mm

7.2 6.1

WS400

1-55/64 47.2

5-5/8 142.9

11/16 17.5

3-1/4 82.6

3-7/16 87.3

1 25.4

5/8 15.9

3/4 19.1

3-1/4 82.6

1-15/16 49.2

2-55/64 72.6

4 101.6

4-3/4 120.7

21/32 16.7

1-3/16 30.2

1-15/16 49.2

1-9/32 32.6

210

1-11/16

7.7

WS400

1-55/64

5-13/16

11/16

3-3/8

3-9/16

1

5/8

3/4

3-1/4

1-15/16

3-1/8

4

4-3/4

21/32

1-13/64

1-15/16

1-9/32

1-3/4

45mm

7.6

47.2

147.6

17.5

85.7

90.5

25.4

15.9

19.1

82.6

49.2

79.4

101.6

120.7

16.7

30.6

49.2

32.6
