Series

Shaft Size

Complete Unit Part No.              Description

Unit without Adapter Sleeve & Lock Nut Part No.                 Description

Adapter Sleeve & Lock Nut Assembly Part No.                 Description

204

3/4 20mm

136130 136247

WSTU-GT-012 WSTU-GT-20M

136219

WSTU-GT-04

129904 129943

AN-GT-04-012 AN-GT-04-20M

205

7/8

136131

WSTU-GT-014

136220

WSTU-GT-05

129905

AN-GT-05-014

15/16

136132

WSTU-GT-015

129906

AN-GT-05-015

1

136133

WSTU-GT-100

129907

AN-GT-05-100

25mm

136248

WSTU-GT-25M

129944

AN-GT-05-25M

206

1-1/8

136134

WSTU-GT-102

136221

WSTU-GT-06

129908

AN-GT-06-102

1-3/16

136135

WSTU-GT-103

129909

AN-GT-06-103

1-1/4

136136

WSTU-GT-104S

129910

AN-GT-06-104S

30mm

136249

WSTU-GT-30M

129945

AN-GT-06-30M

207

1-1/4

136137

WSTU-GT-104

136222

WSTU-GT-07

129911

AN-GT-07-104

1-3/8

136138

WSTU-GT-106

129912

AN-GT-07-106

1-7/16

136139

WSTU-GT-107

129913

AN-GT-07-107

35mm

136250

WSTU-GT-35M

129946

AN-GT-07-35M

208

1-1/2

136140

WSTU-GT-108

136223

WSTU-GT-08

129914

AN-GT-08-108

1-5/8

136141

WSTU-GT-110

129955

AN-GT-08-110

40mm

136251

WSTU-GT-40M

129947

AN-GT-08-40M

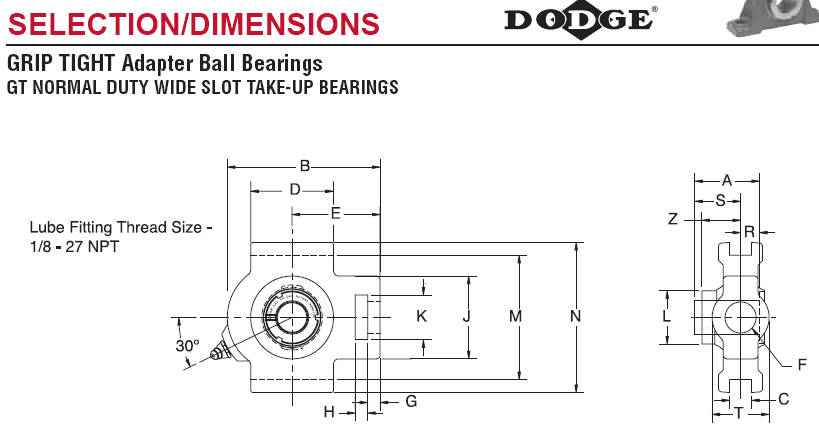

Weight  Take-                                                                         F Series  Shaft     lbs        Up         A           B         C*       D         E     Screw Size      kg     Frame                                                                      Dia. Size

G          H          J           K

L        M*       N       R#

S#         T          Z

204

3/4 20mm

1.9 0.9

1-15/32 37.3

3-11/16 93.7

17/32 13.5

2 50.8

2-3/8 60.3

5/8 15.9

3/8 9.5

5/8 15.9

2 50.8

1-1/4 31.8

1-1/2 38.1

3 76.2

3-5/8 92.1

31/64 12.3

63/64 25.0

1-3/8 34.9

1-3/64 26.7

205

7/8 15/16 1 25mm

2.2 2.1 2.0 1.0

WS300

1-29/64 36.9

3-13/16 96.8

17/32 13.5

2 50.8

2-7/16 61.9

5/8 15.9

3/8 9.5

5/8 15.9

2 50.8

1-5/16 33.3

1-51/64 45.6

3 76.2

3-5/8 92.1

1/2 12.8

61/64 24.2

1-3/8 34.9

1-1/64 25.9

206

1-1/8 1-3/16 1-1/4 30mm

2.7 2.6 2.5 1.3

WS308

1-39/64 40.9

4-3/8 111.1

17/32 13.5

2-1/4 57.2

2-3/4 69.9

3/4 19.1

3/8 9.5

5/8 15.9

2-3/16 55.6

1-7/16 36.5

2-5/64 52.8

3-1/2 88.9

4-1/8 104.8

17/32 13.5

1-5/64 27.4

1-5/8 41.3

1-1/8 28.7

207

1-1/4 1-3/8 1-7/16 35mm

3.7 3.6 3.5 1.6

WS308

1-5/8 41.3

4-7/8 123.8

17/32 13.5

2-1/2 63.5

3-1/16 77.8

3/4 19.1

1/2 12.7

5/8 15.9

2-1/2 63.5

1-7/16 36.5

2-3/8 60.3

3-1/2 88.9

4-1/8 104.8

9/16 14.3

1-1/16 27.0

1-5/8 41.3

1-9/64 29.1

208

1-1/2 1-5/8 40mm

6.1 5.9 2.8

WS400

1-27/32 46.8

5-11/16 144.5

11/16 17.5

3-1/4 82.6

3-1/2 88.9

1 25.4

5/8 15.9

3/4 19.1

3-1/4 82.6

1-15/16 49.2

2-5/8 66.7

4 101.6

4-1/2 114.3

21/32 16.7

1-3/16 30.2

1-15/16 49.2

1-15/64 31.5
