Series

Shaft Size

Complete Unit Part No.              Description

Unit without Adapter Sleeve & Lock Nut Part No.                 Description

Adapter Sleeve & Lock Nut Assembly Part No.                 Description

205

3/4

136159

NSTU-GTM-012

136211

NSTU-GT-05

129924

AN-GTM-05-012

206

1 25mm

136160 136296

NSTU-GTM-100 NSTU-GTM-25M

136212

NSTU-GTU-06

129925 129957

AN-GTM-06-100 AN-GTM-06-25M

207

1 -3/16

136161

NSTU-GTM-103

136213

NSTU-GT-07

129926

AN-GTM-07-103

1-1/4

136117

NSTU-GT-104

129911

AN-GT-07-104

30mm

136297

NSTU-GTM-30M

129954

AN-GTM-07-30M

208

1-7/16 35mm

136162 136298

NSTU-GTM-107 NSTU-GTM-35M

136214

NSTU-GT-08

129927 129958

AN-GTM-08-107 AN-GTM-08-35M

209

1-1/2 40mm

136163 136299

NSTU-GTM-108 NSTU-GTM-40M

136215

NSTU-GT-09

129928 129959

AN-GTM-09-108 AN-GTM-09-40M

210

1-11/16

136164

NSTU-GTM-111

136216

NSTU-GT-10

129929

AN-GTM-10-111

1-3/4

136165

NSTU-GTM-112

129930

AN-GTM-10-112

45mm

136300

NSTU-GTM-45M

129960

AN-GTM-10-45M

211

1-15/16

136166

NSTU-GTM-115

136217

NSTU-GT-11

129931

AN-GTM-11-115

2

136167

NSTU-GTM-200

129932

AN-GTM-11-200

50mm

136301

NSTU-GTM-50M

129961

AN-GTM-11-50M

212

2-3/16

136168

NSTU-GTM-203

136218

NSTU-GT-12

129933

AN-GTM-12-203

2-1/4

136169

NSTU-GTM-204

129934

AN-GTM-12-204

55mm

136302

NSTU-GTM-55M

129962

AN-GTM-12-55M

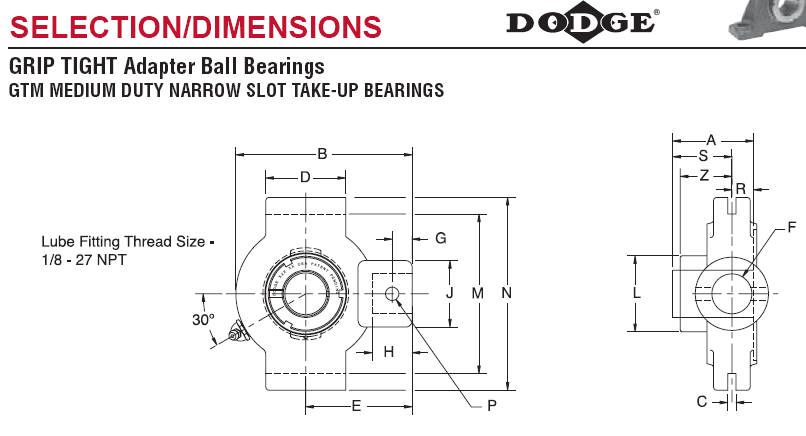

Series

Shaft Size

Weight  lbs kg

Take- Up  Frame Size

A

B

C*

D

E

F Screw

G

H

J

L

M@

N

P Pin Dia.

R#

S#

Z

205

3/4

1.7

NS210

1-15/32 37.3

3-1/2 88.9

1/4 6.4

1-1/2 38.1

2-3/16 55.6

3/4 19.1

7/16 11.1

7/8 22.2

1- 3/8 34.9

1-1/2 38.1

2- 5/8 66.7

3-1/8 79.4

5/16 7.9

31/64 12.3

63/64 25.0

63/64 25.0

206

1 25mm

2.8 1.2

NS308

1-39/64 40.9

4- 5/16 109.5

1/4 6.4

2-1/2 63.5

2-11/16 68.3

3/4 19.1

1/2 12.7

15/16 23.8

1- 3/8 34.9

2 50.8

3-1/2 88.9

4-1/8 104.8

5/16 7.9

17/32 13.5

1- 5/64 27.4

1-1/32 26.2

207

1 -3/16

2.8

NS308

1-5/8

4-1/2

1/4

2-1/2

2-11/16

3/4

1/2

15/16

1-3/8

2-19/64

3-1/2

4-1/8

5/16

9/16

1- 1/16

1- 3/64

1-1/4

30mm

1.2

41.3

114.3

6.4

63.5

68.3

19.1

12.7

23.8

34.9

58.3

88.9

104.8

7.9

14.3

27.0

26.6

208

1-7/16 35mm

4.7 2.1

NS400

1-27/32 46.8

5-3/8 136.5

5/16 7.9

3 76.2

3-1/4 82.6

7/8 22.2

21/32 16.7

1-5/32 29.4

1-5/8 41.3

2-1/2 63.5

4 101.6

4-3/4 120.7

3/8 9.5

21/32 16.7

1-3/16 30.2

1- 9/64 29.0

209

1-1/2 40mm

4.9 2.1

NS400

1-27/32 46.8

5-7/16 138.1

5/16 7.9

3 76.2

3-1/4 82.6

7/8 22.2

23/32 18.3

1-7/32 31.0

1-5/8 41.3

2-43/64 67.9

4 101.6

4- 3/4 120.7

3/8 9.5

21/32 16.7

1- 3/16 30.2

1- 5/32 29.4

210

1-11/16

4.9

NS400

1-55/64

5-1/2

5/16

3

3-1/4

7/8

19/32

1-3/32

1- 5/8

2-15/16

4

4-3/4

3/8

21/32

1-13/64

1- 5/32

1-3/4

45mm

2.2

47.2

139.7

7.9

76.2

82.6

22.2

15.1

27.8

41.3

74.6

101.6

120.7

9.5

16.7

30.6

29.4

211

1-15/16

6.8

NS407

1-59/64

6-1/8

5/16

3-1/2

3- 5/8

1

11/16

1-9/32

1- 3/4

3-1/4

4-7/16

5-3/8

7/16

45/64

1- 7/32

1- 3/16

2

50mm

3.0

48.8

155.6

7.9

88.9

92.1

25.4

17.5

32.5

44.5

82.6

112.7

136.5

11.1

17.9

31.0

30.2

212

2-3/16

8.7

NS415

2-7/64

6-11/16

5/16

3-3/4

3-7/8

1

11/16

1- 9/32

1-5/8

3-1/2

4-15/16

5- 3/4

7/16

49/64

1-11/32

1- 5/16

2-1/4

55mm

4.9

53.6

169.9

7.9

95.3

98.4

25.4

17.5

32.5

41.3

88.9

125.4

146.1

11.1

19.4

34.1

33.3
