| NSTU-GT-112、NSTU-GT-50M |
|
上海川代轴承机械有限公司 新闻动态 2025-10-27
|
 |
|
Series |
Shaft Size |
Complete Unit
Part No. Description |
Unit without Adapter Sleeve & Lock Nut Part No. Description |
Adapter Sleeve & Lock Nut Assembly Part No. Description |
|
209 |
1-5/8 |
136122 |
NSTU-GT-110L |
136215 |
NSTU-GT-09 |
129915 |
AN-GT-09-110L |
|
1-11/16 |
136123 |
NSTU-GT-111 |
129916 |
AN-GT-09-111 |
|
1-3/4 |
136124 |
NSTU-GT-112 |
129917 |
AN-GT-09-112 |
|
45mm |
136243 |
NSTU-GT-45M |
129948 |
AN-GT-09-45M |
|
210 |
1-15/16 |
136125 |
NSTU-GT-115 |
136216 |
NSTU-GT-10 |
129918 |
AN-GT-10-115 |
|
2 |
136126 |
NSTU-GT-200 |
129919 |
AN-GT-10-200 |
|
50mm |
136244 |
NSTU-GT-50M |
129949 |
AN-GT-10-50M |
|
211 |
2 |
136167 |
NSTU-GTM-200 |
136217 |
NSTU-GT-11 |
129932 |
AN-GTM-11-200 |
|
2-3/16 |
136127 |
NSTU-GT-203 |
129920 |
AN-GT-11-203 |
|
2-1/4 |
136128 |
NSTU-GT-204 |
129956 |
AN-GT-11-204 |
|
55mm |
136245 |
NSTU-GT-55M |
129950 |
AN-GT-11-55M |
|
212 |
2-1/4 |
136169 |
NSTU-GTM-204 |
136218 |
NSTU-GT-12 |
129934 |
AN-GTM-12-204 |
|
2-7/16 |
136129 |
NSTU-GT-207 |
129921 |
AN-GT-12-207 |
|
60mm |
136246 |
NSTU-GT-60M |
129951 |
AN-GT-12-60M |
|

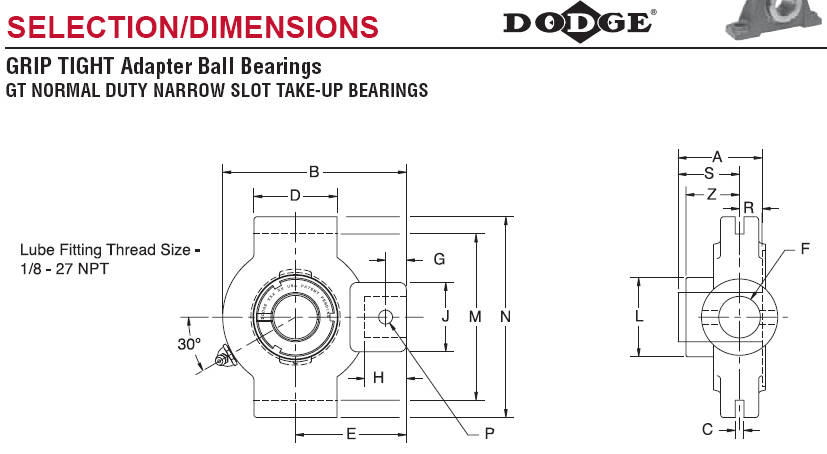

Series |
Shaft Size |
Weight Take-Up lbs Frame
kg Size |
A |
B |
C* |
D |
E |
F
Screw Dia. |
G |
H |
J |
L |
M@ |
N |
P
Pin Dia. |
R# |
S# |
Z |
|
209 |
1-5/8 |
4.9 |
NS400 |
1-55/64 |
5-7/16 |
5/16 |
3 |
3-1/4 |
7/8 |
23/32 |
1-7/32 |
1-5/8 |
2-55/64 |
4 |
4-3/4 |
3/8 |
21/32 |
1-3/16 |
1-9/32 |
|
1-11/16
1-3/4 |
4.8
4.7 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
45mm |
2.1 |
47.2 |
138.1 |
7.9 |
76.2 |
82.6 |
22.2 |
18.3 |
31.0 |
41.3 |
72.6 |
101.6 |
120.7 |
9.5 |
16.7 |
30.2 |
32.5 |
|
210 |
1-15/16 |
4.9 |
NS400 |
1-55/64 |
5-1/2 |
5/16 |
3 |
3-1/4 |
7/8 |
19/32 |
1-3/32 |
1-5/8 |
3-1/8 |
4 |
4-3/4 |
3/8 |
21/32 |
1-13/64 |
1-9/32 |
|
2 |
4.8 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
50mm |
2.2 |
47.2 |
139.7 |
7.9 |
76.2 |
82.6 |
22.2 |
15.1 |
27.8 |
41.3 |
79.4 |
101.6 |
120.7 |
9.5 |
16.7 |
30.6 |
32.5 |
|
211 |
2 |
6.8 |
NS407 |
1-59/64 |
6-1/8 |
5/16 |
3-1/2 |
3-5/8 |
1 |
11/16 |
1-9/32 |
1-3/4 |
3-27/64 |
4-7/16 |
5-3/8 |
7/16 |
45/64 |
1-7/32 |
1-11/32 |
|
2-3/16
2-1/4 |
6.6
6.5 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
55mm |
3.0 |
48.8 |
155.6 |
7.9 |
88.9 |
92.1 |
25.4 |
17.5 |
32.5 |
44.5 |
86.9 |
112.7 |
136.5 |
11.1 |
17.9 |
31.0 |
34.1 |
|
212 |
2-1/4 |
8.7 |
NS415 |
2-7/64 |
6-11/16 |
5/16 |
3-3/4 |
3-7/8 |
1 |
11/16 |
1-9/32 |
1-5/8 |
3-11/16 |
4-15/16 |
5-3/4 |
7/16 |
49/64 |
1-11/32 |
1-15/32 |
|
2-7/16 |
8.4 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
60mm |
4.9 |
53.6 |
169.9 |
7.9 |
95.3 |
98.4 |
25.4 |
17.5 |
32.5 |
41.3 |
93.7 |
125.4 |
146.1 |
11.1 |
19.4 |
34.1 |
37.3 | |
NSTU-GT-112、NSTU-GT-50M现货供应，如有需要请及时联系我们。上海川代轴承机械有限公司同时销售
