| FC-GTM-103、FC-GTM-35M |
|
上海川代轴承机械有限公司 新闻动态 2025-4-24
|
 |
|
Series |
Shaft Size |
Complete Unit
Part No. Description |
Unit without Adapter
Sleeve & Lock Nut
Part
No. Description |
Adapter Sleeve & Lock
Nut Assembly Part
No. Description |
|
206 |
1
25mm |
129758
136286 |
FC-GTM-100
FC-GTM-25M |
129501 |
FC-GT-06 |
129925
129957 |
AN-GTM-06-100
AN-GTM-06-25M |
|
207 |
1-3/16 |
129759 |
FC-GTM-103 |
129502 |
FC-GT-07 |
129926 |
AN-GTM-07-103 |
|
1-1/4 |
129738 |
FC-GT-104 |
129911 |
AN-GT-07-104 |
|
30mm |
136287 |
FC-GTM-30M |
129954 |
AN-GTM-07-30M |
|
208 |
1-7/16 |
129760 |
FC-GTM-107 |
129503 |
FC-GT-08 |
129927 |
AN-GTM-08-107 |
|
1-1/2 |
129741 |
FC-GT-108 |
129914 |
AN-GT-08-108 |
|
35mm |
136288 |
FC-GTM-35M |
129958 |
AN-GTM-08-35M |
|
209 |
1-1/2 |
129761 |
FC-GTM-108L |
129504 |
FC-GT-09 |
129928 |
AN-GTM-09-108 |
|
1-5/8 |
129742 |
FC-GT-110L |
129118 |
AN-GT-09-110 |
|
40mm |
136289 |
FC-GTM-40M |
129959 |
AN-GTM-09-40M |
|
210 |
1-11/16 |
129762 |
FC-GTM-111 |
129505 |
FC-GT-10 |
129929 |
AN-GTM-10-111 |
|
1-3/4 |
129763 |
FC-GTM-112 |
129930 |
AN-GTM-10-112 |
|
45mm |
136290 |
FC-GTM-45M |
129960 |
AN-GTM-10-45M |
|
211 |
1-15/16 |
129764 |
FC-GTM-115 |
129506 |
FC-GT-11 |
129931 |
AN-GTM-11-115 |
|
2 |
129765 |
FC-GTM-200 |
129932 |
AN-GTM-11-200 |
|
50mm |
136291 |
FC-GTM-50M |
129961 |
AN-GTM-11-50M |
|
212 |
2-3/16 |
129766 |
FC-GTM-203 |
129507 |
FC-GT-12 |
129933 |
AN-GTM-12-203 |
|
2-1/4 |
129767 |
FC-GTM-204 |
129934 |
AN-GTM-12-204 |
|
55mm |
139292 |
FC-GTM-55M |
129962 |
AN-GTM-12-55M |
|
214 |
2-7/16 |
129768 |
FC-GTM-207 |
129508 |
FC-GT-14 |
129935 |
AN-GTM-14-207 |
|
2-1/2 |
129769 |
FC-GTM-208 |
129936 |
AN-GTM-14-208 |
|
65mm |
136293 |
FC-GTM-65M |
129963 |
AN-GTM-14-65M |
|
216 |
2-15/16 |
129770 |
FC-GTM-215 |
129509 |
FC-GT-16 |
129938 |
AN-GTM-16-215 |
|
3 |
129771 |
FC-GTM-300 |
129939 |
AN-GTM-16-300 |
|
75mm |
136294 |
FC-GTM-75M |
129965 |
AN-GTM-16-75M |
|
218 |
3-7/16 |
129772 |
FC-GTM-307 |
129510 |
FC-GT-18 |
129940 |
AN-GTM-18-307 |
|
3-1/2 |
129773 |
FC-GTM-308 |
129941 |
AN-GTM-18-308 |
|
85mm |
136295 |
FC-GTM-85M |
129966 |
AN-GTM-18-85M |
|

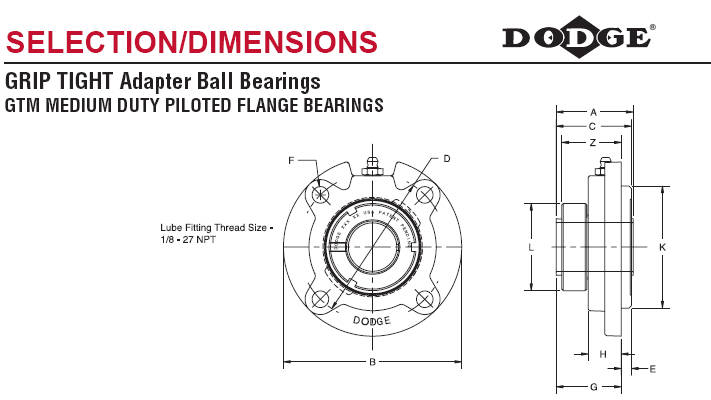

Series |
Shaft Size |
Weight
Lbs kg |
A |
B |
C# |
D |
E |
F
Bolt Dia. |
G# |
H |
K* |
L |
Z |
|
206 |
1
25mm |
3.1
1.5 |
1-39/64
40.9 |
4-3/8
111.1 |
1-43/64
42.5 |
3-5/8
92.1 |
1/4
6.4 |
3/8
M10 |
1-27/64
36.1 |
13/16
20.6 |
3
76.2 |
2 -5/64
52.8 |
1-15/32
37.3 |
|
207 |
1-3/16 |
4.1 |
1-5/8 |
5 |
1-51/64 |
4-1/8 |
3/8 |
3/8 |
1-27/64 |
27/32 |
3-3/8 |
2-3/8 |
1-1/2 |
|
1-1/4 |
4.1 |
|
|
|
|
|
|
|
|
|
|
|
|
30mm |
2.0 |
41.3 |
127.0 |
45.6 |
104.8 |
9.5 |
M10 |
36.1 |
21.4 |
85.7 |
60.3 |
38.1 |
|
208 |
1-7/16 |
5.1 |
1-27/32 |
5-1/4 |
1-31/32 |
4-3/8 |
7/16 |
7/16 |
1-17/32 |
57/64 |
3-5/8 |
2-5/8 |
1-37/64 |
|
1-1/2 |
4.9 |
|
|
|
|
|
|
|
|
|
|
|
|
35mm |
2.5 |
46.8 |
133.4 |
50.0 |
111.1 |
11.1 |
M12 |
38.9 |
22.6 |
92.1 |
66.7 |
40.1 |
|
209 |
1-1/2 |
6.1 |
1-55/64 |
5-3/4 |
1-61/64 |
4-3/4 |
7/16 |
1/2 |
1-33/64 |
29/32 |
4 |
2-55/64 |
1-39/64 |
|
1-5/8 |
6.1 |
|
|
|
|
|
|
|
|
|
|
|
|
40mm |
3.0 |
47.2 |
146.1 |
49.6 |
120.7 |
11.1 |
M12 |
38.5 |
23.0 |
101.6 |
72.6 |
40.9 |
|
210 |
1-11/16 |
6.2 |
1-55/64 |
6-1/8 |
2 |
5-1/8 |
15/32 |
1/2 |
1-17/32 |
59/64 |
4-1/4 |
3-1/8 |
1-19/32 |
|
1-3/4 |
6.2 |
|
|
|
|
|
|
|
|
|
|
|
|
45mm |
3.0 |
47.2 |
155.6 |
50.8 |
130.2 |
11.9 |
M12 |
38.9 |
23.4 |
108.0 |
79.4 |
40.5 |
|
211 |
1-15/16 |
8.0 |
1-59/64 |
6-3/8 |
2-7/32 |
5-3/8 |
5/8 |
1/2 |
1-19/32 |
1 |
4-1/2 |
3-27/64 |
1-23/32 |
|
2 |
8.0 |
|
|
|
|
|
|
|
|
|
|
|
|
50mm |
3.9 |
48.8 |
161.9 |
56.4 |
136.5 |
15.9 |
M12 |
40.5 |
25.4 |
114.3 |
86.9 |
43.7 |
|
212 |
2-3/16 |
11.6 |
2-7/64 |
7-1/8 |
2-15/32 |
6 |
7/8 |
1/2 |
1-19/32 |
1 |
5 |
3-11/16 |
1-23/32 |
|
2-1/4 |
11.6 |
|
|
|
|
|
|
|
|
|
|
|
|
55mm |
5.6 |
53.6 |
181.0 |
62.7 |
152.4 |
22.2 |
M12 |
40.5 |
25.4 |
127.0 |
93.7 |
43.7 |
|
214 |
2-7/16 |
13.9 |
2-25/64 |
7-5/8 |
2-53/64 |
6-1/2 |
1-1/8 |
1/2 |
1-45/64 |
1-1/16 |
5-1/2 |
4 |
1-25/32 |
|
2-1/2 |
13.8 |
|
|
|
|
|
|
|
|
|
|
|
|
65mm |
6.7 |
60.7 |
193.7 |
71.8 |
165.1 |
28.6 |
M12 |
43.3 |
27.0 |
139.7 |
101.6 |
45.2 |
|
216 |
2-15/16 |
15.9 |
2-11/16 |
8-3/4 |
3-5/16 |
7-1/2 |
1-1/4 |
5/8 |
2-9/64 |
1-3/16 |
6-3/8 |
4-11/16 |
2-1/16 |
|
3 |
15.8 |
|
|
|
|
|
|
|
|
|
|
|
|
75mm |
12.9 |
68.3 |
222.3 |
84.1 |
190.5 |
31.8 |
M16 |
54.4 |
30.2 |
161.9 |
119.1 |
52.4 |
|
218 |
3-7/16 |
36.8 |
2-51/64 |
10-1/4 |
3-17/32 |
8-5/8 |
1-1/8 |
3/4 |
2-13/32 |
1-5/8 |
7-3/8 |
5 -3/16 |
2-7/16 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
85mm |
17.8 |
71.0 |
260.4 |
89.7 |
219.1 |
28.6 |
M18 |
61.1 |
41.3 |
187.3 |
131.8 |
61.9 | |
