| F4B-GTAH-40M、F4B-GTAH-115 |
|
上海川代轴承机械有限公司 新闻动态 2025-7-24
|
 |
|
Series |
Shaft Size |
Complete Unit
Part No. Description |
Unit without Adapter
Sleeve & Lock Nut
Part No.
Description |
Adapter Sleeve & Lock
Nut Assembly Part
No. Description |
|
208 |
1-1/2 |
@ |
F4B-GTAH-108 |
129479 |
F4B-GTAH-08 |
129914 |
AN-GT-08-108 |
|
1-5/8 |
@ |
F4B-GTAH-110 |
129955 |
AN-GT-08-110 |
|
40mm |
@ |
F4B-GTAH-40M |
129947 |
AN-GT-08-40M |
|
209 |
1-5/8 |
@ |
F4B-GTAH-110L |
129480 |
F4B-GTAH-09 |
129915 |
AN-GT-09-110L |
|
1-11/16 |
129662 |
F4B-GTAH-111 |
129916 |
AN-GT-09-111 |
|
1-3/4 |
065607 |
F4B-GTAH-112 |
129917 |
AN-GT-09-112 |
|
45mm |
@ |
F4B-GTAH-45M |
129948 |
AN-GT-09-45M |
|
210 |
1-15/16 |
129663 |
F4B-GTAH-115 |
129481 |
F4B-GTAH-10 |
129918 |
AN-GT-10-115 |
|
2 |
@ |
F4B-GTAH-200 |
129919 |
AN-GT-10-200 |
|
50mm |
068273 |
F4B-GTAH-50M |
129949 |
AN-GT-10-50M |
|
211 |
2 |
@ |
F4B-GTMAH-200 |
129482 |
F4B-GTAH-11 |
129932 |
AN-GTM-11-200 |
|
2-3/16 |
129664 |
F4B-GTAH-203 |
129920 |
AN-GT-11-203 |
|
2-1/4 |
@ |
F4B-GTAH-204 |
129956 |
AN-GT-11-204 |
|
55mm |
@ |
F4B-GTAH-55M |
129950 |
AN-GT-11-55M |
|
212 |
2-1/4 |
@ |
F4B-GTMAH-204 |
129483 |
F4B-GTAH-12 |
129934 |
AN-GTM-12-204 |
|
2-7/16 |
129665 |
F4B-GTAH-207 |
129921 |
AN-GT-12-207 |
|
60mm |
@ |
F4B-GTAH-60M |
129951 |
AN-GT-12-60M |
|
214 |
2-1/2 |
@ |
F4B-GTMAH-208 |
129484 |
F4B-GTAH-14 |
129936 |
AN-GTM-14-208 |
|
2-11/16 |
@ |
F4B-GTAH-211 |
129922 |
AN-GT-14-211 |
|
70mm |
@ |
F4B-GTAH-70M |
129952 |
AN-GT-14-70M |
|
215 |
2-15/16 |
129666 |
F4B-GTAH-215 |
129485 |
F4B-GTAH-15 |
129923 |
AN-GT-15-215 |
|
3 |
@ |
F4B-GTAH-300 |
129987 |
AN-GT-15-300 |
|
75mm |
@ |
F4B-GTAH-75M |
129953 |
AN-GT-15-75M |
|

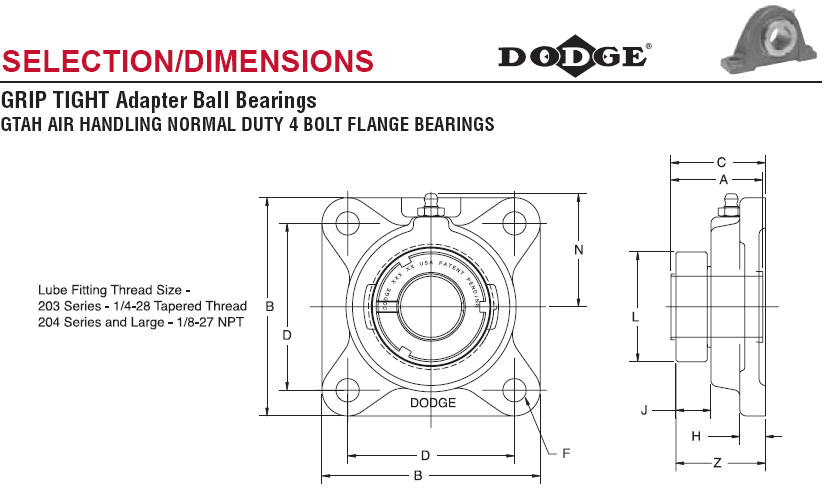

Series |
Shaft Size |
Weight
Lbs kg |
A |
B |
C# |
D |
F
Bolt Dia. |
H |
J |
L |
N |
Z |
|
208 |
1-1/2 |
5.8 |
1-27/32 |
5-1/8 |
1-31/32 |
4 |
1/2 |
9/16 |
43/64 |
2-5/8 |
2-3/8 |
2-7/32 |
|
1-5/8 |
5.6 |
|
|
|
|
|
|
|
|
|
|
|
40mm |
2.6 |
46.8 |
130.2 |
50.0 |
101.6 |
M12 |
14.3 |
17.1 |
66.7 |
60.3 |
56.4 |
|
209 |
1-5/8 |
6.0 |
1-55/64 |
5-3/8 |
2 |
4-1/8 |
1/2 |
5/8 |
11/16 |
2-55/64 |
2-3/4 |
2-3/32 |
|
1-11/16
1-3/4 |
6.0
5.9 |
|
|
|
|
|
|
|
|
|
|
|
45mm |
2.7 |
47.2 |
136.5 |
50.8 |
104.8 |
M12 |
15.9 |
17.5 |
72.6 |
69.9 |
53.2 |
|
210 |
1-15/16 |
6.6 |
1-55/64 |
5-5/8 |
2-3/64 |
4-3/8 |
1/2 |
5/8 |
21/32 |
3-1/8 |
2-7/8 |
2 -1/8 |
|
2 |
6.5 |
|
|
|
|
|
|
|
|
|
|
|
50mm |
3.1 |
47.2 |
142.9 |
52.0 |
111.1 |
M12 |
15.9 |
16.7 |
79.4 |
73.0 |
54.0 |
|
211 |
2 |
10.1 |
1-59/64 |
6-1/2 |
2-9/64 |
5-1/8 |
5/8 |
11/16 |
11/16 |
3-27/64 |
3-1/4 |
2-9/32 |
|
2-3/16
2-1/4 |
9.7
9.6 |
|
|
|
|
|
|
|
|
|
|
|
55mm |
5.0 |
48.8 |
165.1 |
54.4 |
130.2 |
M16 |
17.5 |
17.5 |
86.9 |
82.6 |
57.9 |
|
212 |
2-1/4 |
11.9 |
2-7/64 |
6-7/8 |
2-5/16 |
5-5/8 |
5/8 |
11/16 |
23/32 |
3-11/16 |
3-1/2 |
2-7/16 |
|
2-7/16 |
11.2 |
|
|
|
|
|
|
|
|
|
|
|
60mm |
5.9 |
53.6 |
174.6 |
58.7 |
142.9 |
M16 |
17.5 |
18.3 |
93.7 |
88.9 |
61.9 |
|
214 |
2-1/2 |
15.9 |
2-25/64 |
7-3/8 |
2-53/64 |
5-7/8 |
5/8 |
11/16 |
23/32 |
4 |
3-11/16 |
2-29/32 |
|
2-11/16 |
15.4 |
|
|
|
|
|
|
|
|
|
|
|
70mm |
6.6 |
60.7 |
187.3 |
71.8 |
149.2 |
M16 |
17.5 |
18.3 |
10.6 |
93.7 |
73.8 |
|
215 |
2-15/16 |
16.4 |
2-29/64 |
7-3/4 |
3-3/16 |
6 |
3/4 |
1 |
51/64 |
4-7/16 |
3-7/8 |
3-3/64 |
|
3 |
16.2 |
|
|
|
|
|
|
|
|
|
|
|
75mm |
8.6 |
62.3 |
196.9 |
81.0 |
152.4 |
M18 |
25.4 |
20.2 |
112.7 |
98.4 |
77.4 | |
F4B-GTAH-40M、F4B-GTAH-115现货供应，如有需要请及时联系我们。上海川代轴承机械有限公司同时销售
NN 3019ASK.M.SP,
7312 BEGAM,
L507949 Prec.3,
L623149-90037,
505A,
MP1.1/4,
N318C3,
W5011SA-2Z-C5Z10,
NJ215E.TVP2,
307SL,
ZAF5307F,
5211U,
22334LBKC3,
050270 P2B-SC-103-FF,
GFRN130,
SL04-5020 PP2NR,
CR 20X47X7 HMSA10 RG,
6314ZZC3/5K,
53162,
WS-213,
NUP308E,
MAM30WSS,
2DA-08-OOB,
RFBA115CCR,
RCJT,TCJT25,
FXWG2B08E轴径5/8(in),
FRU211N轴径11/16(in),
TU324轴径1.5(in),
203FF5 G-74 P2S 13284,
071039，P2B512-ISN-055MFS,
以上为我司部分轴承型号，如需查找其他型号，可登陆我们的现货中心栏目或致电021-52797858转8008进行详细查询，谢谢！
，我们还提供其相关技术信息包括
THK LM导轨 CSR 型,
THK 交叉滚子导轨 LRU型,
IKO LWE。。Q/LWET。。Q/LWES。。Q,
124622 LF-SC-012-NL 、 128736 P2B-DLB-200L,
KFXSS212 孔径 3/4,
MZ60 BREU70 (K) E2+E3,
08PM-K049BSTDCN混合型步进电机,
W1001FA-1P-C3Z4,
NAA306-18P06、NAA310-31P,
ZAFS5050MM、ZAFS5207、ZAFS5070MM、ZAFS5080MM,
PKLB66144FR、PKLB66160FR、PKLB66M220FR,
PLY323N、PLY319N、PLY335N、PLY343N,
SB-22204、SB-22205、SB-22206,
SMFC10、SMFC12G、SMFC16G中间加法兰,
P4B-E-115MR、P4B-E-150MR,
我们能针对客户的需求提供各种技术服务，具体详细信息请联系川代轴承全国客服热线021-52797858转8008询价，我们将为您提供专业详细的服务。如需查找其他型号，可登陆我们的现货中心栏目或致电021-52797858转8008询价进行详细查询，谢谢！ |
