| F4B-GT-45M、F4B-GT-110L |
|
上海川代轴承机械有限公司 新闻动态 2025-7-24
|
 |
|
Series |
Shaft Size |
Complete Unit
Part No.
Description |
Unit without Adapter
Sleeve & Lock Nut Part
No. Description |
Adapter Sleeve & Lock
Nut Assembly Part
No. Description |
|
208 |
1-1/2 |
129649 |
F4B-GT-108 |
129469 |
F4B-GT-08 |
129914 |
AN-GT-08-108 |
|
1-5/8 |
129374 |
F4B-GT-110 |
129955 |
AN-GT-08-110 |
|
40mm |
129672 |
F4B-GT-40M |
129947 |
AN-GT-08-40M |
|
209 |
1-5/8 |
129650 |
F4B-GT-110L |
129470 |
F4B-GT-09 |
129915 |
AN-GT-09-110L |
|
1-11/16 |
129651 |
F4B-GT-111 |
129916 |
AN-GT-09-111 |
|
1-3/4 |
129652 |
F4B-GT-112 |
129917 |
AN-GT-09-112 |
|
45mm |
129673 |
F4B-GT-45M |
129948 |
AN-GT-09-45M |
|
210 |
1-15/16 |
129653 |
F4B-GT-115 |
129471 |
F4B-GT-10 |
129918 |
AN-GT-10-115 |
|
2 |
129654 |
F4B-GT-200 |
129919 |
AN-GT-10-200 |
|
50mm |
129674 |
F4B-GT-50M |
129949 |
AN-GT-10-50M |
|
211 |
2 |
129687 |
F4B-GTM-200 |
129472 |
F4B-GT-11 |
129932 |
AN-GTM-11-200 |
|
2-3/16 |
129655 |
F4B-GT-203 |
129920 |
AN-GT-11-203 |
|
2-1/4 |
129379 |
F4B-GT-204 |
129956 |
AN-GT-11-204 |
|
55mm |
129675 |
F4B-GT-55M |
129950 |
AN-GT-11-55M |
|
212 |
2-1/4 |
129689 |
F4B-GTM-204 |
129473 |
F4B-GT-12 |
129934 |
AN-GTM-12-204 |
|
2-7/16 |
129656 |
F4B-GT-207 |
129921 |
AN-GT-12-207 |
|
60mm |
129676 |
F4B-GT-60M |
129951 |
AN-GT-12-60M |
|
214 |
2-1/2 |
129691 |
F4B-GTM-208 |
129474 |
F4B-GT-14 |
129936 |
AN-GTM-14-208 |
|
2-11/16 |
129657 |
F4B-GT-211 |
129922 |
AN-GT-14-211 |
|
70mm |
129677 |
F4B-GT-70M |
129952 |
AN-GT-14-70M |
|
215 |
2-15/16 |
129658 |
F4B-GT-215 |
129475 |
F4B-GT-15 |
129923 |
AN-GT-15-215 |
|
3 |
@ |
F4B-GT-300 |
129987 |
AN-GT-15-300 |
|
75mm |
129678 |
F4B-GT-75M |
129953 |
AN-GT-15-75M |
|

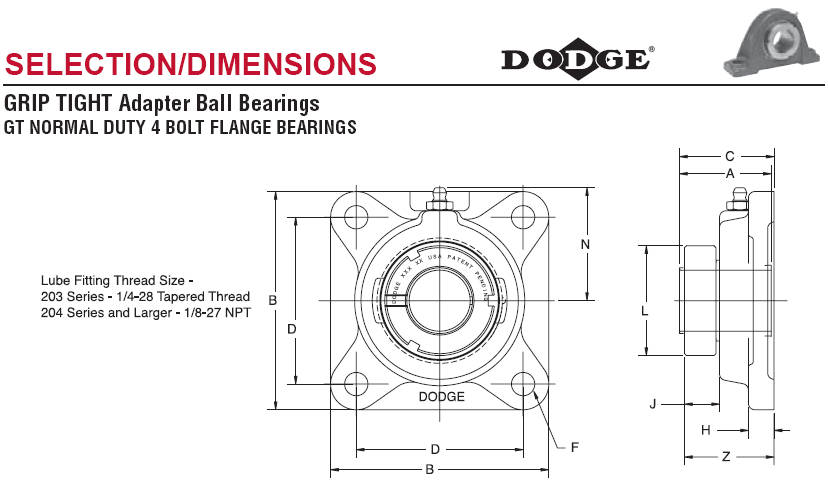

Series |
Shaft Size |
Weight |
|
|
|
|
F |
|
lbs |
A |
B |
C# |
D |
Bolt |
H |
J |
L |
N |
Z |
|
kg |
|
|
|
|
Dia. |
|
208 |
1-1/2 |
5.8 |
1-27/32 |
5-1/8 |
1-31/32 |
4 |
1/2 |
9/16 |
43/64 |
2-5/8 |
2-3/8 |
2-7/32 |
|
1-5/8 |
5.6 |
|
|
|
|
|
|
|
|
|
|
|
40mm |
2.6 |
46.8 |
130.2 |
50.0 |
101.6 |
M12 |
14.3 |
17.1 |
66.7 |
60.3 |
56.4 |
|
209 |
1-5/8 |
6.0 |
1-55/64 |
5-3/8 |
2 |
4-1/8 |
1/2 |
5/8 |
11/16 |
2-55/64 |
2-3/4 |
2-3/32 |
|
1-11/16
1-3/4 |
6.0
5.9 |
|
|
|
|
|
|
|
|
|
|
|
45mm |
2.7 |
47.2 |
136.5 |
50.8 |
104.8 |
M12 |
15.9 |
14.5 |
72.6 |
69.9 |
53.2 |
|
210 |
1-15/16 |
6.6 |
1-55/64 |
5-5/8 |
2-3/64 |
4-3/8 |
1/2 |
5/8 |
21/32 |
3-1/8 |
2-7/8 |
2-1/8 |
|
2 |
6.5 |
|
|
|
|
|
|
|
|
|
|
|
50mm |
3.1 |
47.2 |
142.9 |
52.0 |
111.1 |
M12 |
15.9 |
16.7 |
79.4 |
73.0 |
54.0 |
|
211 |
2 |
10.1 |
1-59/64 |
6-1/2 |
2-9/64 |
5-1/8 |
5/8 |
11/16 |
11/16 |
3-27/64 |
3-1/4 |
2-9/32 |
|
2-3/16
2-1/4 |
9.7
9.6 |
|
|
|
|
|
|
|
|
|
|
|
55mm |
5.0 |
48.8 |
165.1 |
54.4 |
130.2 |
M16 |
17.5 |
14.5 |
86.9 |
82.6 |
57.9 |
|
212 |
2-1/4 |
11.9 |
2-7/64 |
6-7/8 |
2-5/16 |
5-5/8 |
5/8 |
11/16 |
23/32 |
3-11/16 |
3-1/2 |
2-7/16 |
|
2-7/16 |
11.2 |
|
|
|
|
|
|
|
|
|
|
|
60mm |
5.9 |
53.6 |
174.6 |
58.7 |
142.9 |
M16 |
17.5 |
18.3 |
93.7 |
88.9 |
62.0 |
|
214 |
2-1/2 |
15.9 |
2-25/64 |
7-3/8 |
2-53/64 |
5-7/8 |
5/8 |
11/16 |
23/32 |
4 |
3-11/16 |
2-29/32 |
|
2-11/16 |
15.4 |
|
|
|
|
|
|
|
|
|
|
|
70mm |
6.6 |
60.7 |
187.3 |
71.8 |
149.2 |
M16 |
17.5 |
18.3 |
101.6 |
93.7 |
73.8 |
|
215 |
2-15/16 |
16.4 |
2-29/64 |
7-3/4 |
3-3/16 |
6 |
3/4 |
1 |
51/64 |
4-7/16 |
3-7/8 |
3-3/64 |
|
3 |
16.2 |
|
|
|
|
|
|
|
|
|
|
|
75mm |
8.6 |
62.309 |
196.9 |
81.0 |
152.4 |
M18 |
25.4 |
20.2 |
112.7 |
98.4 |
77.4 | |
