| CCYRD-1 3/8、CCYRD-1 3/4、CCYRD-1 7/8 |
|
上海川代轴承机械有限公司 新闻动态 2025-7-24
|
 |
|

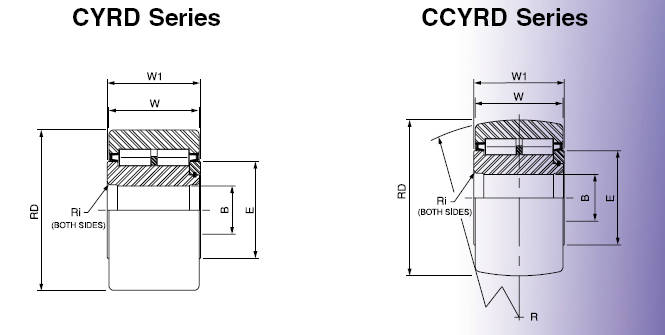

Bearing Number |
Roller Diameter
RD
+.000
-.001 |
Roller Width W
+.000
-.005 |
Bore Diameter B
+.0002
-.0004 |
Overall Width W1
+.005
-.010 |
Endplate OD
E |
Crown
Radius R (CCYRD) |
Bore
Corner Ri** Min |
Recommended Shaft Diameter |
ISO/ABMA Load Rating* |
Track Roller
Load Rating Dynamic Lbs. |
|
Push Fit
+/-.0002 |
Drive Fit
+/-.0002 |
Press Fit
+/-.0002 |
Dynamic Lbs. |
Static Lbs. |
|
CYRD-1 1/4 |
CCYRD-1 1/4 |
1.250 |
.750 |
.3750 |
.8125 |
45/64 |
14 |
.030 |
.3745 |
.3751 |
.3753 |
4000 |
4260 |
3300 |
|
CYRD-1 3/8 |
CCYRD-1 3/8 |
1.375 |
.750 |
.3750 |
.8125 |
45/64 |
14 |
.030 |
.3745 |
.3751 |
.3753 |
4000 |
4260 |
3600 |
|
CYRD-1 1/2 |
CCYRD-1 1/2 |
1.500 |
.875 |
.4375 |
.9375 |
55/64 |
20 |
.040 |
.4370 |
.4376 |
.4378 |
6150 |
6910 |
5000 |
|
CYRD-1 5/8 |
CCYRD-1 5/8 |
1.625 |
.875 |
.4375 |
.9375 |
55/64 |
20 |
.040 |
.4370 |
.4376 |
.4378 |
6150 |
6910 |
5400 |
|
CYRD-1 3/4 |
CCYRD-1 3/4 |
1.750 |
1.000 |
.5000 |
1.0625 |
15/16 |
20 |
.050 |
.4995 |
.5001 |
.5005 |
7900 |
9190 |
6650 |
|
CYRD-1 7/8 |
CCYRD-1 7/8 |
1.875 |
1.000 |
.5000 |
1.0625 |
15/16 |
20 |
.050 |
.4995 |
.5001 |
.5005 |
7900 |
9190 |
7100 |
|
CYRD-2 |
CCYRD-2 |
2.000 |
1.250 |
.6250 |
1.3125 |
1 5/32 |
24 |
.060 |
.6245 |
.6251 |
.6255 |
12100 |
14600 |
9500 |
|
CYRD-2 1/4 |
CCYRD-2 1/4 |
2.250 |
1.250 |
.6250 |
1.3125 |
1 5/32 |
24 |
.060 |
.6245 |
.6251 |
.6255 |
12100 |
14600 |
10500 |
|
CYRD-2 1/2 |
CCYRD-2 1/2 |
2.500 |
1.500 |
.7500 |
1.5625 |
1 5/16 |
30 |
.070 |
.7495 |
.7501 |
.7505 |
16600 |
22600 |
14000 |
|
CYRD-2 3/4 |
CCYRD-2 3/4 |
2.750 |
1.500 |
.7500 |
1.5625 |
1 5/16 |
30 |
.070 |
.7495 |
.7501 |
.7505 |
16600 |
22600 |
15000 |
|
CYRD-3 |
CCYRD-3 |
3.000 |
1.750 |
1.0000 |
1.8125 |
1 27/32 |
30 |
.080 |
.9994 |
1.0002 |
1.0006 |
25100 |
36500 |
18300 |
|
CYRD-3 1/4 |
CCYRD-3 1/4 |
3.250 |
1.750 |
1.0000 |
1.8125 |
1 27/32 |
30 |
.080 |
.9994 |
1.0002 |
1.0006 |
25100 |
36500 |
20300 |
|
CYRD-3 1/2 |
CCYRD-3 1/2 |
3.500 |
2.000 |
1.1250 |
2.0625 |
2 3/16 |
30 |
.09 |
1.1244 |
1.1252 |
1.1256 |
34200 |
52500 |
23700 |
|
CYRD-4 |
CCYRD-4 |
4.000 |
2.250 |
1.2500 |
2.3125 |
2 27/64 |
30 |
.100 |
1.2494 |
1.2502 |
1.2506 |
44100 |
67900 |
32500 |
|
CYRD-5 |
CCYRD-5 |
5.000 |
2.750 |
1.7500 |
2.8750 |
2 61/64 |
48 |
.110 |
1.7494 |
1.7502 |
1.7506 |
67800 |
109500 |
50500 |
|
CYRD-6 |
CCYRD-6 |
6.000 |
3.250 |
2.2500 |
3.3750 |
3 11/16 |
56 |
.120 |
2.2494 |
2.2502 |
2.2506 |
101900 |
169900 |
71500 | |
CCYRD-1 3/8、CCYRD-1 3/4、CCYRD-1 7/8现货供应，如有需要请及时联系我们。上海川代轴承机械有限公司同时销售
NK 45/20(TAF455520),
FC-4K,
7311CTDULP4,
IR80X90X35,
22238YMW33C3,
RTU2-3/16,
CFE20UUR,
RNAST6 (LRT61010),
RNAST25R (LRT253016),
SHW12HRM,
NA5914,
6208TCG12P4,
SFT25HLT,
PEB225M115FH,
75BER19S,
SEA30/XN5CE1DDL,
KWVE35BHLG3,
6004,
614146,
6009U1,
GA350.33,
NTA-411,
CFH4,
R4KSFFST,
1853-423-10,
HWE215S,
206FFT2 G-74 P2S 25769,
NA3065,
6038AV密封盖,
6200ZAV密封盖,
以上为我司部分轴承型号，如需查找其他型号，可登陆我们的现货中心栏目或致电021-52797858转8008进行详细查询，谢谢！
，我们还提供其相关技术信息包括
FYH U(K C CX CHA KC CC )SU ER NA SBNPTH H 数据,
THK 滚珠花键 LTR…A型,
HYSM6008C、HYSM605C、HYSM660C、HYSM607C、HYSM608C、HYSM609C、HYSM6000C、HYSM6001C、HYSM6002C、HYSM6003C、,
SFERAX轴承,
SX07A50LLUC3P#01 7B-SX07A50LLUC3P#02 7B-SX07A53LLUC3P#01 7B-SX07A53LLUC3P#02,
7920A5TRDULP3制NP1045-40K1017-5/8GHLT英7920A5TRDUMP3制NP1045K1017C英7920A5TRDUMP3,
HR3、HR6、HR5、HR8、HR10、HR12、HR18、HR20特殊规格的材质,
FC4351-716 孔径 1-7/16,
BECO 6001 BHT FB 400°高温轴承,
BCFE 1 3/8 SB偏心螺柱,
CCFD 4标准螺柱 4" 2.25" 1.5" 3.5",
FB3U214N、FB3U2M25N、FB3U218N,
MI20S、MI30S,
FND437Z、FND442Z、FND453Z单向轴承,
P2B-GTEZ-25M-SHCR、P2B-GTEZ-012-SHCR,
我们能针对客户的需求提供各种技术服务，具体详细信息请联系川代轴承全国客服热线021-52797858转8008询价，我们将为您提供专业详细的服务。如需查找其他型号，可登陆我们的现货中心栏目或致电021-52797858转8008询价进行详细查询，谢谢！ |
