| P2B-GT-17M、P2B-GTU-010 |
|
上海川代轴承机械有限公司 新闻动态 2025-7-24
|
 |
|
Series |
Shaft
Size |
Complete Unit
Part No.
Description |
Unit without Adapter
Sleeve & Lock Nut Part
No.
Description |
Adapter Sleeve & Lock Nut Assembly Part No.
Description |
|
203 |
1/2 |
129150 |
P2B-GT-008 |
129420 |
P2B-GT-03 |
129902 |
AN-GT-03-008 |
|
5/8 |
129151 |
P2B-GT-010 |
129903 |
AN-GT-03-010 |
|
17mm |
129203 |
P2B-GT-17M |
129942 |
AN-GT-03-17M |
|
203 (GTU) |
1/2
5/8
17mm |
129152
129153
129204 |
P2B-GTU-008
P2B-GTU-010
P2B-GTU-17M |
129432 |
P2B-GTU-03 |
129902
129903
129942 |
AN-GT-03-008
AN-GT-03-010
AN-GT-03-17M |
|
204 |
3/4
20mm |
129154
129205 |
P2B-GT-012
P2B-GT-20M |
129421 |
P2B-GT-04 |
129904
129943 |
AN-GT-04-012
AN-GT-04-20M |
|
205 |
7/8 |
129155 |
P2B-GT-014 |
129422 |
P2B-GT-05 |
129905 |
AN-GT-05-014 |
|
15/16 |
129156 |
P2B-GT-015 |
129906 |
AN-GT-05-015 |
|
1 |
129157 |
P2B-GT-100 |
129907 |
AN-GT-05-100 |
|
25mm |
129206 |
P2B-GT-25M |
129944 |
AN-GT-05-25M |
|
206 |
1-1/8 |
129158 |
P2B-GT-102 |
129423 |
P2B-GT-06 |
129908 |
AN-GT-06-102 |
|
1-3/16 |
129159 |
P2B-GT-103 |
129909 |
AN-GT-06-103 |
|
1-1/4 |
129160 |
P2B-GT-104S |
129910 |
AN-GT-06-104S |
|
30mm |
129207 |
P2B-GT-30M |
129945 |
AN-GT-06-30M |
|
206 (GTU) |
1-1/8 |
129841 |
P2B-GTU-102 |
129419 |
P2B-GTU-06 |
129908 |
AN-GT-06-102 |
|
1-3/16 |
129842 |
P2B-GTU-103 |
129909 |
AN-GT-06-103 |
|
1-1/4 |
129843 |
P2B-GTU-104S |
129910 |
AN-GT-06-104 |
|
30mm |
129208 |
P2B-GTU-30M |
129945 |
AN-GT-06-30M |
|
207 |
1-1/4 |
129161 |
P2B-GT-104 |
129424 |
P2B-GT-07 |
129911 |
AN-GT-07-104 |
|
1-3/8 |
129162 |
P2B-GT-106 |
129912 |
AN-GT-07-106 |
|
1-7/16 |
129163 |
P2B-GT-107 |
129913 |
AN-GT-07-107 |
|
35mm |
129209 |
P2B-GT-35M |
129946 |
AN-GT-07-35M |
|

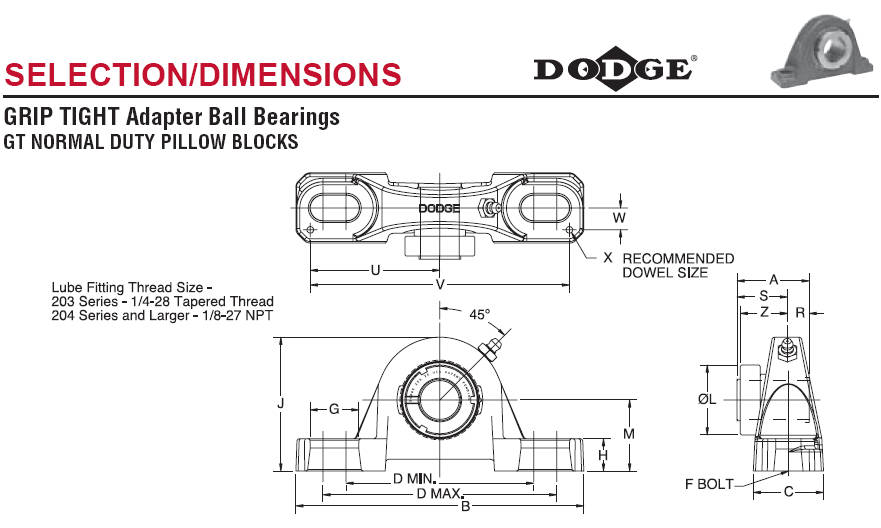

Shaft |
Weight |
|
D
min. max. |
F |
|
Series |
Size |
lbs |
A |
B |
C |
Bolt |
G |
H |
J |
L |
M |
R# |
S# |
U |
V |
W |
X* |
Z |
|
kg |
|
Dia. |
|
203 |
1/2 |
1.5 |
1-19/64 |
5 |
1-13/64 |
3-1/4 |
4-1/16 |
3/8 |
27/32 |
25/64 |
2-5/32 |
1-13/32 |
1-1/16 |
13/32 |
57/64 |
2-1/4 |
4-1/2 |
3/8 |
1/8 |
59/64 |
|
5/8 |
1.5 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
17mm |
0.6 |
32.9 |
127.0 |
30.6 |
82.6 |
103.2 |
M10 |
21.4 |
9.9 |
54.8 |
35.7 |
27.0 |
10.3 |
22.6 |
57.2 |
114.3 |
9.5 |
3.2 |
23.4 |
|
203
(GTU) |
1/2 |
1.7 |
1-19/64 |
5 |
1-13/64 |
3-1/4 |
4-1/16 |
3/8 |
27/32 |
17/32 |
2-9/32 |
1-13/32 |
1-3/16 |
13/32 |
57/64 |
2-1/4 |
4-1/2 |
3/8 |
1/8 |
59/64 |
|
5/8 |
1.6 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
17mm |
0.7 |
32.9 |
127.0 |
30.6 |
82.6 |
103.2 |
M10 |
21.4 |
13.5 |
57.9 |
35.7 |
30.2 |
10.3 |
22.6 |
57.2 |
114.3 |
9.5 |
3.2 |
23.4 |
|
204 |
3/4
20mm |
2.1
1.0 |
1-15/32
37.3 |
5-1/4
133.4 |
1-21/64
33.7 |
3-3/8
85.7 |
4-3/16
106.4 |
3/8
M10 |
27/32
21.4 |
33/64
13.1 |
2-35/64
64.7 |
1-1/2
38.1 |
1-5/16
33.3 |
31/64
12.3 |
63/64
25.0 |
2-1/4
57.2 |
4-1/2
114.3 |
1/2
12.7 |
1/8
3.2 |
1-3/64
26.6 |
|
205 |
7/8 |
2.3 |
1-29/64 |
5-1/2 |
1-13/32 |
3-11/16 |
4-1/2 |
3/8 |
27/32 |
37/64 |
2-25/32 |
1-51/64 |
1-7/16 |
1/2 |
61/64 |
2-1/2 |
5 |
1/2 |
3/16 |
1-1/64 |
|
15/16
1 |
2.3
2.3 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
25mm |
1.1 |
36.9 |
139.7 |
35.7 |
93.7 |
114.3 |
M10 |
21.4 |
14.7 |
70.6 |
45.6 |
36.5 |
12.7 |
24.2 |
63.5 |
127.0 |
12.7 |
4.8 |
25.8 |
|
206 |
1-1/8 |
3.7 |
1-39/64 |
6-1/4 |
1-47/64 |
4-1/4 |
5 |
1/2 |
15/16 |
5/8 |
3-1/4 |
2-5/64 |
1-5/8 |
17/32 |
1-5/64 |
2-7/8 |
5-3/4 |
9/16 |
3/16 |
1-1/8 |
|
1-3/16
1-1/4 |
3.6
3.6 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
30mm |
1.7 |
40.9 |
158.8 |
44.1 |
108.0 |
127.0 |
M12 |
23.8 |
15.9 |
82.6 |
52.8 |
41.3 |
13.5 |
27.4 |
73.0 |
146.1 |
14.3 |
4.8 |
28.6 |
|
206 |
1-1/8 |
3.8 |
1-39/64 |
6-1/4 |
1-47/64 |
4-1/4 |
5 |
1/2 |
15/16 |
45/64 |
3-5/16 |
2-5/64 |
1-11/16 |
17/32 |
1-5/64 |
2-7/8 |
5-3/4 |
9/16 |
3/16 |
1-1/8 |
|
1-3/16 |
3.7 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
(GTU) |
1-1/4 |
3.7 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
30mm |
1.7 |
40.9 |
158.8 |
44.1 |
108.0 |
127.0 |
M12 |
23.8 |
17.9 |
84.1 |
52.8 |
42.9 |
13.5 |
27.4 |
73.0 |
146.1 |
14.3 |
4.8 |
28.6 |
|
207 |
1-1/4 |
4.9 |
1-5/8 |
6-1/2 |
1-47/64 |
4-11/16 |
5-7/16 |
1/2 |
15/16 |
45/64 |
3-3/4 |
2-3/8 |
1-7/8 |
9/16 |
1-1/16 |
2-29/32 |
5-13/16 |
9/16 |
3/16 |
1-9/64 |
|
1-3/8
1-7/16 |
4.9
4.8 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
35mm |
2.2 |
41.3 |
165.1 |
44.1 |
119.1 |
138.1 |
M12 |
23.8 |
17.9 |
95.3 |
60.3 |
47.6 |
14.3 |
27.0 |
73.8 |
147.6 |
14.3 |
4.8 |
29.0 | |
P2B-GT-17M、P2B-GTU-010现货供应，如有需要请及时联系我们。上海川代轴承机械有限公司同时销售
