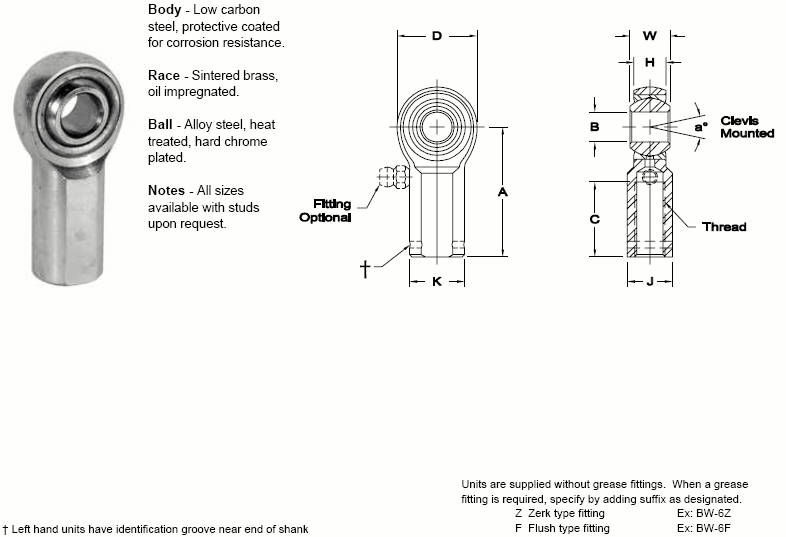

ROD END NO.

DIMENSIONS IN INCHES

a° Misalign. Angle

Ultimate Radial

Static Load

Capacity Lbs.

Approx.

Brg. Wt.

 Lbs.

Right

Hand

Left

Hand†

B

+ .0015

-.0005

W

+ .000

- .005

H

± .005

A

± .015

D

± .010

K

± .010

J

± .010

Ball Dia.

Ref.

C

+ .062

- .031

Thread

UNF-2B

BW-3

BG-3

.1900

.312

.250

1.062

.625

.406

.312

.437

.562

10-32

13

1,531

.04

BW-4

BG-4

.2500

.375

.281

1.312

.750

.469

.375

.500

.750

1/4-28

16

2,539

.06

BW-5

BG-5

.3125

.437

.344

1.375

.875

.500

.437

.625

.750

5/16-24

14

3,133

.09

BW-6

BG-6

.3750

.500

.406

1.625

1.000

.687

.562

.719

.937

3/8-24

12

3,915

.15

BW-7

BG-7

.4375

.562

.437

1.812

1.125

.750

.625

.812

1.062

7/16-20

14

4,218

.20

BW-8

BG-8

.5000

.625

.500

2.125

1.312

.875

.750

.937

1.187

1/2-20

12

6,660

.33

BW-10

BG-10

.6250

.750

.562

2.500

1.500

1.000

.875

1.125

1.500

5/8-18

16

7,364

.48

BW-12

BG-12

.7500

.875

.687

2.875

1.750

1.125

1.000

1.312

1.750

3/4-16

14

11,518

.72
