ROD END NO.

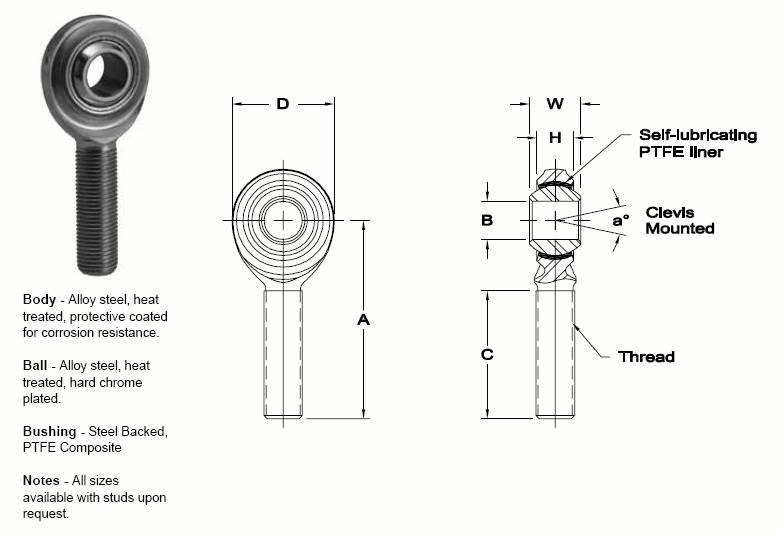

DIMENSIONS IN INCHES

a° Misalign.

Angle

Ultimate Radial

Static Load

Capacity Lbs.

Approx.

Brg. Wt.

Lbs.

Right

Hand

Left

Hand

B

+ .0025

- .0005

W

+ .005

H

Ref.

A

± .015

D

Ref.

Ball Dia.

Ref.

C

+ .062

- .031

Thread

UNF-3A

VCAM-5

VCAB-5

.3125

.437

.312

1.875

.875

.593

1.250

5/16-24

18

5,032

.07

VCAM-6

VCAB-6

.3750

.500

.359

1.938

1.000

.687

1.250

3/8-24

18

6,533

.11

VCAM-7

VCAB-7

.4375

.562

.406

2.125

1.125

.781

1.375

7/16-20

17

8,054

.15

VCAM-8

VCAB-8

.5000

.625

.453

2.438

1.312

.875

1.500

1/2-20

16

13,425

.24

VCAM-10

VCAB-10

.6250

.750

.484

2.625

1.500

1.062

1.625

5/8-18

22

14,755

.36

VCAM-12

VCAB-12

.7500

.875

.593

2.875

1.750

1.250

1.750

3/4-16

20

21,150

.57
