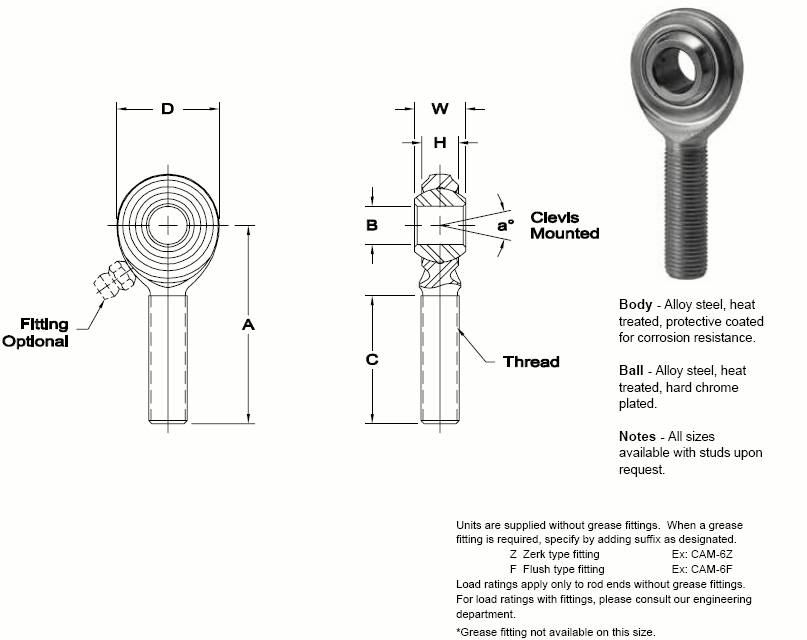

ROD END NO.

DIMENSIONS IN INCHES

a° Misalign.

Angle

Ultimate Radial

Static Load

Capacity Lbs.

Approx. Brg.

Wt. Lbs.

Right

Hand

Left

Hand

B

+ .0025

- .0005

W

+ .005

H

Ref.

A

± .015

D

Ref.

Ball Dia.

Ref.

C

+ .062

- .031

Thread

UNF-3A

CAM-5

CAB-5

.3125

.437

.312

1.875

.875

.625

1.250

5/16-24

22

6,684

.07

CAM-6

CAB-6

.3750

.500

.359

1.938

1.000

.719

1.250

3/8-24

22

9,088

.11

CAM-7

CAB-7

.4375

.562

.406

2.125

1.125

.812

1.375

7/16-20

21

11,445

.15

CAM-8

CAB-8

.5000

.625

.453

2.438

1.312

.937

1.500

1/2-20

20

15,479

.24

CAM-10

CAB-10

.6250

.750

.484

2.625

1.500

1.125

1.625

5/8-18

26

17,470

.36

CAM-12

CAB-12

.7500

.875

.593

2.875

1.750

1.312

1.750

3/4-16

24

24,471

.57
