| 9NBC1419YZP、8NBC1218YZP、20NBC2032YZP |
|
上海川代轴承机械有限公司 新闻动态 2026-6-17
|
|
|
|

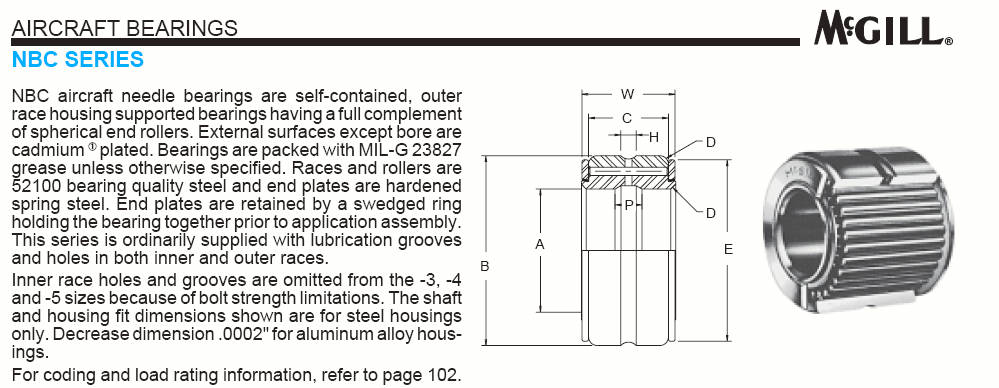

ABMA
NUMBER |
MILITARY
STANDARD
REFERENCE
NUMBER MS- |
A |
B |
W |
C |
D |
E |
H |
P |
|
BORE |
O.D. |
OVERALL
WIDTH |
O.R.
WIDTH |
RADIUS OR 45° BEVEL |
END RING DIA. |
O.R.
GROOVE WIDTH |
I.R.
GROOVE WIDTH |
|
NOM.
DIA. |
TOL. |
NOM.
DIA. |
TOL. |
+.000
-.005 |
+.000
-.005 |
|
3NBC511ZP |
24461-3 |
.1900 |
+.0000
-.0007 |
.6875 |
+.0000
-.0005 |
.312 |
.218 |
.022 |
5/8 |
1/16 |
- |
|
4NBC612ZP |
24461-4 |
.2500 |
.7500 |
.375 |
.281 |
.022 |
11/16 |
3/32 |
- |
|
5NBC713ZP |
24461-5 |
.3125 |
.8125 |
.437 |
.344 |
.022 |
3/4 |
3/32 |
- |
|
6NBC914YZP |
24461-6 |
.3750 |
.8750 |
.562 |
.469 |
.022 |
13/16 |
1/8 |
3/16 |
|
7NBC1015YZP |
24461-7 |
.4375 |
.9375 |
.625 |
.531 |
.032 |
7/8 |
1/8 |
3/16 |
|
8NBC1218YZP |
24461-8 |
.5000 |
1.1250 |
.750 |
.656 |
.032 |
1 1/32 |
1/8 |
3/16 |
|
9NBC1419YZP |
24461-9 |
.5625 |
1.1875 |
.875 |
.781 |
.032 |
1 3/32 |
5/32 |
3/16 |
|
10NBC1620YZP |
24461-10 |
.6250 |
1.2500 |
1.000 |
.906 |
.032 |
1 5/32 |
5/32 |
1/4 |
|
12NBC1822YZP |
24461-12 |
.7500 |
1.3750 |
1.125 |
1.000 |
.032 |
1 9/32 |
5/32 |
1/4 |
|
14NBC2026YZP |
24461-14 |
.8750 |
1.6250 |
1.250 |
1.125 |
.032 |
1 1/2 |
5/32 |
3/8 |
|
16NBC2028YZP |
24461-16 |
1.0000 |
1.7500 |
1.250 |
1.125 |
.032 |
1 5/8 |
5/32 |
3/8 |
|
20NBC2032YZP |
24461-20 |
1.2500 |
2.0000 |
+.0000
-.0006 |
1.250 |
1.049 |
.032 |
1 29/32 |
5/32 |
3/8 |
|
24NBC2036YZP |
24461-24 |
1.5000 |
2.2500 |
1.250 |
1.049 |
.032 |
2 5/32 |
5/32 |
3/8 |
|
28NBC2040YZP |
24461-28 |
1.7500 |
2.5000 |
1.250 |
1.049 |
.032 |
2 13/32 |
5/32 |
3/8 |
|
32NBC2044YZP |
24461-32 |
2.0000 |
2.7500 |
1.250 |
1.049 |
.032 |
2 21/32 |
5/32 |
3/8 |
|
36NBC2048YZP |
24461-36 |
2.2500 |
3.0000 |
1.250 |
1.049 |
.032 |
2 29/32 |
5/32 |
3/8 |
|
40NBC2052YZP |
24461-40 |
2.5000 |
3.2500 |
+.0000
-.0008 |
1.250 |
1.049 |
.032 |
3 5/32 |
5/32 |
3/8 |
|
44NBC2056YZP |
24461-44 |
2.7500 |
3.5000 |
1.250 |
1.049 |
.032 |
3 13/32 |
5/32 |
3/8 |
|
48NBC2060YZP |
24461-48 |
3.0000 |
3.7500 |
1.250 |
1.049 |
.032 |
3 21/32 |
5/32 |
3/8 |
|
52NBC2064YZP |
24461-52 |
3.2500 |
4.0000 |
1.250 |
1.049 |
.032 |
3 29/32 |
5/32 |
3/8 |
|
56NBC2070YZP |
24461-56 |
3.5000 |
+.0000
-.0008 |
4.3750 |
1.250 |
1.049 |
.044 |
4 7/32 |
5/32 |
3/8 |
|
60NBC2074YZP |
24461-60 |
3.7500 |
4.6250 |
1.250 |
1.049 |
.044 |
4 15/32 |
5/32 |
3/8 |
|
64NBC2078YZP |
24461-64 |
4.0000 |
4.8750 |
+.0000
-.0010 |
1.250 |
1.049 |
.044 |
4 23/32 |
5/32 |
3/8 | |
9NBC1419YZP、8NBC1218YZP、20NBC2032YZP现货供应，如有需要请及时联系我们。上海川代轴承机械有限公司同时销售
