| GR-10-SS、GR-12-SS、GR-14-SS |
|
上海川代轴承机械有限公司 新闻动态 2025-6-14
|
|
|
|
|

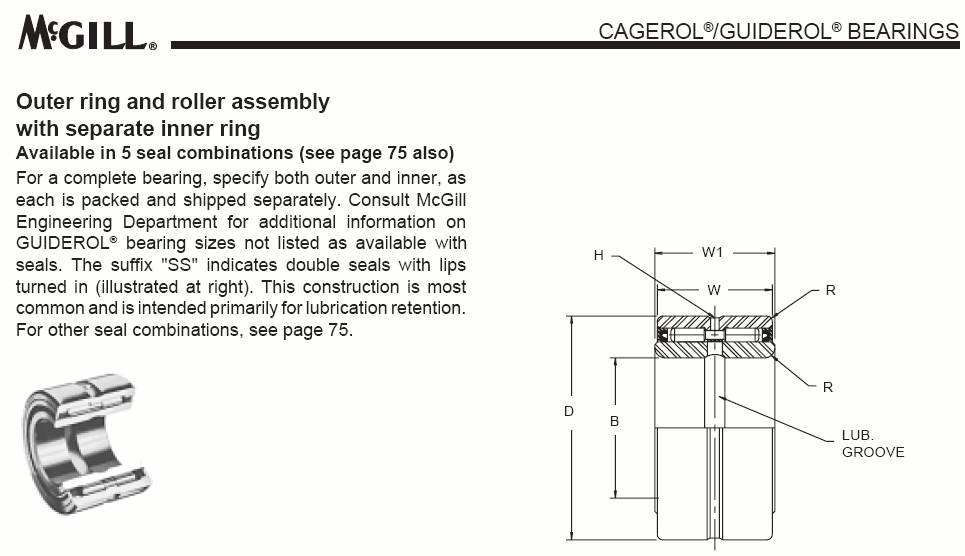

McGILL NUMBER
outer ring
& roller assy. |
McGILL NUMBER
inner ring only |
B |
D* |
W |
W1 |
H |
R |
SHAFT DIA. |
HSG. BORE DIA. |
STATIC LOAD RATING (LBS.) |
BASIC DYNAMIC RATING (LBS.) |
|
|
+.0000 |
TOL. |
+.0000 |
TOL. |
+.000
-.005 |
+.000
-.005 |
HOLE DIA. |
MAX. FILLET
for shaft
& hsg. |
ROTAT. SHAFT |
TOL.
+.0000 |
STAT. SHAFT |
TOL.
+.0000 |
ROTAT. HSG. |
TOL.
+.0000 |
STAT. HSG. |
TOL.
+.0000 |
|
|
GR-10-SS |
MI-6 |
.3750 |
-.0004 |
1.1250 |
-.0005 |
1.000 |
1.010 |
5/64 |
.025 |
.3755 |
-.0005 |
.3747 |
-.0005 |
1.1247 |
-.0007 |
1.1257 |
-.0007 |
6400 |
3400 |
|
|
GR-12-SS |
MI-8 |
.5000 |
1.2500 |
1.000 |
1.010 |
5/64 |
.040 |
.5005 |
.4997 |
1.2497 |
1.2497 |
7200 |
3700 |
|
|
GR-14-SS |
MI-10 |
.6250 |
1.3750 |
1.000 |
1.010 |
5/64 |
.040 |
.6255 |
.6247 |
1.3747 |
1.3757 |
8400 |
4150 |
|
|
GR-16-SS |
MI-12 MI-13 |
.7500
.8125 |
1.5000
1.5000 |
1.000
1.000 |
1.010
1.010 |
5/64 |
.040 |
.7505
.8129 |
.7497
.8121 |
1.4997
1.4997 |
1.5007
1.5007 |
9600
9600 |
4350
4350 |
|
|
-.0005 |
|
|
GR-18-SS |
MI-14 MI-15 |
.8750
.9375 |
1.6250
1.6250 |
1.250
1.250 |
1.260
1.260 |
3/32 |
.040 |
.8754
.9379 |
.8746
.9371 |
1.6247
1.6247 |
1.6257
1.6257 |
15200
15200 |
6250
6250 |
|
|
GR-20-SS |
MI-16 |
1.0000 |
1.7500 |
1.250 |
1.260 |
3/32 |
.040 |
1.0004 |
.9996 |
1.7497 |
1.7507 |
17000 |
6500 |
|
|
GR-22-SS |
MI-17 MI-18 |
1.0625
1.1250 |
1.8750
1.8750 |
1.250
1.250 |
1.260
1.260 |
3/32 |
.040 |
1.0630
1.1255 |
1.0621
1.1246 |
1.8747
1.8747 |
1.8757
1.8757 |
18600
18600 |
7100
7100 |
|
|
GR-24-SS |
MI-19 MI-20 |
1.1875
1.2500 |
2.0625
2.0625 |
-.0006 |
1.250
1.250 |
1.260
1.260 |
3/32 |
.060 |
1.1880
1.2505 |
1.1871
1.2496 |
2.0621
2.0621 |
2.0632
2.0632 |
20200
20200 |
7150
7150 |
|
|
GR-26-SS |
MI-21
MI-22-4S |
1.3125
1.3750 |
2.1875
2.1875 |
1.250
1.250 |
1.260
1.260 |
3/32 |
.060 |
1.3130
1.3755 |
1.3121
1.3746 |
2.1871
2.1871 |
2.1882
2.1882 |
21700
21700 |
7500
7500 |
|
|
GR-28-SS |
MI-22 MI-23 MI-24 |
1.3750
1.4375
1.5000 |
2.3125
2.3125
2.3125 |
1.250
1.250
1.250 |
1.260
1.260
1.260 |
3/32 |
.060 |
1.3755
1.4380
1.5005 |
1.3746
1.4371
1.4996 |
2.3121
2.3121
2.3121 |
2.3132
2.3132
2.3132 |
23300
23300
23300 |
7750
7750
7750 |
|
|
GR-30-SS |
MI-25-4S |
1.5625 |
2.4375 |
1.250 |
1.260 |
3/32 |
.060 |
1.5630 |
1.5621 |
2.4371 |
2.4382 |
25200 |
8150 |
|
|
GR-32-SS |
MI-25 MI-26 MI-27 |
1.5625
1.6250
1.6875 |
2.5625
2.5625
2.5625 |
1.250
1.250
1.250 |
1.260
1.260
1.260 |
3/32 |
.060 |
1.5630
1.6255
1.6880 |
1.5621
1.6246
1.6871 |
2.5621
2.5621
2.5621 |
2.5632
2.5632
2.5632 |
26700
26700
26700 |
8000
8000
8000 |
|
|
GR-36-SS |
MI-28 MI-30 |
1.7500
1.8750 |
3.0000
3.0000 |
1.750
1.750 |
1.760
1.760 |
1/8 |
.060 |
1.7505
1.8755 |
1.7496
1.8746 |
2.9996
2.9996 |
3.0007
3.0007 |
49100
49100 |
15250
15250 |
|
|
GR-40-SS |
MI-31 MI-32
MI-34 |
1.9375
2.0000
2.1250 |
3.2500
3.2500
3.2500 |
1.750
1.750
1.750 |
1.760
1.760
1.760 |
1/8 |
.080 |
1.9380
2.0005
2.1258 |
1.9371
1.9996
2.1247 |
3.2496
3.2496
3.2496 |
3.2507
3.2507
3.2507 |
54500
54500
54500 |
16200
16200
16200 |
|
|
-.0006 |
-.0008 |
-.0008 |
|
|
GR-44-SS |
MI-35 MI-36 |
2.1875
2.2500 |
3.5000
3.5000 |
-.0008 |
1.750
1.750 |
1.760
1.760 |
1/8 |
.080 |
2.1883
2.2508 |
1.1872
2.2497 |
3.4995
3.4995 |
-.0010 |
3.5008
3.5008 |
-.0010 |
59900
59900 |
16800
16800 |
|
|
GR-48-SS |
MI-38 MI-39 MI-40 |
2.3750
2.4375
2.5000 |
3.7500
3.7500
3.7500 |
1.750
1.750
1.750 |
1.760
1.760
1.760 |
1/8 |
.080 |
2.3758
2.4383
2.5008 |
2.3747
2.4372
2.4997 |
3.7495
3.7495
3.7495 |
3.7508
3.7508
3.7508 |
65400
65400
65400 |
17350
17350
17350 |
|
|
GR-52-SS |
MI-42 MI-44 |
2.6250
2.7500 |
4.2500
4.2500 |
1.750
1.750 |
1.760
1.760 |
3/16 |
.080 |
2.6258
2.7508 |
2.6247
2.7497 |
4.2495
4.2495 |
4.2508
4.2508 |
63800
63800 |
20050
20050 |
|
|
GR-56-SS |
MI-46 MI-47 MI-48 |
2.8750
2.9375
3.0000 |
4.5000
4.5000
4.5000 |
2.000
2.000
2.000 |
2.010
2.010
2.010 |
3/16 |
.080 |
2.8758
2.9383
3.0008 |
2.8747
2.9372
2.9997 |
4.4995
4.4995
4.4995 |
4.5008
4.5008
4.5008 |
86500
86500
86500 |
25100
25100
25100 |
|
|
GR-60-SS |
MI-50 MI-52 |
3.1250
3.2500 |
4.7500
4.7500 |
2.000
2.000 |
2.010
2.010 |
3/16 |
.100 |
3.1260
3.2510 |
-.0010 |
3.1246
3.2496 |
-.0010 |
4.7495
4.7495 |
4.7508
4.7508 |
92300
92300 |
25450
25450 |
|
|
GR-64-SS |
MI-54 MI-56 |
3.3750
3.5000 |
-.0008 |
5.0000
5.0000 |
-.0010 |
2.000
2.000 |
2.010
2.010 |
3/16 |
.100 |
3.3758
3.5008 |
3.3746
3.4996 |
4.9999
4.9999 |
-.0015 |
5.0011
5.0011 |
-.0015 |
98800
98800 |
26750
26750 |
|
|
GR-68-SS |
MI-58 MI-60 |
3.6250
3.7500 |
5.2500
5.2500 |
2.000
2.000 |
2.010
2.010 |
3/16 |
.100 |
3.6258
3.7508 |
3.6246
3.7496 |
5.2499
5.2499 |
5.2511
5.2511 |
104000
104000 |
27400
27400 |
| |
