| GR-10-N、GR-14-N、GR-22-N |
|
上海川代轴承机械有限公司 新闻动态 2026-1-26
|
|
|
|
McGILL NUMBER

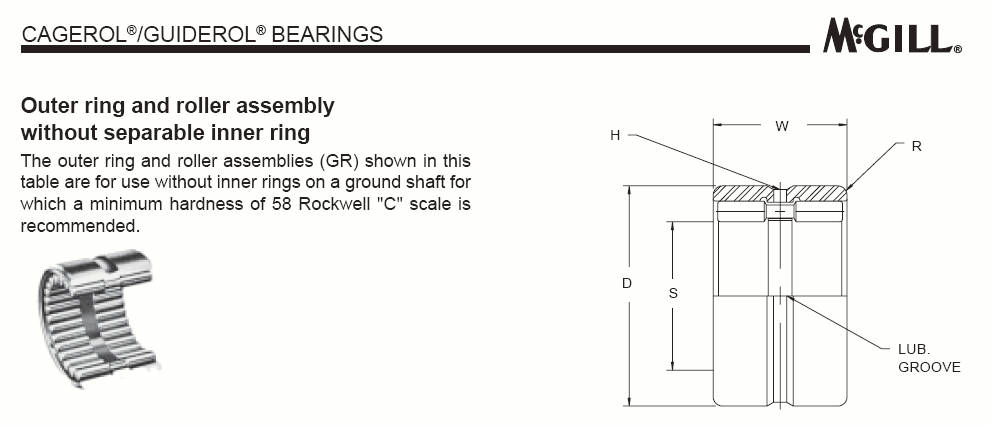

outer ring
& roller |
ABMA NUMBER |
S SHAFT DIA. |
D |
W |
H |
R |
HSG. BORE DIA. |
STATIC LOAD RATING (LBS.) |
BASIC DYNAMIC RATING (LBS.) |
|
+.0000 |
TOL. |
+.0000 |
TOL. |
+.000
-.005 |
HOLE DIA. |
MAX. FILLET FOR HOUSING |
ROTATING HOUSING |
TOL.
+.0000 |
STATIONARY HOUSING |
TOL.
+.0000 |
|
GR-8-N |
8NAR1216 |
.5000 |
-.0005 |
1.0000 |
-.0005 |
.750 |
5/64 |
.025 |
.9997 |
-.0007 |
1.0007 |
-.0007 |
4500 |
2600 |
|
GR-10-N |
10NAR1218 |
.6250 |
1.1250 |
.750
1.000 |
5/64 |
.025 |
1.1247 |
1.1257 |
6400
9100 |
3400
4700 |
|
GR-10 |
10NAR1618 |
|
GR-12-N |
12NAR1220 |
.7500 |
1.2500 |
.750
1.000 |
5/64 |
.040 |
1.2497 |
1.2507 |
7200
10900 |
3700
5100 |
|
GR-12 |
12NAR1620 |
|
GR-14-N |
14NAR1222 |
.8750 |
1.3750 |
.750
1.000 |
5/64 |
.040 |
1.3747 |
1.3757 |
8400
12800 |
4150
5700 |
|
GR-14 |
14NAR1622 |
|
GR-16-N |
16NAR1224 |
1.0000 |
1.5000 |
.750
1.000 |
5/64 |
.040 |
1.4997 |
1.5007 |
9600
14500 |
4350
6050 |
|
GR-16 |
16NAR1624 |
|
GR-18-N |
18NAR1626 |
1.1250 |
1.6250 |
1.000
1.250 |
3/32 |
.040 |
1.6247 |
1.6257 |
15200
20900 |
6250
7900 |
|
GR-18 |
18NAR2026 |
|
GR-20-N |
20NAR1628 |
1.2500 |
1.7500 |
1.000
1.250 |
3/32 |
.040 |
1.7497 |
1.7507 |
17000
23100 |
6500
8300 |
|
GR-20 |
20NAR2028 |
|
GR-22-N |
22NAR1630 |
1.3750 |
1.8750 |
1.000
1.250 |
3/32 |
.040 |
1.8747 |
1.8757 |
18600
25500 |
7100
9050 |
|
GR-22 |
22NAR2030 |
|
GR-24-N |
24NAR1633 |
1.5000 |
2.0625 |
-.0006 |
1.000
1.250 |
3/32 |
.060 |
2.0621 |
2.0632 |
20200
27800 |
7150
9150 |
|
GR-24 |
24NAR2033 |
|
GR-26-N |
26NAR1635 |
1.6250 |
2.1875 |
1.000
1.250 |
3/32 |
.060 |
2.1871 |
2.1882 |
21700
29800 |
7500
9600 |
|
GR-26 |
26NAR2035 |
|
GR-28 |
28NAR2037 |
1.7500 |
2.3125 |
1.250 |
3/32 |
.060 |
2.3121 |
2.3132 |
32100 |
9850 |
|
GR-30 |
30NAR2039 |
1.8750 |
2.4375 |
1.250 |
3/32 |
.060 |
2.4371 |
2.4382 |
34600 |
10450 |
|
GR-32-N
GR-32 |
32NAR1641
32NAR2041 |
2.0000 |
2.5625 |
1.000
1.250 |
3/32 |
.060 |
2.5621 |
2.5632 |
26700
36700 |
8000
10250 |
|
assy. |
|
|
GR-36-N |
36NAR2448 |
2.2500 |
3.0000 |
1.500
1.750 |
1/8 |
.060 |
2.9996 |
3.0007 |
49100
60200 |
15250
18450 |
|
GR-36 |
36NAR2848 |
|
GR-40-N |
40NAR2452 |
2.5000 |
3.2500 |
1.500
1.750 |
1/8 |
.080 |
3.2496 |
3.2507 |
54500
66800 |
16200
19800 |
|
GR-40 |
40NAR2852 |
|
GR-44-N |
44NAR2456 |
2.7500 |
3.5000 |
-.0008 |
1.500
1.750 |
1/8 |
.080 |
3.4995 |
-.0010 |
3.5008 |
-.0010 |
59900
73400 |
16800
20350 |
|
GR-44 |
44NAR2856 |
|
GR-48-N |
48NAR2460 |
3.0000 |
3.7500 |
1.500
1.750 |
1/8 |
.080 |
3.7495 |
3.7508 |
65400
80200 |
17350
20600 |
|
GR-48 |
48NAR2860 |
|
GR-52 |
52NAR2868 |
3.2500 |
4.2500 |
1.750 |
3/16 |
.080 |
4.2495 |
4.2508 |
80100 |
23950 |
|
GR-56-N |
56NAR2872 |
3.5000 |
4.5000 |
1.750
2.000 |
3/16 |
.080 |
4.4995 |
4.5008 |
86500
104000 |
25100
28900 |
|
GR-56 |
56NAR3272 |
|
GR-60 |
60NAR3276 |
3.7500 |
4.7500 |
2.000 |
3/16 |
.100 |
4.7495 |
4.7508 |
111000 |
29300 |
|
GR-64 |
64NAR3280 |
4.0000 |
-.0007 |
5.0000 |
-.0010 |
2.000 |
3/16 |
.100 |
4.9999 |
-.0015 |
5.0011 |
-.0015 |
119000 |
30900 |
|
GR-68 |
68NAR3284 |
4.2500 |
5.2500 |
2.000 |
3/16 |
.100 |
5.2499 |
5.2511 |
126000 |
31500 |
|
GR-72 |
72NAR3696 |
4.5000 |
6.0000 |
2.250 |
1/4 |
.100 |
5.9999 |
6.0011 |
145000 |
43400 |
|
GR-80 |
80NAR36104 |
5.0000 |
6.5000 |
2.250 |
1/4 |
.100 |
6.4999 |
6.5011 |
161000 |
48800 |
|
GR-88-N |
88NAR40112 |
5.5000 |
7.0000 |
2.500
3.000 |
1/4 |
.100 |
6.9999 |
7.0011 |
171000
205000 |
60700
65000 |
|
GR-88 |
88NAR48112 |
|
GR-96-N |
96NAR40120 |
6.0000 |
-.0010 |
7.5000 |
-.0012 |
2.500
3.000 |
1/4 |
.120 |
7.4998 |
7.5011 |
223000
283000 |
65700
71400 |
|
GR-96 |
96NAR48120 |
|
GR-104-N |
104NAR40128 |
6.5000 |
8.0000 |
2.500
3.000 |
1/4 |
.120 |
7.9998 |
8.0011 |
242000
308000 |
68900
75000 |
|
GR-104 |
104NAR48128 |
|
GR-116 |
116NAR48146 |
7.2500 |
9.1250 |
3.000 |
1/4 |
.120 |
9.1248 |
9.1261 |
332000 |
83900 |
|
GR-124 |
124NAR48154 |
7.7500 |
9.6250 |
3.000 |
1/4 |
.120 |
9.6250 |
-.0020 |
9.6265 |
-.0020 |
355000 |
86200 |
|
GR-132 |
132NAR48162 |
8.2500 |
10.1250 |
3.000 |
1/4 |
.120 |
10.1250 |
10.1265 |
378000 |
88700 |
|
GR-140 |
140NAR48170 |
8.7500 |
10.6250 |
-.0014 |
3.000 |
1/4 |
.160 |
10.6250 |
10.6265 |
401000 |
91500 |
|
GR-148 |
148NAR48178 |
9.2500 |
11.1250 |
3.000 |
1/4 |
.160 |
11.1250 |
11.1265 |
423000 |
93500 | |
