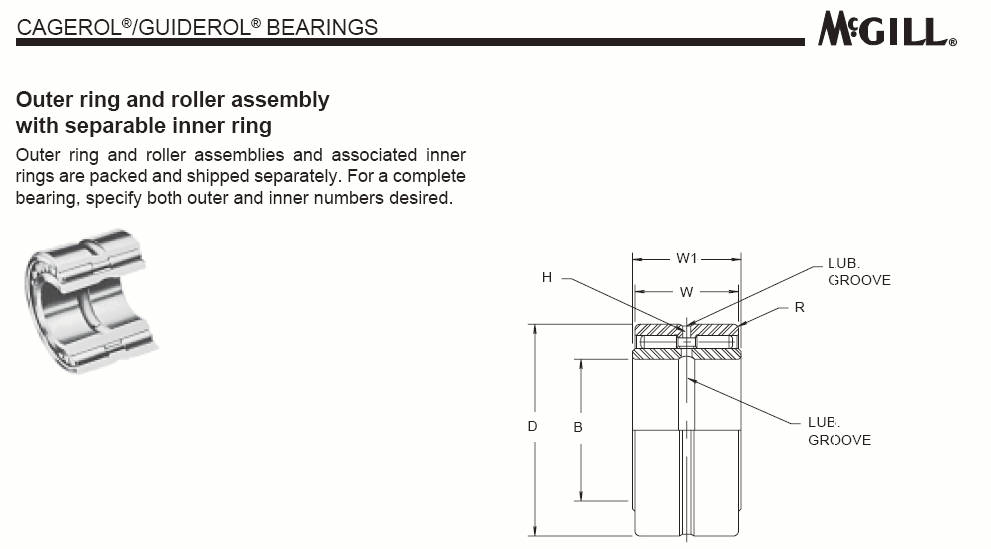

McGILL NUMBER
outer ring
& roller assy. |
McGILL NUMBER
inner ring only |
ABMA NUMBER |
B |
D |
W |
W1 |
H |
R |
SHAFT DIA. |
HSG. BORE DIA. |
STATIC LOAD RATING (LBS.) |
BASIC DYNAMIC RATING (LBS.) |
|
+.0000 |
TOL. |
+.0000 |
TOL. |
+.00-
0
-.005 |
+.00-
0
-.005 |
HOLE DIA. |
MAX. FILLET
for shaft
& hsg. |
ROTAT. SHAFT |
TOL.
+.000-
0 |
STAT. SHAF- T |
TOL.
+.0000 |
ROTAT. HSG. |
TOL.
+.0000 |
STAT. HSG. |
TOL.
+.0000 |
|
GR-10-N |
MI-6-N |
6NAS1218
7NAS1218
6NAS1618 |
.3750
.4375
.3750 |
-.0004 |
1.1250
1.1250
1.1250 |
-.0005 |
.750
.750
1.000 |
.760
.760
1.010 |
5/64
5/64
5/64 |
.025
.025
.025 |
.3755
.4380
.3755 |
-.0005 |
.3747
.4372
.3747 |
-.0005 |
1.1247
1.1247
1.1247 |
-.0007 |
1.1257
1.1257
1.1257 |
-.0007 |
6400
6400
9100 |
3400
3400
4700 |
|
GR-10-N |
MI-7-N |
|
GR-10 |
MI-6 |
|
GR-12-N |
MI-8-N |
8NAS1220
9NAS1220
8NAS1620 |
.5000
.5625
.5000 |
1.2500
1.2500
1.2500 |
.750
.750
1.000 |
.760
.760
1.010 |
5/64
5/64
5/64 |
.040
.040
.040 |
.5005
.5630
.5005 |
.4997
.5623
.4997 |
1.2497
1.2497
1.2497 |
1.2507
1.2507
1.2507 |
7200
7200
10900 |
3700
3700
5100 |
|
GR-12-N |
MI-9-N |
|
GR-12 |
MI-8 |
|
GR-14-N |
MI-10-N |
10NAS1222
11NAS1222
10NAS1622 |
.6250
.6875
.6250 |
1.3750
1.3750
1.3750 |
.750
.750
1.000 |
.760
.760
1.010 |
5/64
5/64
5/64 |
.040
.040
.040 |
.6255
.6880
.6255 |
.6247
.6872
.6247 |
1.3747
1.3747
1.3747 |
1.3757
1.3757
1.3757 |
8400
8400
12800 |
4150
4150
5700 |
|
GR-14-N |
MI-11-N |
|
GR-14 |
MI-10 |
|
GR-16-N |
MI-12-N |
12NAS1224
12NAS1624
13NAS1624 |
.7500
.8125
.7500
.8125 |
1.5000
1.5000
1.5000
1.5000 |
.750
.750
1.000
1.000 |
.760
.760
1.010
1.010 |
5/64
5/64
5/64
5/64 |
.040
.040
.040
.040 |
.7505
.8129
.7505
.8129 |
.7497
.8121
.7497
.8121 |
1.4997
1.4997
1.4997
1.4997 |
1.5007
1.5007
1.5007
1.5007 |
9600
9600
14500
14500 |
4350
4350
6050
6050 |
|
GR-16-N |
MI-13-N |
-.0005 |
|
GR-16 |
MI-12 |
|
GR-16 |
MI-13 |
|
GR-18-N |
MI-14-N |
14NAS1626
15NAS1626
14NAS2026
15NAS2026 |
.8750
.9375
.8750
.9375 |
1.6250
1.6250
1.6250
1.6250 |
1.000
1.000
1.250
1.250 |
1.010
1.010
1.260
1.260 |
3/32
3/32
3/32
3/32 |
.040
.040
.040
.040 |
.8754
.9379
.8754
.9379 |
.8746
.9371
.8746
.9371 |
1.6247
1.6247
1.6247
1.6247 |
1.6257
1.6257
1.6257
1.6257 |
15200
15200
20900
20900 |
6250
6250
7900
7900 |
|
GR-18-N |
MI-15-N |
|
GR-18 |
MI-14 |
|
GR-18 |
MI-15 |
|
GR-20-N |
MI-16-N |
16NAS1628
16NAS2028 |
1.0000
1.0000 |
1.7500
1.7500 |
1.000
1.250 |
1.010
1.260 |
3/32
3/32 |
.040
.040 |
1.0004
1.0004 |
.9996
.9996 |
1.7497
1.7497 |
1.7507
1.7507 |
17000
23100 |
6500
8300 |
|
GR-20 |
MI-16 |
|
GR-22-N |
MI-18-N |
18NAS1630
17NAS2030
18NAS2030 |
1.1250
1.0625
1.1250 |
1.8750
1.8750
1.8750 |
1.000
1.250
1.250 |
1.010
1.260
1.260 |
3/32
3/32
3/32 |
.040
.040
.040 |
1.1255
1.0630
1.1255 |
1.1246
1.0621
1.1246 |
1.8747
1.8747
1.8747 |
1.8757
1.8757
1.8757 |
18600
25500
25500 |
7100
9050
9050 |
|
GR-22 |
MI-17 |
|
GR-22 |
MI-18 |
|
GR-24-N |
MI-20-N |
20NAS1633
19NAS2033
20NAS2033 |
1.2500
1.1875
1.2500 |
2.0625
2.0625
2.0625 |
-.0006 |
1.000
1.250
1.250 |
1.010
1.260
1.260 |
3/32
3/32
3/32 |
.060
.060
.060 |
1.2505
1.1880
1.2505 |
1.2496
1.1871
1.2496 |
2.0621
2.0621
2.0621 |
2.0632
2.0632
2.0632 |
20200
27800
27800 |
7150
9150
9150 |
|
GR-24 |
MI-19 |
|
GR-24 |
MI-20 |
|
GR-26-N |
MI-21-N |
21NAS1635
21NAS2035
21NAS2035 |
1.3125
1.3125
1.3750 |
2.1875
2.1875
2.1875 |
1.000
1.250
1.250 |
1.010
1.260
1.260 |
3/32
3/32
3/32 |
.060
.060
.060 |
1.3130
1.3130
1.3755 |
1.3121
1.3121
1.3746 |
2.1871
2.1871
2.1871 |
2.1882
2.1882
2.1882 |
21700
29800
29800 |
7500
9600
9600 |
|
GR-26 |
MI-21 |
|
GR-26 |
MI-22-4S |
|
GR-28 |
MI-22 |
22NAS2037
23NAS2037
24NAS2037 |
1.3750
1.4375
1.5000 |
2.3125
2.3125
2.3125 |
1.250
1.250
1.250 |
1.260
1.260
1.260 |
3/32
3/32
3/32 |
.060
.060
.060 |
1.3755
1.4380
1.5005 |
1.3746
1.4371
1.4996 |
2.3121
2.3121
2.3121 |
2.3132
2.3132
2.3132 |
32100
32100
32100 |
9850
9850
9850 |
|
GR-28 |
MI-23 |
|
GR-28 |
MI-24 | |
