| MS 51961-2、MR-16-N、MR-18N |
|
上海川代轴承机械有限公司 新闻动态 2026-6-12
|
|
|
|

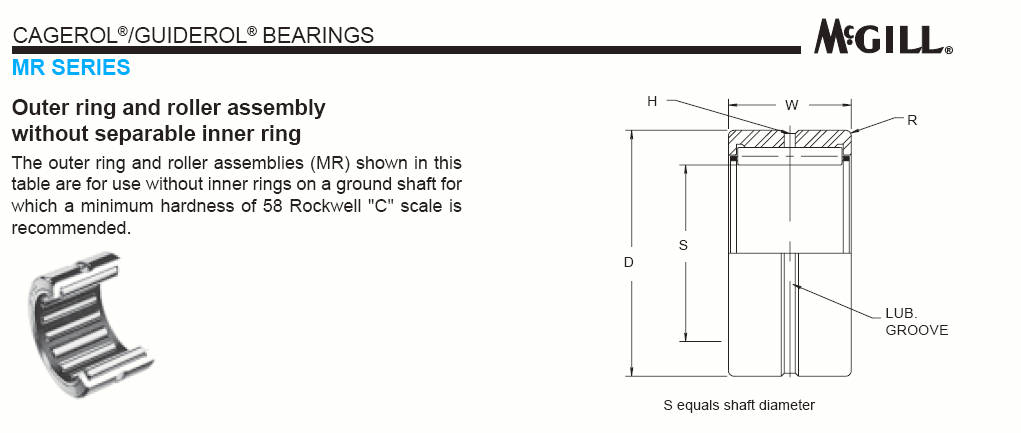

McGILL NUMBER
outer ring
& roller assy. |
MILITARY STANDARD NUMBER |
S SHAFT DIA. |
D |
W |
H |
R |
HSG. BORE DIA. |
STATIC LOAD RATING (LBS.) |
BASIC DYNAMIC RATING (LBS.) |
|
+.0000 |
TOL. |
+.0000 |
TOL. |
+.000
-.005 |
HOLE DIA. |
MAX.
FILLET FOR HOUSING |
ROTATING HOUSING |
TOL.
+.000-
0 |
STATIONARY HOUSING |
TOL.
+.000-
0 |
|
MR-10-N |
MS 51961-1 |
.6250 |
-.0005 |
1.1250 |
-.0005 |
.750
1.000 |
5/64 |
.025 |
1.1247 |
-.0007 |
1.1257 |
-.0007 |
4300
6500 |
4320
5930 |
|
MR-10 |
|
MR-12-N |
MS 51961-2
MS 51961-3 |
.7500 |
1.2500 |
.750
1.000 |
5/64 |
.040 |
1.2497 |
1.2507 |
5400
8100 |
4990
6830 |
|
MR-12 |
|
MR-14-N |
MS 51961-5 |
.8750 |
1.3750 |
.750
1.000 |
5/64 |
.040 |
1.3747 |
1.3757 |
6000
9000 |
5280
7240 |
|
MR-14 |
MS 51961-6 |
|
MR-16-N |
MS 51961-8 |
1.0000 |
1.5000 |
.750
1.000 |
5/64 |
.040 |
1.4997 |
1.5007 |
7100
10600 |
5840
8000 |
|
MR-16 |
MS 51961-9 |
|
MR-18N |
MS 51961-11 |
1.1250 |
1.6250 |
1.000
1.250 |
3/32 |
.040 |
1.6247 |
1.6257 |
12200
16300 |
8720
10900 |
|
MR-18 |
MS 51961-12 |
|
MR-20-N |
MS 51961-14 |
1.2500 |
1.7500 |
1.000
1.250 |
3/32 |
.040 |
1.7497 |
1.7507 |
13100
17500 |
9020
11300 |
|
MR-20 |
MS 51961-15 |
|
MR-22-N |
MS 51961-18 |
1.3750 |
1.8750 |
-.0006 |
1.000
1.250 |
3/32 |
.040 |
1.8747 |
1.8757 |
14700
19700 |
9640
12100 |
|
MR-22 |
MS 51961-19 |
|
MR-24-N |
MS 51961-21 |
1.5000 |
2.0625 |
1.000
1.250 |
3/32 |
.060 |
2.0621 |
2.0632 |
15500
20800 |
10300
13000 |
|
MR-24 |
MS 51961-22 |
|
MR-26-N |
MS 51961-24 |
1.6250 |
2.1875 |
1.000
1.250 |
3/32 |
.060 |
2.1871 |
2.1882 |
16400
22100 |
10600
13300 |
|
MR-26 |
MS 51961-25 |
|
MR-28-N |
MS 51961-27 |
1.7500 |
2.3125 |
1.000
1.250 |
3/32 |
.060 |
2.3121 |
2.3132 |
18100
24400 |
11200
14100 |
|
MR-28 |
MS 51961-28 |
|
MR-30-N |
MS 51961-29 |
1.8750 |
2.4375 |
1.000
1.250 |
3/32 |
.060 |
2.4371 |
2.4382 |
19000
25600 |
11400
14400 |
|
MR-30 |
|
MR-31 |
|
1.9375 |
2.5000 |
1.250 |
3/32 |
.060 |
2.4996 |
2.5007 |
22400 |
12400 |
|
MR-32-N |
|
2.0000 |
2.5625 |
1.000
1.250 |
3/32 |
.060 |
2.5621 |
2.5632 |
20700
27900 |
12000
15200 |
|
MR-32 |
MS 51961-30 |
|
MR-36-N |
MS 51961-31
MS 51961-32 |
2.2500 |
3.0000 |
1.500
1.750 |
1/8 |
.060 |
2.9996 |
3.0007 |
39100
47400 |
22400
26000 |
|
MR-36 |
|
MR-40-N |
MS 51961-33 |
2.5000 |
3.2500 |
1.500
1.750 |
1/8 |
.080 |
3.2496 |
3.2507 |
42900
52100 |
23400
27200 |
|
MR-40 |
MS 51961-34 |
|
MR-44-N |
MS 51961-35 |
2.7500 |
3.5000 |
-.0008 |
1.500
1.750 |
1/8 |
.080 |
3.4995 |
-.0010 |
3.5008 |
-.0010 |
46700
56700 |
24500
28400 |
|
MR-44 |
MS 51961-36 |
|
MR-48-N |
1961-37
MS 51961-38 |
3.0000 |
3.7500 |
1.500
1.750 |
1/8 |
.080 |
3.7495 |
3.7508 |
52300
63400 |
26100
30300 |
|
MR-48 |
|
MR-52 |
MS 51961-39 |
3.2500 |
4.2500 |
1.750 |
3/16 |
.080 |
4.2495 |
4.2508 |
64400 |
29900 |
|
MR-56-N |
MS 51961-41 |
3.5000 |
4.5000 |
1.750
2.000 |
3/16 |
.080 |
4.4995 |
4.5008 |
71600
83500 |
31300
35900 |
|
MR-56 |
MS 51961-42 |
|
MR-60 |
MS 51961-43 |
3.7500 |
4.7500 |
2.000 |
3/16 |
.100 |
4.7495 |
4.7508 |
87100 |
36500 |
|
MR-64 |
MS 51961-45 |
4.0000 |
-.0007 |
5.0000 |
-.0010 |
2.000 |
3/16 |
.100 |
4.9999 |
-.0015 |
5.0011 |
-.0015 |
93800 |
38000 |
|
MR-68 |
MS 51961-46 |
4.2500 |
5.2500 |
2.000 |
3/16 |
.100 |
5.2499 |
5.2511 |
101000 |
39500 |
|
MR-72 |
MS 51961-48 |
4.5000 |
6.0000 |
2.250 |
3/16 |
.100 |
5.9999 |
6.0011 |
130000 |
60300 |
|
MR-80 |
|
5.0000 |
6.5000 |
2.250 |
3/16 |
.100 |
6.4999 |
6.5011 |
148000 |
64600 |
|
MR-88-N |
MS 51961-52 |
5.5000 |
7.0000 |
2.500
3.000 |
3/16 |
.100 |
6.9999 |
7.0011 |
169800
222000 |
70200
85700 |
|
MR-88 |
MS 51961-53 |
|
MR-96-N |
MS 51961-55 |
6.0000 |
-.0010 |
7.5000 |
-.0012 |
2.500
3.000 |
1/4 |
.120 |
7.4998 |
7.5011 |
177000
228000 |
71000
86600 |
|
MR-96 |
MS 51961-56 |
|
MR-104-N |
MS 51961-57 |
6.5000 |
8.0000 |
2.500
3.000 |
1/4 |
.120 |
7.9998 |
8.0011 |
183000
237000 |
71700
87500 |
|
MR-104 |
MS 51961-58 |
|
MR-116 |
MS 51961-59 |
7.2500 |
9.1250 |
3.000 |
1/4 |
.120 |
9.1248 |
9.1261 |
234000 |
95200 |
|
MR-124 |
|
7.7500 |
9.6250 |
3.000 |
1/4 |
.120 |
9.6250 |
-.0020 |
9.6265 |
-.0020 |
252000 |
99100 |
|
MR-132 |
|
8.2500 |
10.1250 |
3.000 |
1/4 |
.120 |
10.1250 |
10.1265 |
270000 |
103000 |
|
MR-140 |
|
8.7500 |
10.6250 |
-.0014 |
3.000 |
1/4 |
.160 |
10.6250 |
10.6265 |
280000 |
104000 |
|
MR-148 |
|
9.2500 |
11.1250 |
3.000 |
1/4 |
.160 |
11.1250 |
11.1265 |
292000 |
108000 | |
MS 51961-2、MR-16-N、MR-18N现货供应，如有需要请及时联系我们。上海川代轴承机械有限公司同时销售
