| BCF-9/16-S、BCF-7/8-S、BCF-1 1/2-S |
|
上海川代轴承机械有限公司 新闻动态 2025-7-29
|
|
|
|

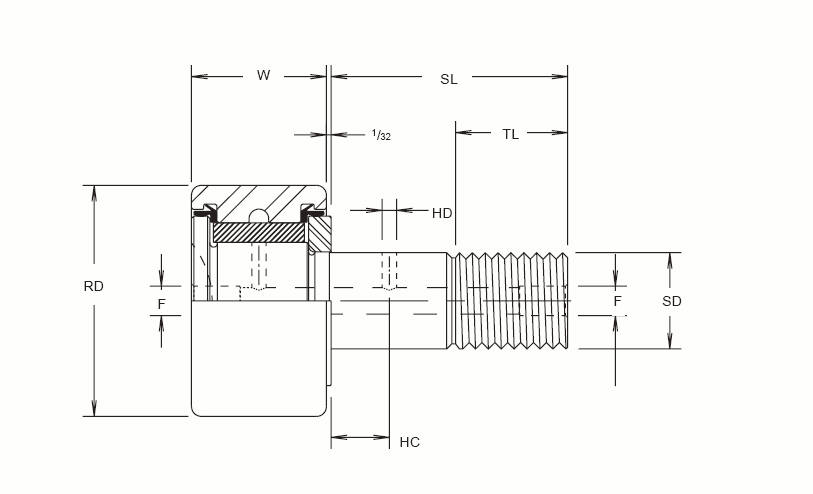

BRG. NO. |
ROLLER DIA. (RD)
+.000
-.001 |
ROLLER WIDTH (W)
+.000
-.005 |
STUD DIA. (SD)
+.001
-.000 |
STUD L’GTH.
(SL) |
MIN. THR’D.
L’GTH.
(TL) |
FINE THR’DS. |
OIL HOLE |
LUB. FIT- TING SIZE
(F)* |
MIN. BOSS DIA. |
HOUSING BORE DIA.
+.0002
-.0003 |
**RECOM. CLAMPING TORQUE LBS.-
IN. |
|
HOLE CENTER (HC) |
HOLE DIA. (HD) |
|
BCF-1/2-S |
.500 |
.375 |
.190 |
5/8 |
1/4 |
10-32 |
- |
- |
1/8* |
19/64 |
.1903 |
15 |
|
BCF-9/16-S |
.5625 |
.375 |
.190 |
5/8 |
1/4 |
10-32 |
- |
- |
1/8* |
19/64 |
.1903 |
15 |
|
BCF-5/8-S |
.625 |
.4375 |
.250 |
3/4 |
5/16 |
1/4-28 |
- |
- |
1/8* |
23/64 |
.2503 |
35 |
|
BCF-11/16-S |
.6875 |
.4375 |
.250 |
3/4 |
5/16 |
1/4-28 |
- |
- |
1/8* |
23/64 |
.2503 |
35 |
|
BCF-3/4-S |
.750 |
.500 |
.375 |
7/8 |
3/8 |
3/8-24 |
1/4 |
3/32 |
3/16 |
1/2 |
.3753 |
95 |
|
BCF-7/8-S |
.875 |
.500 |
.375 |
7/8 |
3/8 |
3/8-24 |
1/4 |
3/32 |
3/16 |
1/2 |
.3753 |
95 |
|
BCF-1-S |
1.000 |
.625 |
.4375 |
1 |
1/2 |
7/16-20 |
1/4 |
3/32 |
3/16 |
41/64 |
.4378 |
250 |
|
BCF-1 1/8-S |
1.125 |
.625 |
.4375 |
1 |
1/2 |
7/16-20 |
1/4 |
3/32 |
3/16 |
41/64 |
.4378 |
250 |
|
BCF-1 1/4-S |
1.250 |
.750 |
.500 |
1 1/4 |
5/8 |
1/2-20 |
5/16 |
3/32 |
3/16 |
49/64 |
.5003 |
350 |
|
BCF-1 3/8-S |
1.375 |
.750 |
.500 |
1 1/4 |
5/8 |
1/2-20 |
5/16 |
3/32 |
3/16 |
49/64 |
.5003 |
350 |
|
BCF-1 1/2-S |
1.500 |
.875 |
.625 |
1 1/2 |
3/4 |
5/8-18 |
3/8 |
3/32 |
3/16 |
57/64 |
.6253 |
650 |
|
BCF-1 5/8-S |
1.625 |
.875 |
.625 |
1 1/2 |
3/4 |
5/8-18 |
3/8 |
3/32 |
3/16 |
57/64 |
.6253 |
650 |
|
BCF-1 3/4-S |
1.750 |
1.000 |
.750 |
1 3/4 |
7/8 |
3/4-16 |
7/16 |
3/32 |
3/16 |
1 3/64 |
.7503 |
1250 |
|
BCF-1 7/8-S |
1.875 |
1.000 |
.750 |
1 3/4 |
7/8 |
3/4-16 |
7/16 |
3/32 |
3/16 |
1 3/64 |
.7503 |
1250 |
|
BCF-2-S |
2.000 |
1.250 |
.875 |
2 |
1 |
7/8-14 |
1/2 |
1/8 |
3/16 |
1 13/64 |
.8753 |
1500 |
|
BCF-2 1/4-S |
2.250 |
1.250 |
.875 |
2 |
1 |
7/8-14 |
1/2 |
1/8 |
3/16 |
1 13/64 |
.8753 |
1500 |
|
BCF-2 1/2-S |
2.500 |
1.500 |
1.000 |
2 1/4 |
1 1/8 |
1-14 |
9/16 |
1/8 |
3/16 |
1 5/16 |
1.0003 |
2250 |
|
BCF-2 3/4-S |
2.750 |
1.500 |
1.000 |
2 1/4 |
1 1/8 |
1-14 |
9/16 |
1/8 |
3/16 |
1 5/16 |
1.0003 |
2250 |
|
BCF-3-S |
3.000 |
1.750 |
1.250 |
2 1/2 |
1 1/4 |
1 1/4-12 |
5/8 |
1/8 |
1/4 |
1 3/4 |
1.2503 |
3450 |
|
BCF-3 1/4-S |
3.250 |
1.750 |
1.250 |
2 1/2 |
1 1/4 |
1 1/4-12 |
5/8 |
1/8 |
1/4 |
1 3/4 |
1.2503 |
3450 |
|
BCF-3 1/2-S |
3.500 |
2.000 |
1.375 |
2 3/4 |
1 3/8 |
1 3/8-12 |
11/16 |
1/8 |
1/4 |
1 59/64 |
1.3753 |
4200 |
|
BCF-4-S |
4.000 |
2.250 |
1.500 |
3 1/2 |
1 1/2 |
1 1/2-12 |
3/4 |
1/8 |
1/4 |
2 9/32 |
1.5003 |
5000 | |
BCF-9/16-S、BCF-7/8-S、BCF-1 1/2-S现货供应，如有需要请及时联系我们。上海川代轴承机械有限公司同时销售
23224CAME4,
HCS71903E.T.P4S.UL,
6312M,
NK37/30A,
RNAO30X42X16,
51226,
P-U324 1 1/4,
BSPB300QBHP3?,
NPG-18-9,
FG3062EEMM,
HMVC10,
SEA20/NS7LI03TDL,
SEA140/NS9XI0DDL,
128200 EC-203-P,
RL438,
UCFL212,
KT586420-C3,
210-L,
NK17/20,
PHR-2 1/2,
FC3Y219N,
G18X24X3,
HH221410,
RR15/16,
2308U轴径3.5(in),
7305CTDULP4,
SB22208W33SS,
3210AV密封盖,
A49机器皮带,
AFW12,
以上为我司部分轴承型号，如需查找其他型号，可登陆我们的现货中心栏目或致电021-52797858转8008进行详细查询，谢谢！
