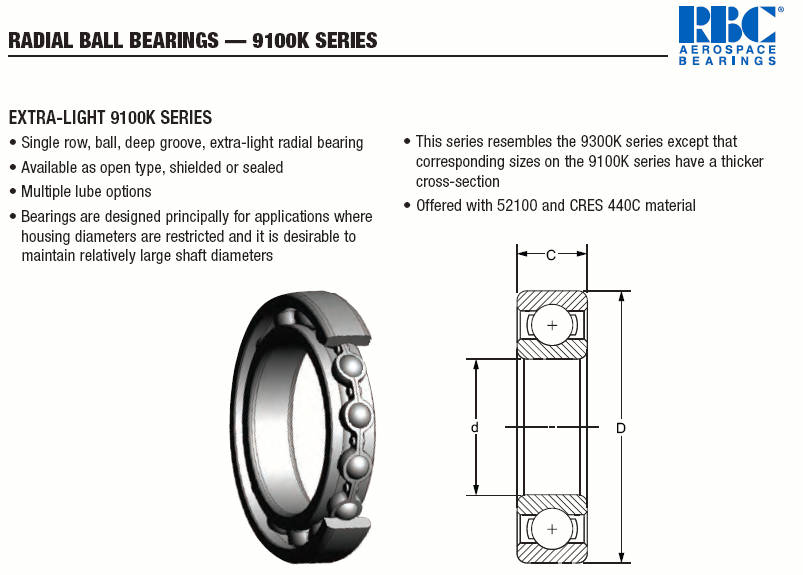

| 9100K、9107K、9111K、9114K |
|
上海川代轴承机械有限公司 新闻动态 2025-10-23
|
|
|
|
Bearing Number |
Bore d
in. mm |
tolerance
+0.000 +0.000
to minus
in. mm |
Outside Diameter D
in. mm |
tolerance
+0.000 +0.000
to minus
in. mm |
Width C
in. mm |
tolerance
+0.000 +0.000
to minus
in. mm |
Fillet Radius (1)
in. mm |
Wt
lbs. |
.
kg |
Static Load Rating
CO
lbs. N |
Dynamic Load Rating
CR
lbs. N |
|
9100K |
0.3937 |
10 |
0.0003 |
0.008 |
1.0236 |
26 |
0.00035 |
0.009 |
0.3150 |
8 |
0.005 |
0.12 |
0.012 0.3 |
0.03 |
0.014 |
440 |
1970 |
1030 |
4580 |
|
9101K |
0.4724 |
12 |
0.0003 |
0.008 |
1.1024 |
28 |
0.00035 |
0.009 |
0.3150 |
8 |
0.005 |
0.12 |
0.012 0.3 |
0.04 |
0.018 |
540 |
2390 |
1150 |
5120 |
|
9102K |
0.5906 |
15 |
0.0003 |
0.008 |
1.2598 |
32 |
0.00045 |
0.011 |
0.3543 |
9 |
0.005 |
0.12 |
0.012 0.3 |
0.06 |
0.027 |
640 |
2840 |
1260 |
5590 |
|
9103K |
0.6693 |
17 |
0.0003 |
0.008 |
1.3780 |
35 |
0.00045 |
0.011 |
0.3937 |
10 |
0.005 |
0.12 |
0.012 0.3 |
0.09 |
0.041 |
730 |
3250 |
1350 |
6000 |
|
9104K |
0.7874 |
20 |
0.0004 |
0.010 |
1.6535 |
42 |
0.00045 |
0.011 |
0.4724 |
12 |
0.005 |
0.12 |
0.024 0.6 |
0.16 |
0.073 |
1130 |
5030 |
2110 |
9380 |
|
9105K |
0.9843 |
25 |
0.0004 |
0.010 |
1.8504 |
47 |
0.00045 |
0.011 |
0.4724 |
12 |
0.005 |
0.12 |
0.024 0.6 |
0.17 |
0.077 |
1320 |
5850 |
2260 |
10100 |
|
9106K |
1.1811 |
30 |
0.0004 |
0.010 |
2.1654 |
55 |
0.0005 |
0.013 |
0.5118 |
13 |
0.005 |
0.12 |
0.039 1.0 |
0.26 |
0.118 |
1870 |
8300 |
2970 |
13200 |
|
9107K |
1.3780 |
35 |
0.00045 |
0.012 |
2.4409 |
62 |
0.0005 |
0.013 |
0.5512 |
14 |
0.005 |
0.12 |
0.039 1.0 |
0.32 |
0.145 |
2310 |
10300 |
3590 |
16000 |
|
9108K |
1.5748 |
40 |
0.00045 |
0.012 |
2.6772 |
68 |
0.0005 |
0.013 |
0.5906 |
15 |
0.005 |
0.12 |
0.039 1.0 |
0.43 |
0.195 |
2810 |
12500 |
3980 |
17700 |
|
9109K |
1.7717 |
45 |
0.00045 |
0.012 |
2.9528 |
75 |
0.0005 |
0.013 |
0.6299 |
16 |
0.005 |
0.12 |
0.039 1.0 |
0.55 |
0.249 |
3410 |
15200 |
4720 |
21000 |
|
9110K |
1.9685 |
50 |
0.00045 |
0.012 |
3.1496 |
80 |
0.0005 |
0.013 |
0.6299 |
16 |
0.005 |
0.12 |
0.039 1.0 |
0.60 |
0.272 |
3720 |
16600 |
4910 |
21800 |
|
9111K |
2.1654 |
55 |
0.0006 |
0.015 |
3.5433 |
90 |
0.0006 |
0.015 |
0.7087 |
18 |
0.006 |
0.15 |
0.039 1.0 |
0.86 |
0.390 |
4780 |
21300 |
6360 |
28300 |
|
9112K |
2.3622 |
60 |
0.0006 |
0.015 |
3.7402 |
95 |
0.0006 |
0.015 |
0.7087 |
18 |
0.006 |
0.15 |
0.039 1.0 |
0.92 |
0.417 |
5210 |
23200 |
6620 |
29400 |
|
9113K |
2.5591 |
65 |
0.0006 |
0.015 |
3.9370 |
100 |
0.0006 |
0.015 |
0.7087 |
18 |
0.006 |
0.15 |
0.039 1.0 |
0.98 |
0.445 |
5650 |
25200 |
6870 |
30500 |
|
9114K |
2.7559 |
70 |
0.0006 |
0.015 |
4.3307 |
110 |
0.0006 |
0.015 |
0.7874 |
20 |
0.006 |
0.15 |
0.039 1.0 |
1.39 |
0.630 |
6940 |
30900 |
8550 |
38100 |
|
9115K |
2.9528 |
75 |
0.0006 |
0.015 |
4.5276 |
115 |
0.0006 |
0.015 |
0.7874 |
20 |
0.006 |
0.15 |
0.039 1.0 |
1.50 |
0.680 |
7520 |
33500 |
8890 |
39500 |
|
9116K |
3.1496 |
80 |
0.0006 |
0.015 |
4.9213 |
125 |
0.0007 |
0.018 |
0.8661 |
22 |
0.006 |
0.15 |
0.039 1.0 |
1.95 |
0.885 |
8920 |
39700 |
10700 |
47600 |
|
9117K |
3.3465 |
85 |
0.0008 |
0.020 |
5.1181 |
130 |
0.0007 |
0.018 |
0.8661 |
22 |
0.008 |
0.20 |
0.039 1.0 |
2.13 |
0.966 |
9660 |
43000 |
11100 |
49500 |
|
9118K |
3.5433 |
90 |
0.0008 |
0.020 |
5.5118 |
140 |
0.0007 |
0.018 |
0.9449 |
24 |
0.008 |
0.20 |
0.059 1.5 |
2.55 |
1.157 |
11200 |
49600 |
13100 |
58200 |
|
9120K |
3.9370 |
100 |
0.0008 |
0.020 |
5.9055 |
150 |
0.0007 |
0.018 |
0.9449 |
24 |
0.008 |
0.20 |
0.059 1.5 |
2.90 |
1.315 |
12200 |
54200 |
13500 |
60100 | |
